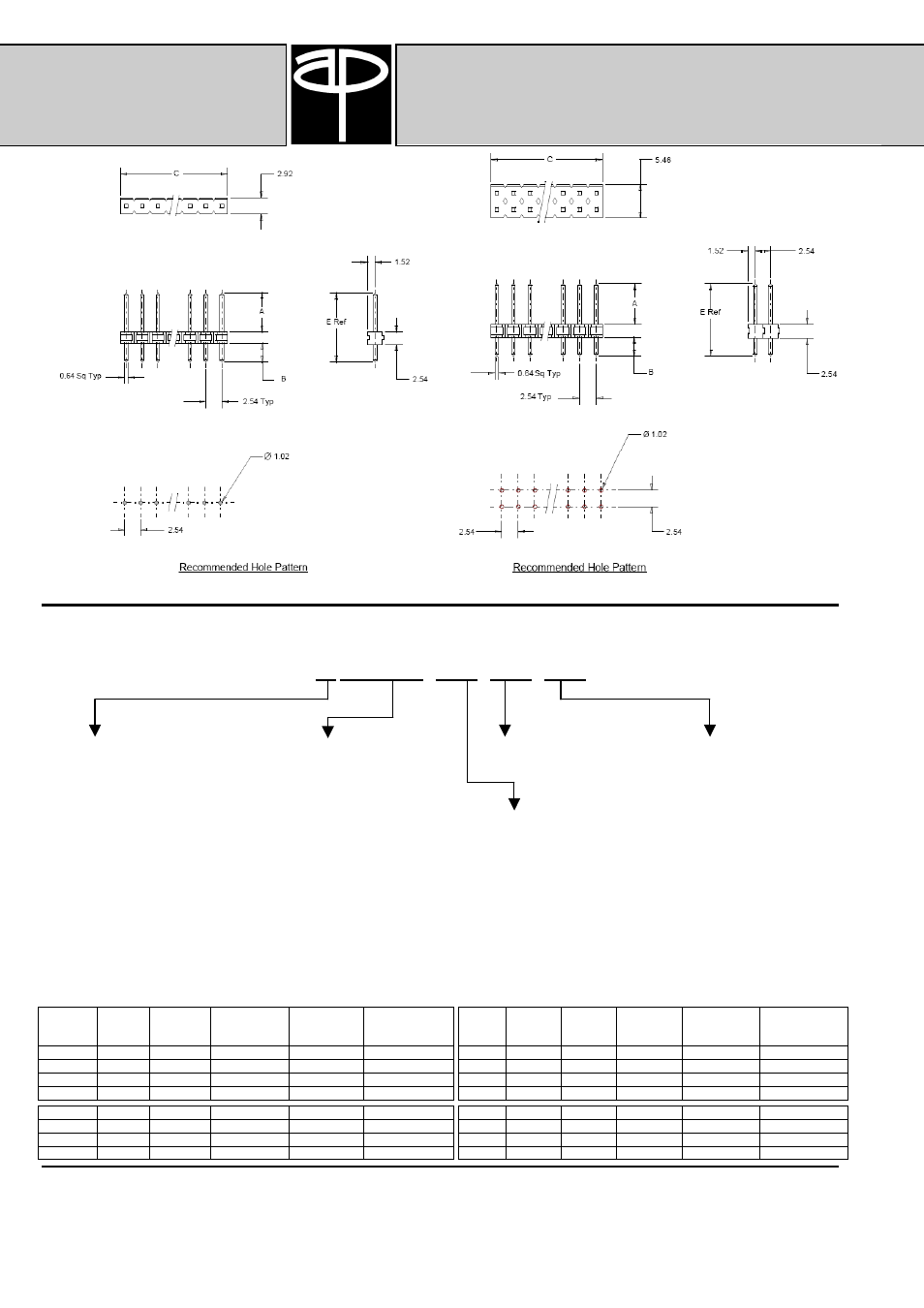

A P Products GmbH 2,54 mm Male Headers
Board Stack
Ordering Information
9x xxxx-xx-xx-xx
Product Option:
Pin Length Identifier Contact Quantity per Row Plating Suffix
2 = Standard Product Please see table below 1 to 36 none = Standard Product
without Kinked Tail 10 = 0,25 µm sel. Au Plating
SnPb30 Solder Tails
R = Standard Product 15 = 0,25 µm sel. Au Plating
with Kinked Tail as Pin Length Identifier with Sn100 Solder Tails
Board Retention Feature Please see table below 20 = 0,50 µm sel. Au Plating
SnPb30 Solder Tails
3 = High Temperature Product 25 = 0,76 µm sel. Au Plating
without Kinked Tail with Sn100 Solder Tails
30 = 0,76 µm sel. Au Plating
K = High Temperature Product SnPb30 Solder Tails
with Kinked Tail as 35 = 0,76 µm sel. Au Plating
Board Retention Feature Sn100 Solder Tails
50 = Sn100 Solder Plating
Pin Length Identifier Table (Tin Plating):
Pin Length Identifier Table (Gold Plating):
Number
of Rows
Mating
Length
Code
Pin
Length
Identifier
Dimension
A
(Interface)
Dimension
B
(Solder Tail)
Dimension
E
(Total Length)
Number
of Rows
Mating
Length
Code
Pin
Length
Identifier
Dimension
A
(Interface)
Dimension
B
(Solder Tail)
Dimension
E
(Total Length)
1 Row 10 3,18 mm 2,80 mm 8,52 mm 1 Row 4717 10 3,18 mm 2,80 mm 8,52 mm
1 Row 01 10,87 mm 2,54 mm 15,95 mm 1 Row 6141 01 10,87 mm 2,54 mm 15,95 mm
1 Row 01 13,84 mm 2,54 mm 18,92 mm 1 Row 6381 01 13,84 mm 2,54 mm 18,92 mm
1 Row 28 5,97 mm 20,14 mm 28,65 mm 1 Row 4517 28 5,97 mm 20,14 mm 28,65 mm
2 Row 10 3,18 mm 2,80 mm 8,52 mm 2 Row 4727 10 3,18 mm 2,80 mm 8,52 mm
2 Row 01 10,87 mm 2,54 mm 15,95 mm 2 Row 6142 01 10,87 mm 2,54 mm 15,95 mm
2 Row 01 13,84 mm 2,54 mm 18,92 mm 2 Row 6382 01 13,84 mm 2,54 mm 18,92 mm
2 Row 28 5,97 mm 20,14 mm 28,65 mm 2 Row 4527 28 5,97 mm 20,14 mm 28,65 mm
Engineering Note:
The information presented in this
datasheet is accurate to the best of
our knowledge.
Due to ongoing efforts to advance
design and material performance,
this information is subject to change
without notice.
