35 MICRO-LINE Reference Manual
Keypad

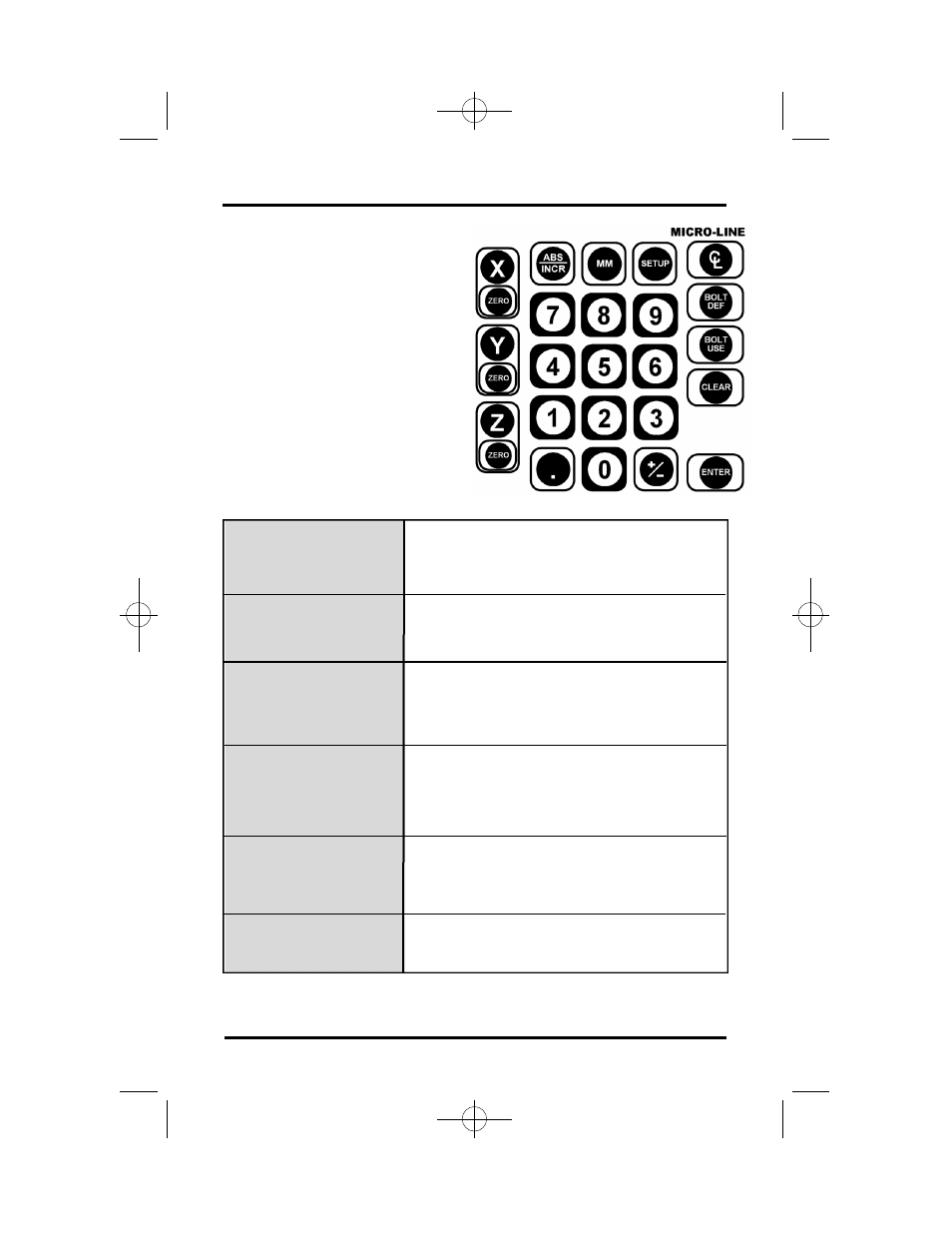

Here’s an overview of the MICRO-
LINE keypad. Each key’s function
is described below.
ABS/INCR
Used to switch between absolute (ABS) and
incremental (INCR) measurements. The active
mode will be displayed at the top of the DRO
display.
C/L (CENTERLINE) Locates the centerline of the workpiece
(pg. 19).
MM
Press this key to switch X, Y & Z displays
between English and metric units.
X, Y, Z
ZERO
Correspond with the scales on the X-, Y-, and
Z-axes. Used to specify a change to a particular
axis.
Three keys reset the incremental or absolute
display position at “0” for the corresponding
axis.
SETUP Provides access to the display resolution, linear
error compensation, scale resolution, and scale
count direction operations.
REFERENCE
