Pc 5150, Pc 5172, Inch touch panel pc – Acnodes PC 5172 User Manual
Page 40: Inch sunlight readable touch panel pc
© Copyright 2009 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at
PC 5150
15-inch touch panel PC
40
PC 5172
17-inch sunlight readable touch panel PC
661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: 909.598.7388, fax: 909.598.0218,
Figure 4-10: CD Drive Retention Screws

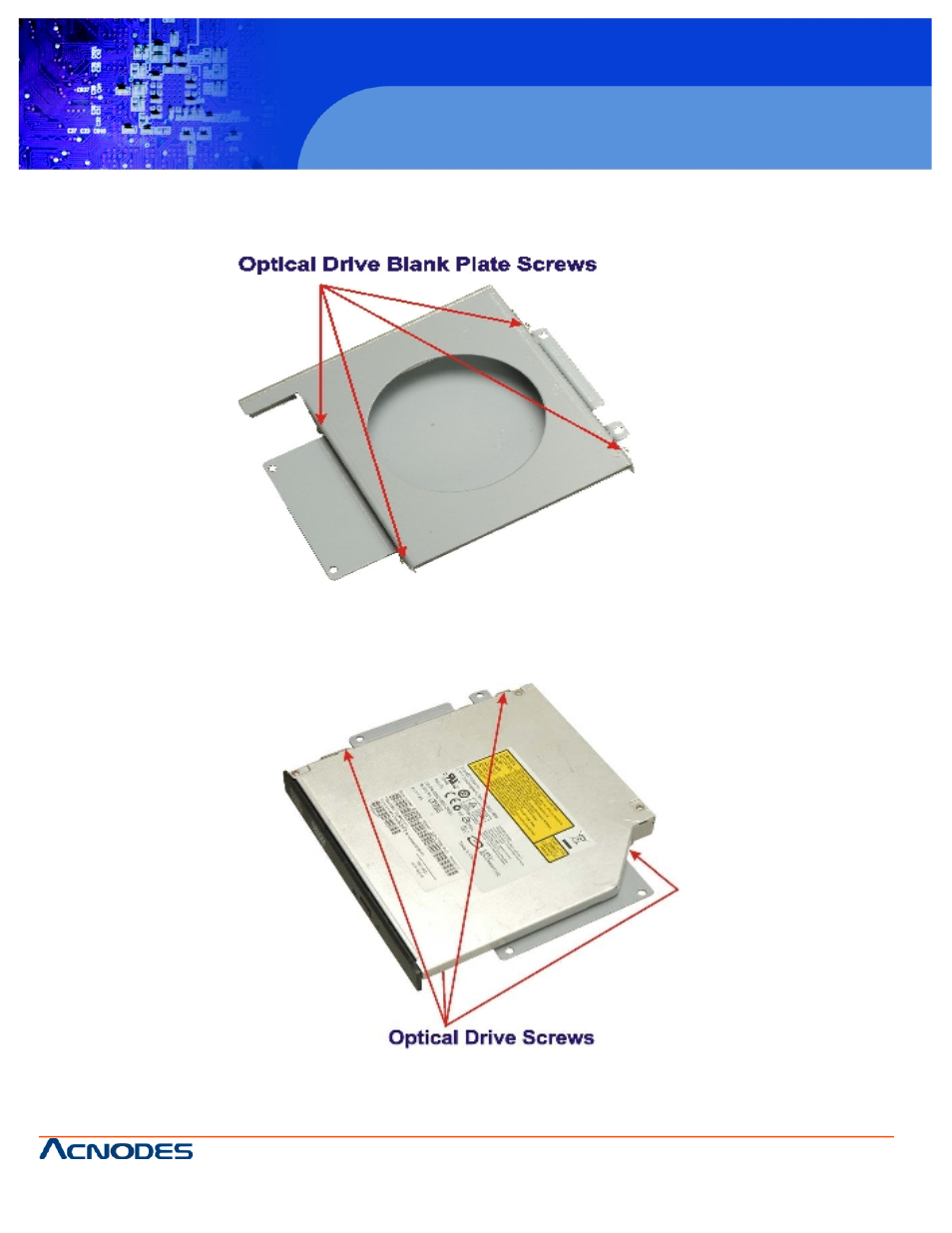

Step 6: Remove the four screws from the optical drive bracket assembly. Remove the blank drive plate.
Figure 4-11: Optical Drive Blank Plate Assembly
Step 7: Install the optical drive in the same position as the previously removed blank optical drive plate. Fasten the same
four screws to attach the optical drive to the bracket.
Figure 4-12: Optical Drive Screws
Step 8: Attach the SATA cable to the back of the optical drive and fasten the SATA cable screws.
