PC 5172
17-inch sunlight readable touch panel PC

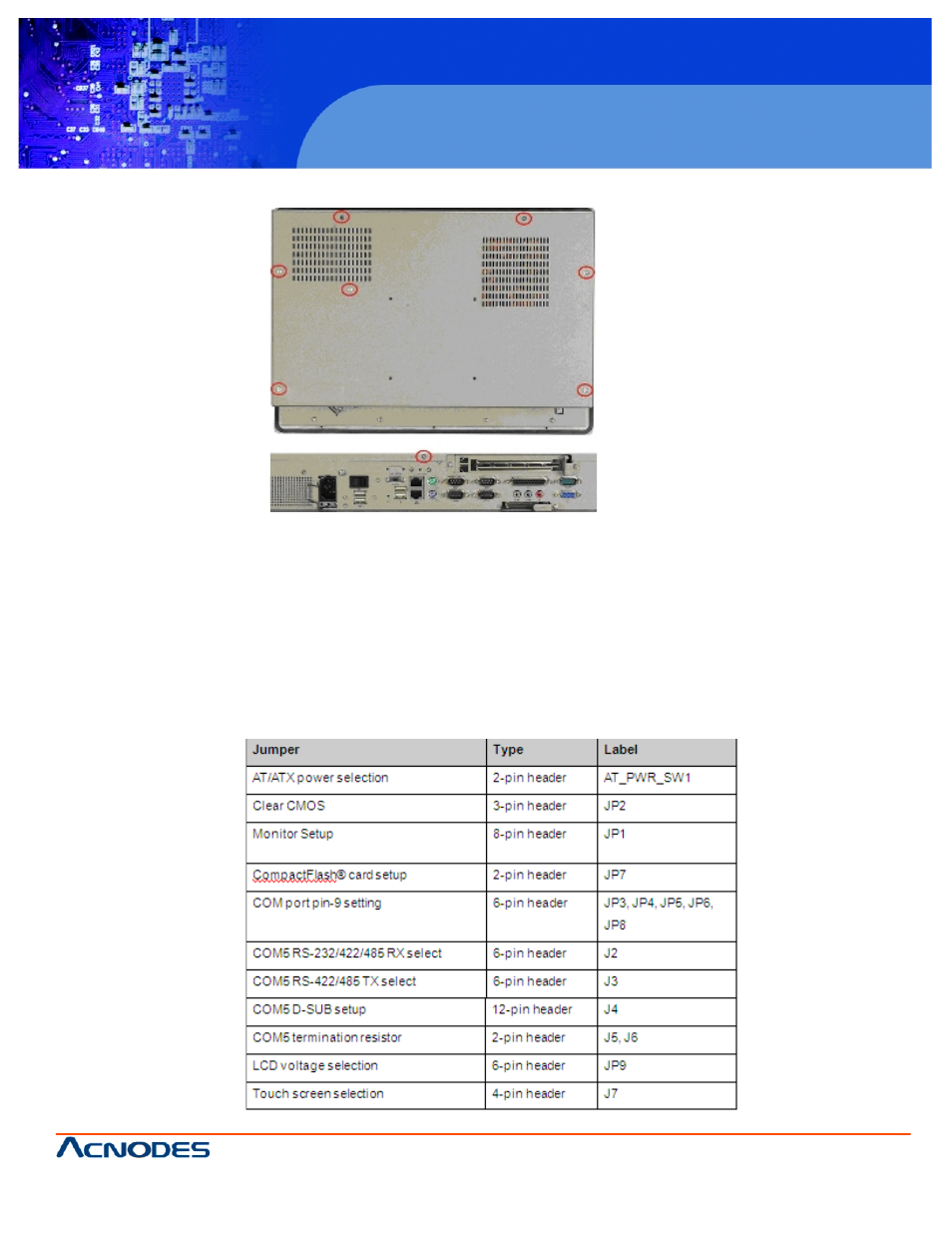

4.4 Remove the Back Cover
Remove all the retention screws on the back cover. Lift the cover up to remove (Figure 4-1).
Figure 4-1: Back Cover Retention Screws
4.5 Jumper Settings
NOTE: These jumper settings and the jumper locations are described in detail in the user manual that came with the 9455
motherboard. Please refer to the manual for more detailed descriptions of the jumper settings.
NOTE: A jumper is a metal bridge that is used to close an electrical circuit. It consists of two metal pins and a small metal
clip (often protected by a plastic cover that slides over the pins to connect them. To CLOSE/SHORT a jumper means connect-
ing the pins of the jumper with the plastic clip and to OPEN a jumper means removing the plastic clip from a jumper.
The 9455 comes with fifteen jumpers (Table 3-1).
