FPC 6104

10.4” Industrial Fanless Panel PC

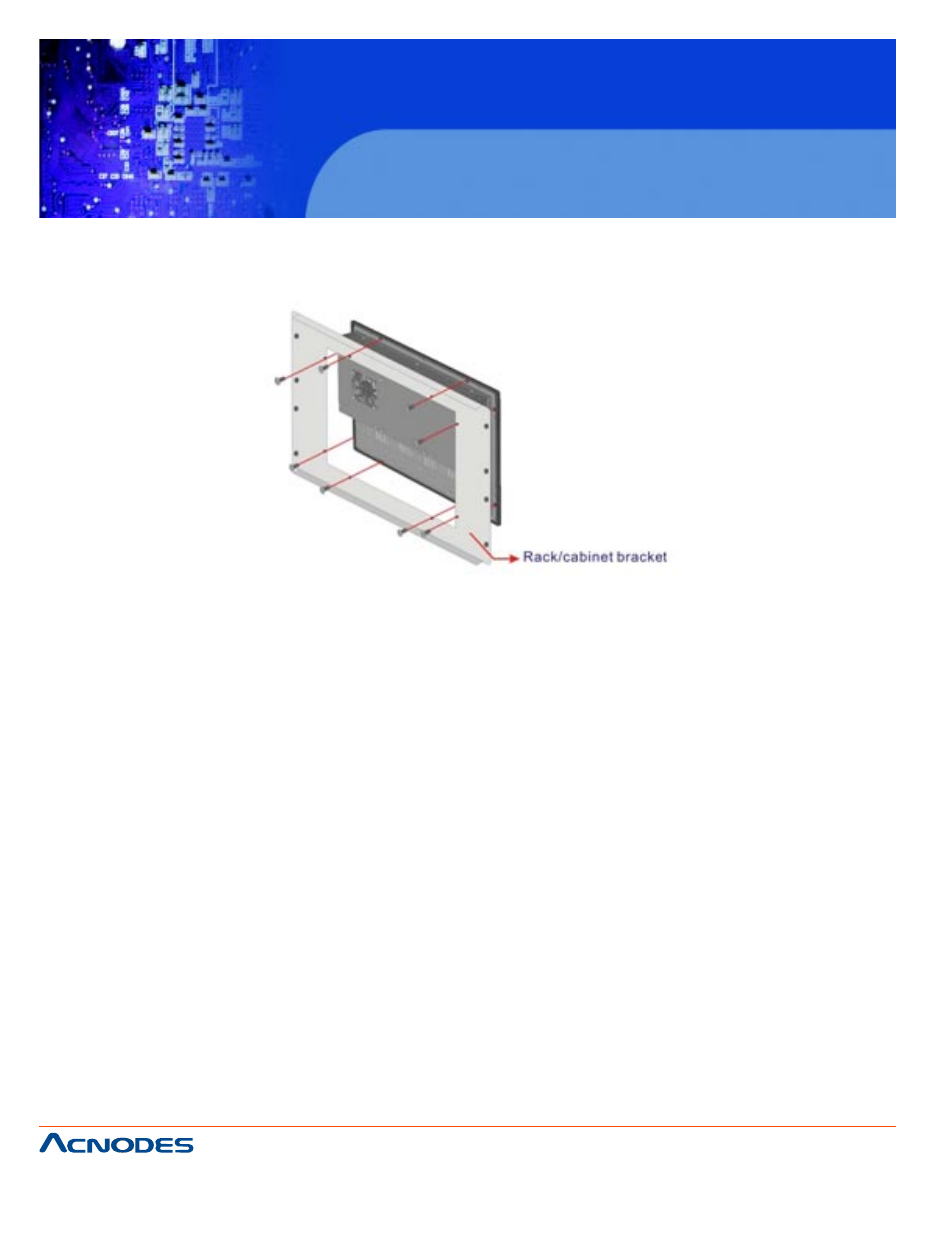

Step 4: Secure the rack/cabinet bracket to the FPC6104 flat panel PC by inserting the
retention screws (Figure 4-33).

Step 5: Follow Step 4 and Step 5 of the FPC6104 Cabinet and Rack Installation pro-
cedures to complete the whole installation process.

4.11 Rear Panel Connectors
4.11.1 Keyboard and Mouse Connection

Two PS/2 connectors on the bottom panel facilitate the connection of a mouse and a
keyboard. To connect either device, plug the PS/2 connector at the end of the device
(keyboard or mouse) cable into the PS/2 connector on the bottom panel.

4.11.2 LAN Connection
There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connec-
tion to an external network. To connect a LAN cable with an RJ-45 connector, please
follow the instructions below.
