FPC 6104

10.4” Industrial Fanless Panel PC

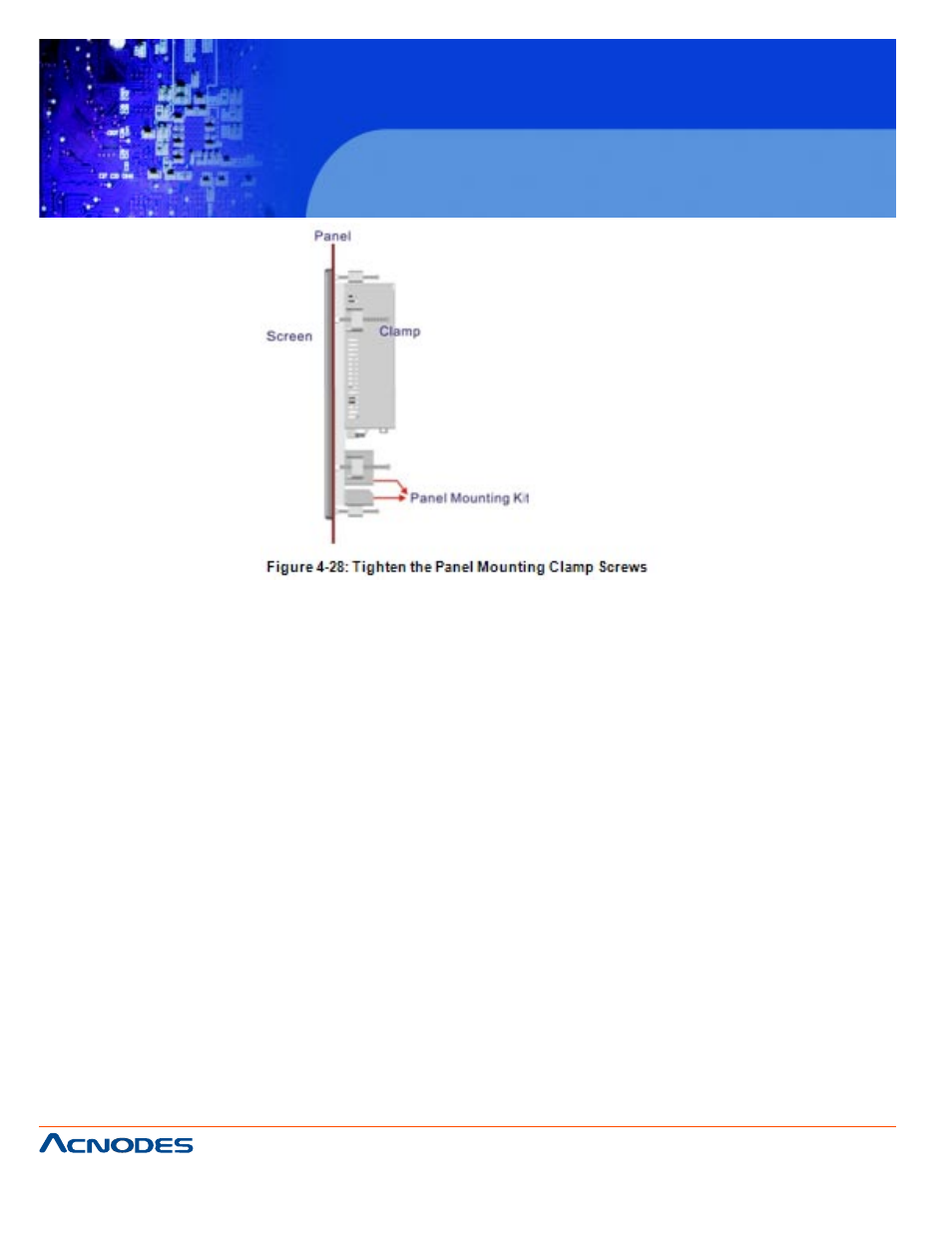

4.10.3 Arm Mounting

The flat panel PC is VESA (Video Electronics Standards Association) compliant and
can be mounted on an arm with a 100 mm interface pad. To mount the flat panel PC on
an arm, please follow the steps below.

Step 1: The arm is a separately purchased item. Please correctly mount the arm onto
the surface it uses as a base. To do this, refer to the installation documentation that
came with the mounting arm.

NOTE:
When purchasing the arm please ensure that it is VESA compliant and that the arm has
a 100 mm interface pad. If the mounting arm is not VESA compliant it cannot be used to
support the flat panel PC.

Step 2: Once the mounting arm has been firmly attached to the surface, lift the flat
panel PC onto the interface pad of the mounting arm.

Step 3: Align the retention screw holes on the mounting arm interface with those in the
flat panel PC. The flat panel PC arm mount retention screw holes are shown in Figure 4-
29.
