FPC 6104

10.4” Industrial Fanless Panel PC

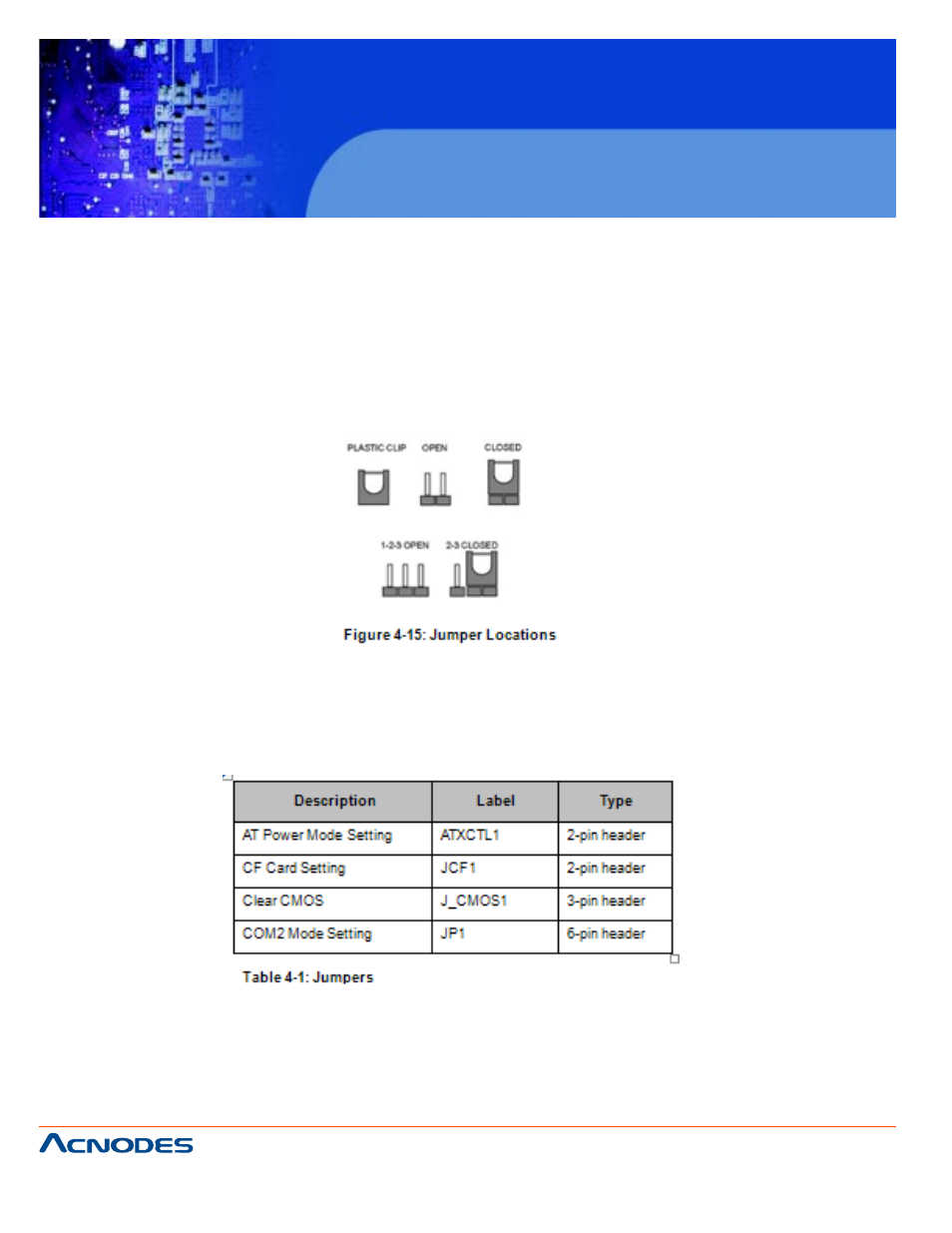

4.10 Jumper Settings

NOTE:
A jumper is a metal bridge used to close an electrical circuit. It consists of two or
three metal pins and a small metal clip (often protected by a plastic cover) that slides
over the pins to connect them. To CLOSE/SHORT a jumper means connecting
the pins of the jumper with the plastic clip and to OPEN a jumper means removing the
plastic clip from a jumper.

The following jumpers can be found on the motherboard installed in the FPC6104.
Before the FPC6104 is installed, the jumpers must be set in accordance with the de-
sired configuration. The jumpers on the FPC6104 motherboard are listed in Table 4-1.
