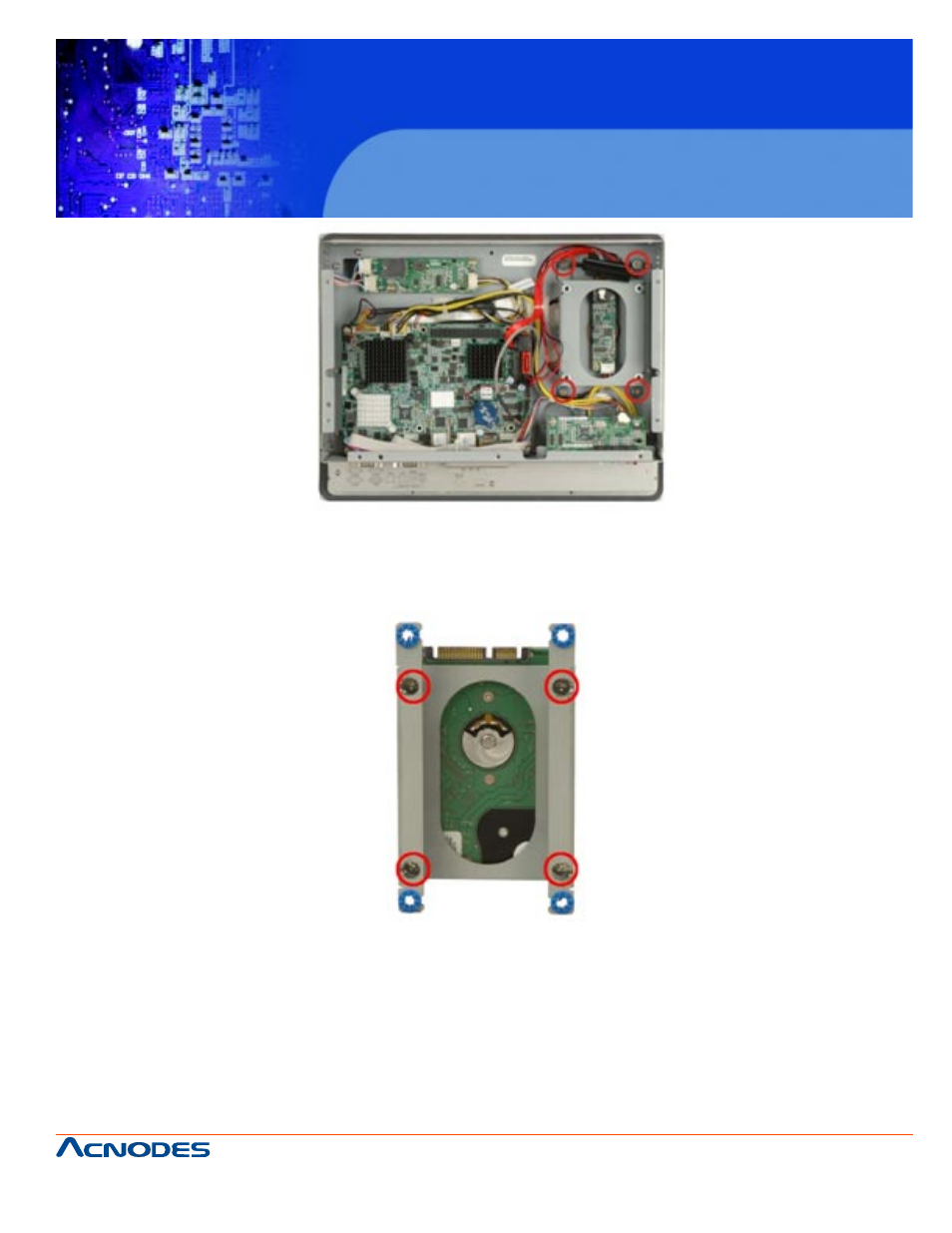

Step 3: Attach the HDD bracket to the HDD. To do this, align the four retention screw
holes in the HDD bracket with the retention screw holes on the bottom of the HDD. In-
sert four retention screws into the HDD bracket. (Figure 4-9).

Step 4: Install the HDD into the FPC6104 by aligning the retention screw holes in the
HDD bracket with the retention screw holes on the panel PC. Insert the four retention
screws.

Step 5: Connect the SATA cable from the motherboard to the rear of HDD.
