2.5 FPC6104 FRONT SIDE
2.5.1 MONITOR
A LCD screen is installed on the front of the FPC6104 series. The monitor
maximum resolution is varied in different FPC6104 models. The screen is shown in

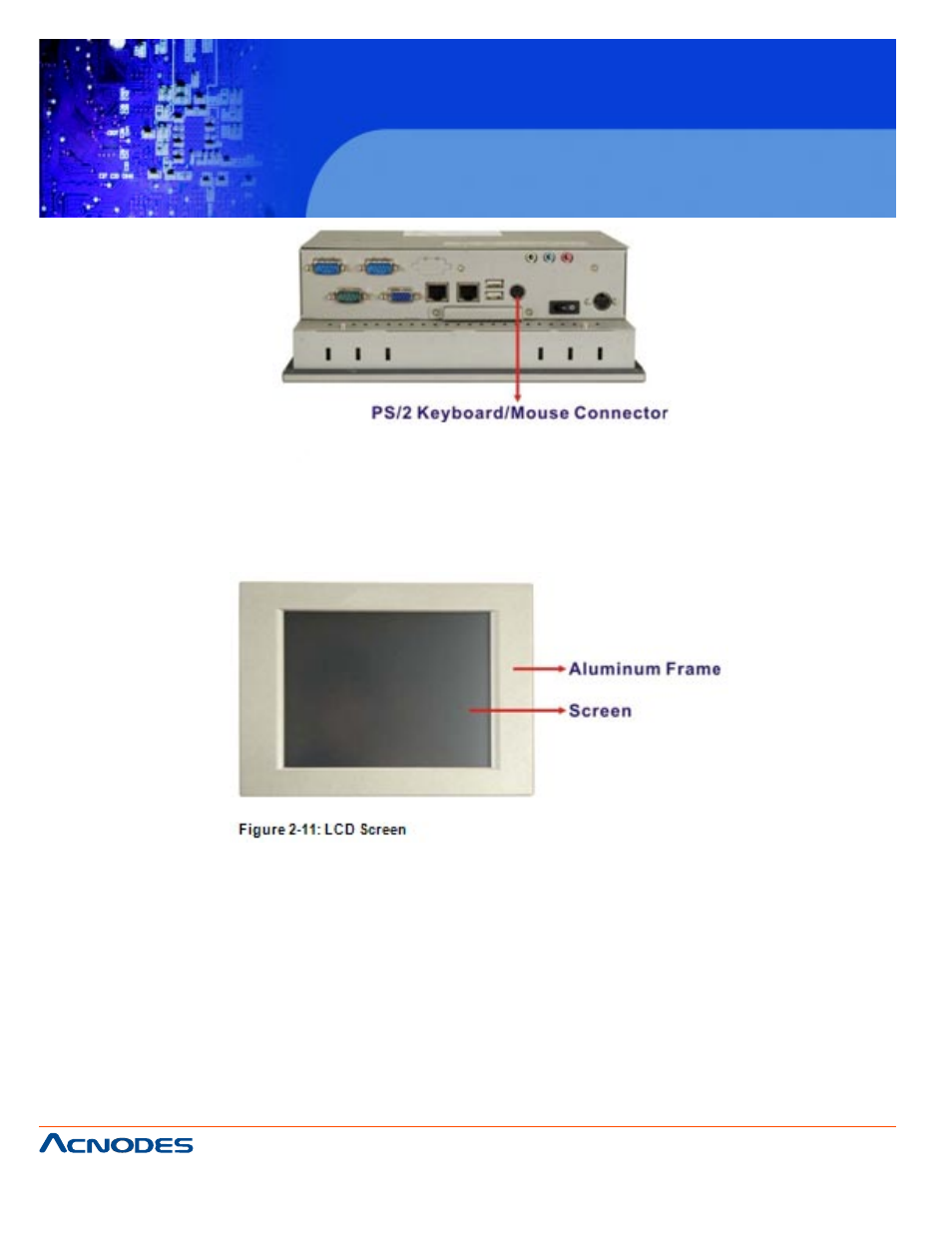

Figure 2-11 below.

2.5.2 TOUCH-SCREEN MODULE
A controller for the 4-wire/5-wire resistive touch screen is installed on the motherboard.
The sensitive touch screen is accurate, reliable and durable.

2.6 GRAPHICS
2.6.1 INTEL 945G SE INTEGRATED GRAPHICS ENGINE
The Intel® 945GSE has the Intel® Gen 3.5 graphics engine integrated into the chipset
and interfaced to the VGA connector on the bottom panel of the FPC6084. The Intel®
Gen 3.5 has 250 MHz core render clock and 200 MHz core display clock at 1.05 V core
voltage.
