FPC 6104
10.4” Industrial Fanless Panel PC
1.2
EXTERNAL OVERVIEW
The flat panel PC is a rectangular cubic structure that comprises of a screen, rear panel, top panel,
bottom panel and two side panels (left and right). An aluminum frame surrounds the front screen. The
rear panel provides screw holes for a wall-mounting bracket, and an arm mounting interface. The
bottom panel provides access to external interface connectors that include LAN, USB 2.0,
audio, VGA, serial port connectors and CompactFlash® card slot.
1.2.1 FRONT PANEL

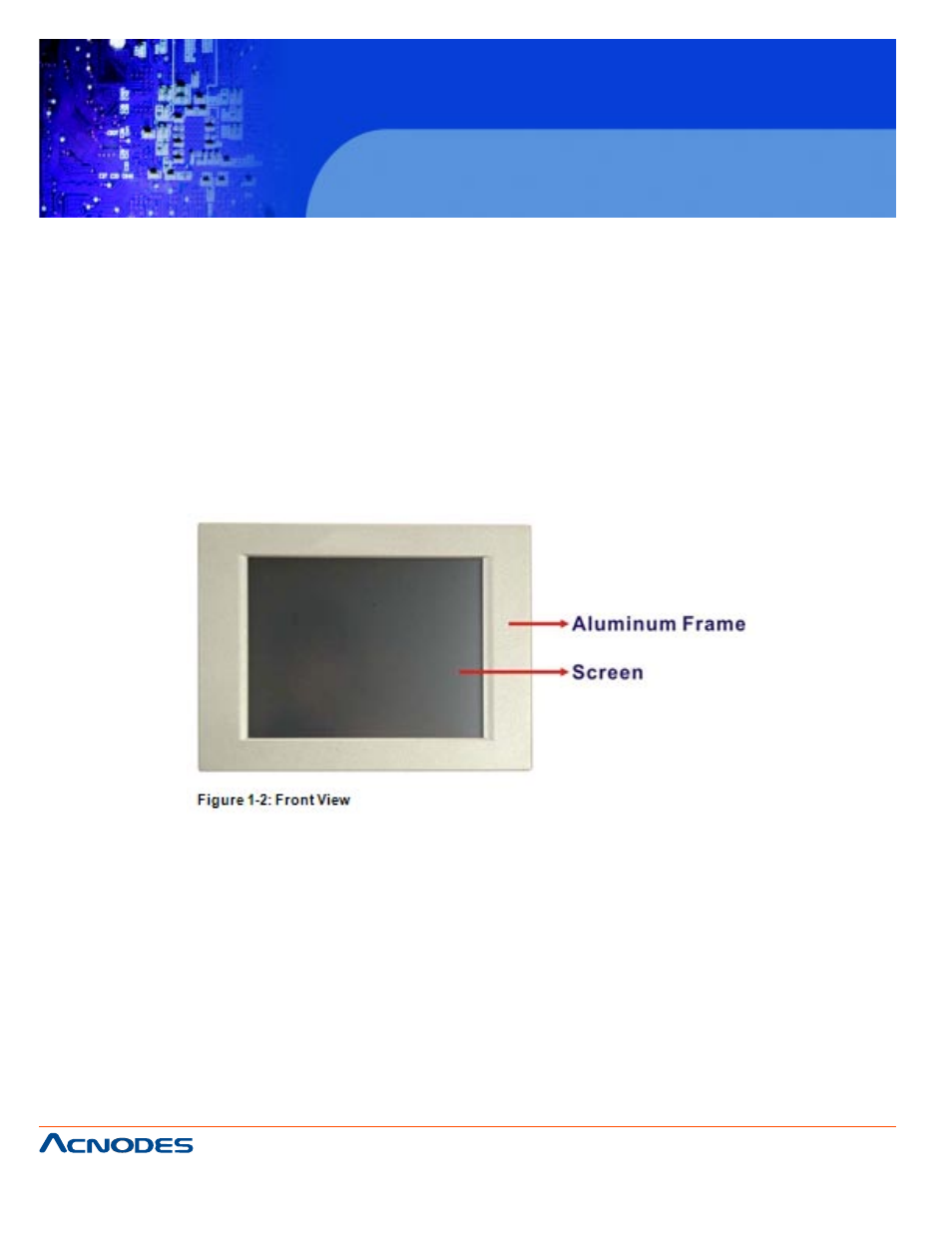

The front side of the FPC6104 is a flat panel TFT LCD screen surrounded by an aluminum frame.
