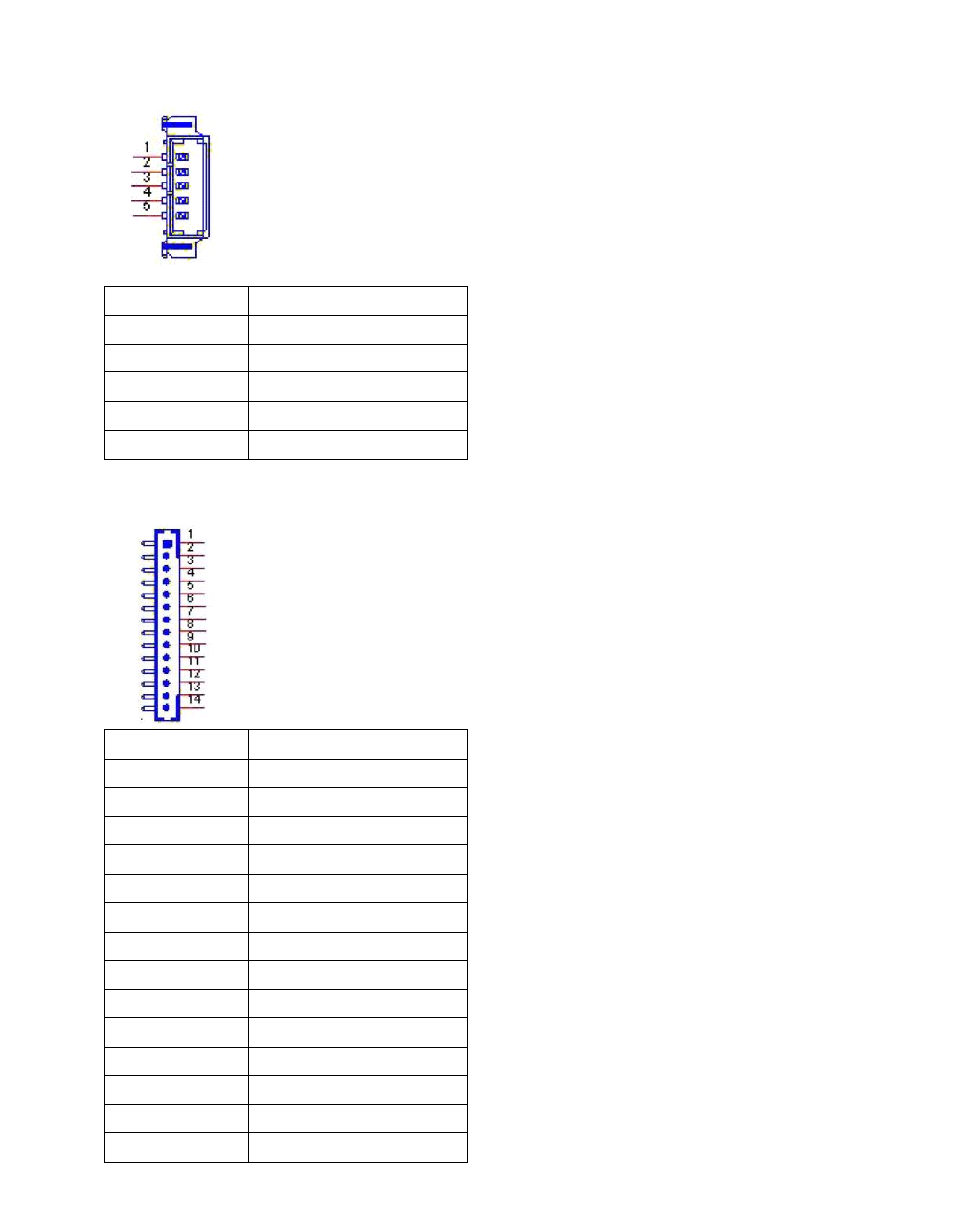

1 8. Inve rter Power/ Internal SATA Power

[refer to CN 17]

PIN

PIN N ame

1

＋12V

2

GND

3

ENABKL

4

VBR

5

＋5V

1 9. 24 bits LVDS Panel

[refer to CN 18]

PIN

PIN N ame

1

GND

2

GND

3

LCDS0_CLK－

4

LCDS0_CLK＋

5

LCDS0_D3－

6

LCDS0_D3＋

7

LCDS0_D2－

8

LCDS0_D2＋

9

LCDS0_D1－

10

LCDS0_D1＋

11

LCDS0_D0－

12

LCDS0_D0＋

13

＋5V or ＋3.3V

14

＋5V or ＋3.3V
