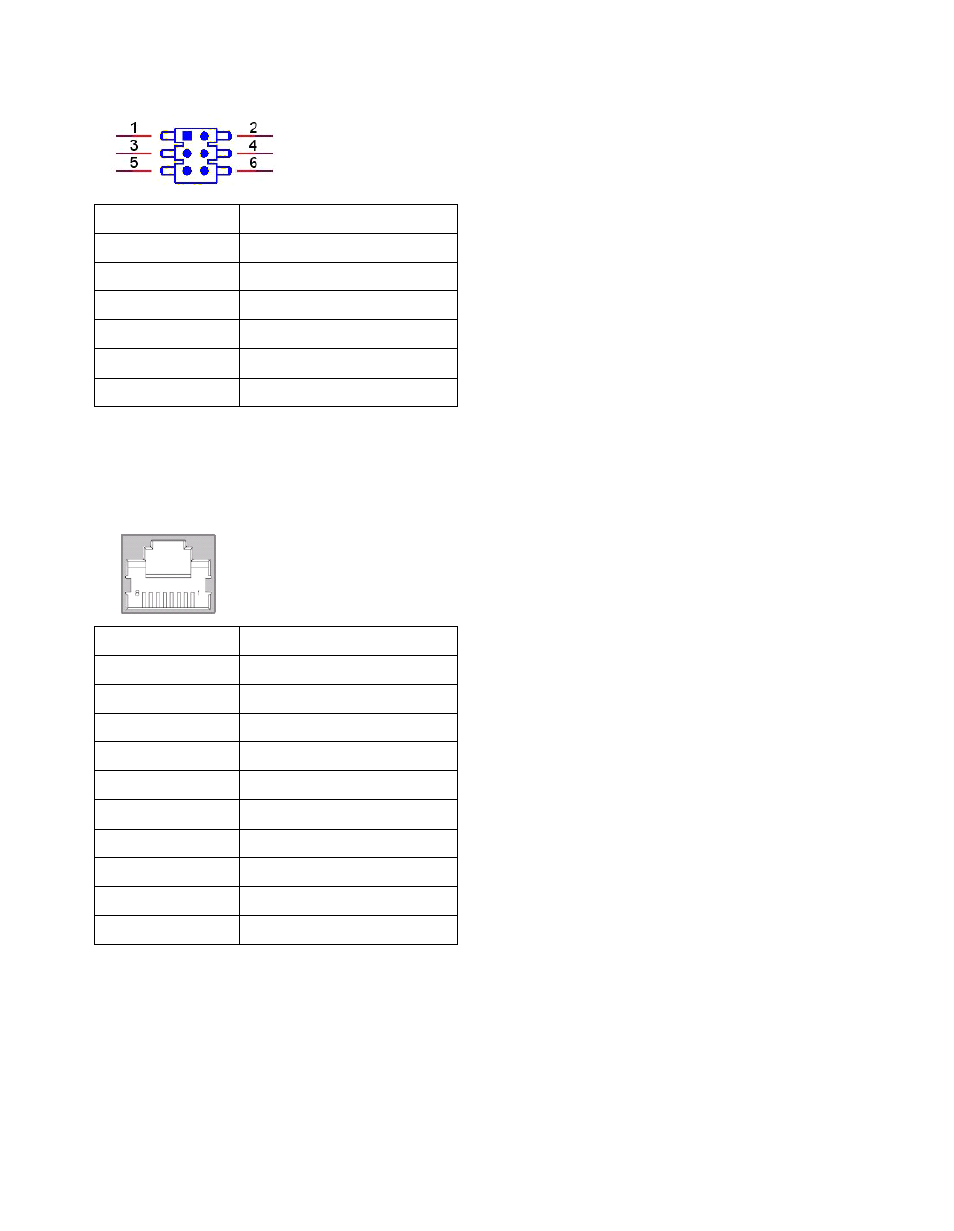

1 4. Front Panel

[refer to CN 13]

PIN

PIN N ame

1

Power Button P in1

2

Power LED＋

3

Power/ Reset Button P in2

4

HDD LED ＋

5

Reset Button Pin1

6

HDD LED－

1 5. Gigabyte Ethernet

[refer to CN 14]

PIN

PIN N ame

1

BI_ DA＋(GHz)

2

BI_ DA－(GHz)

3

BI_DB＋( GHz)

4

BI_DC＋( GHz)

5

BI_DC－( GHz)

6

BI_DB－( GHz)

7

BI_DD＋(GHz)

8

BI_DD－(GHz)

H3

GND

H4

GND
