http://www.accusys.com.tw 29
User’s Manual

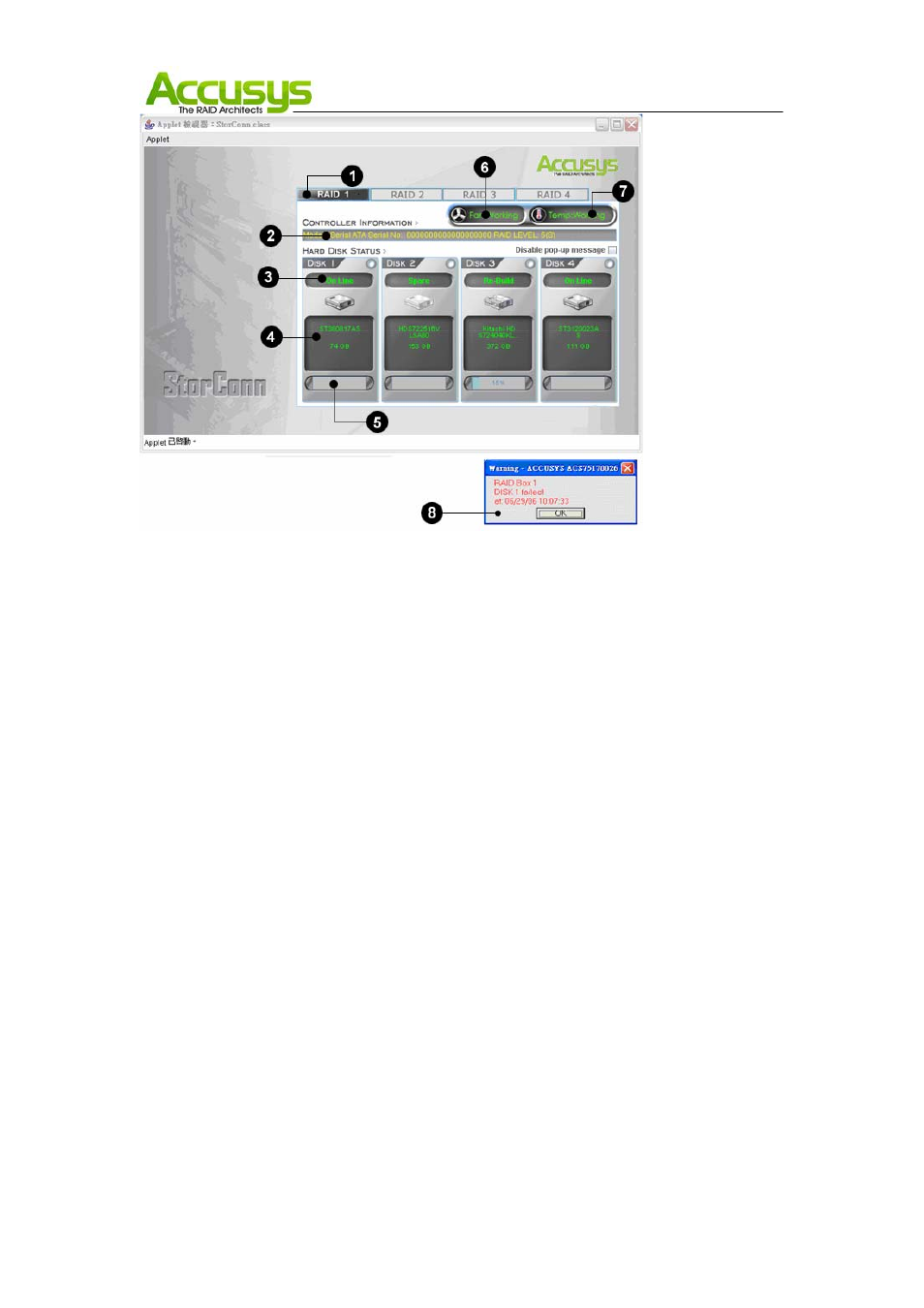

1. RAID box tab: Allow customer to select which RAID to monitor.
2. RAID box information: Lists model name, serial number and current RAID level.
3. Disk status: Allows you to monitor the status of each of the disk drives.
Open a browser on an Internet-connected computer.
Enter the url http://ip/ where ip is the IP address of the host machine.
4. Disk information: Lists model name and capacity of each of the disk drives.
5. Re-build / initialize progress: Tracks the re-building or initialization process.
6. Fan Status: Display the status of fan.
7. Thermometer status: Display the status of system thermometer.
8. Message window: Provides RAID box number, date, time, message when event occur.
