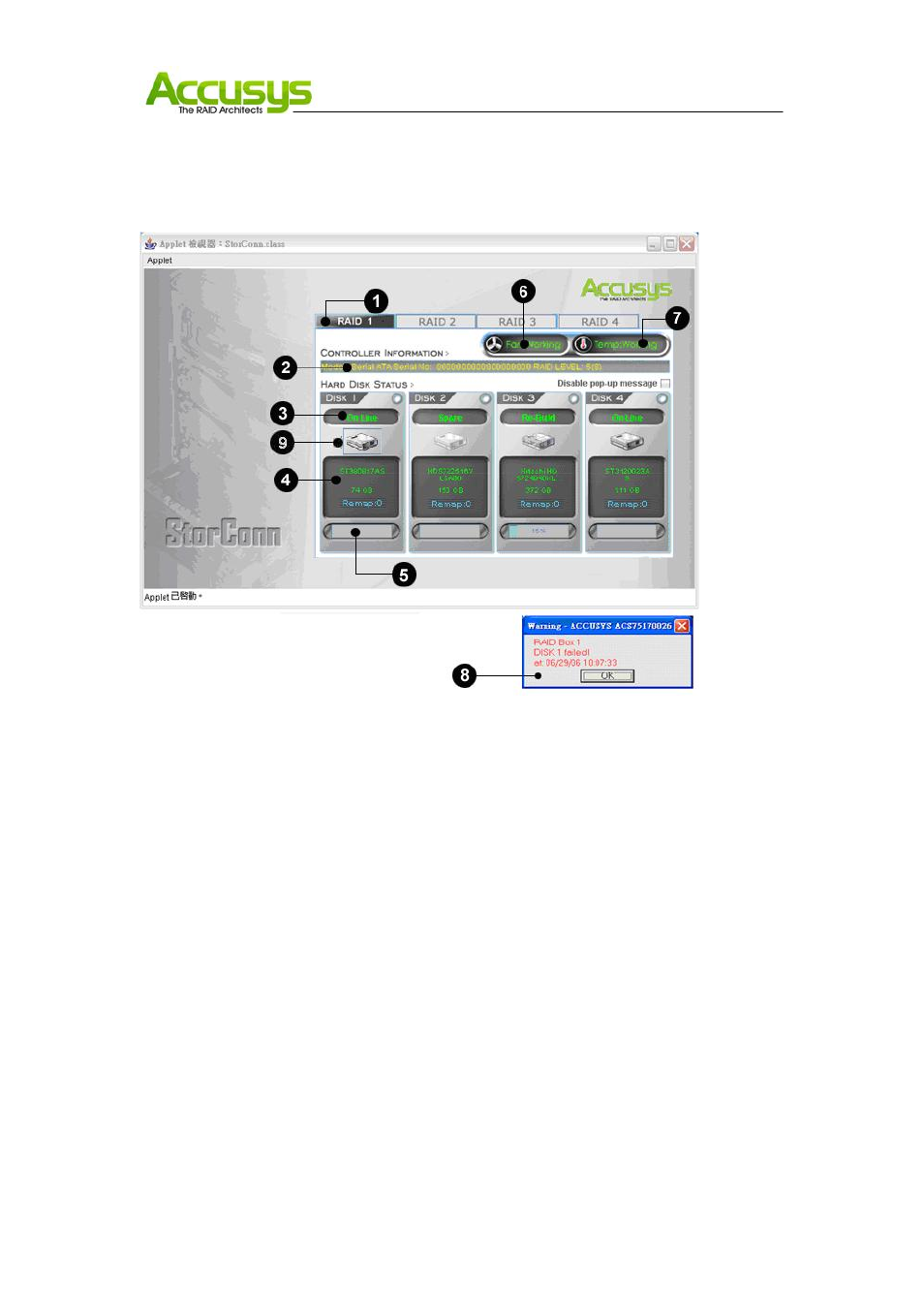

Open monitor window
Monitor your RAID box with StorConn. Click this option to open the monitor window on local
computer. The StorConn browser window displays the following information:

1. RAID box tab: Allow customer to select which RAID to monitor.
2. RAID box information: Lists model name, serial number and current RAID level.
3. Disk status: Allows you to monitor the status of each of the disk drives.
4. Disk information: Lists model name, capacity of each of the disk drives and disk
remap number (this function will support RAID level 5 of all products, but now it only
support ACS-76130 ). If the disk remap exceeds ten times, it will reveal with red. The

controller can support disk remap is 15.

5. Re-build / initialize progress: Tracks the re-building or initialization process.
6. Fan Status: Display the status of fan.
7. Thermometer status: Display the status of system thermometer.
8. Message window: Provides RAID box number, date, time, message when event occur.
9. Read SMART data of disk: Allow customer to read SMART states of disk. (Click disk icon,
SMART information of the disk will display on the screen)

Open Web Server

Allow you to monitor the status of your remotely RAID in real time. (Default is unexecuted)
