4. How to Use
User Guide Page 4-18

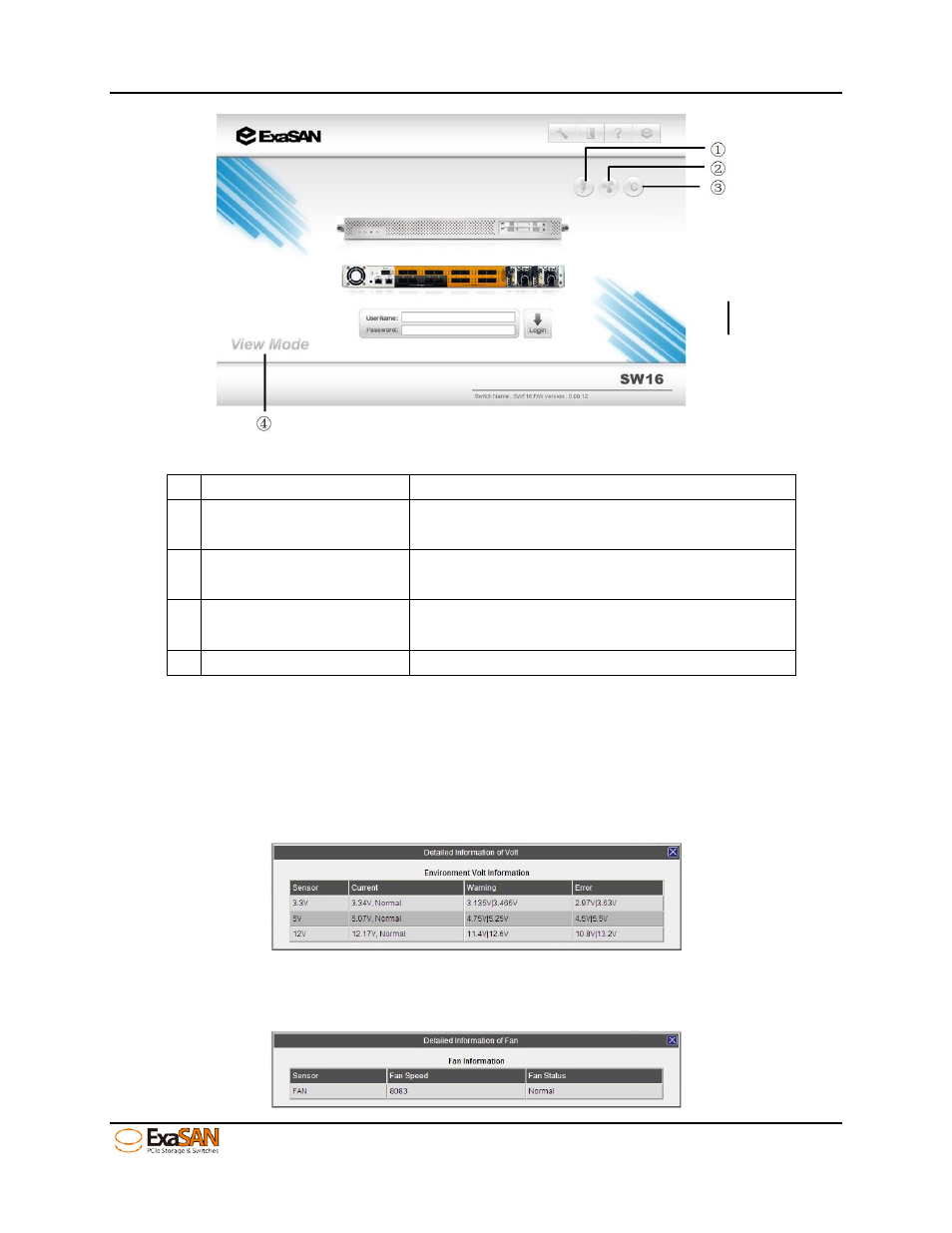

Figure 67: View Mode
Function Description
1 Voltage
Clicking the icon to check the voltage
status of the SW16
2 FAN
Clicking the icon to check the FAN speed
and status of the SW16
3 Temperature
Clicking the icon to check the current
temperature of the SW16
4 View Mode The web GUI is in “View Mode”
User can check the following environment information
• Voltage
• FAN
• Temperature
When users click “Voltage” icon, the web GUI would pop up a window as following
Figure 68: Voltage status
When users click “FAN” icon, the web GUI would pop up a window as following
