1. Introduction
User Guide Page 1-5

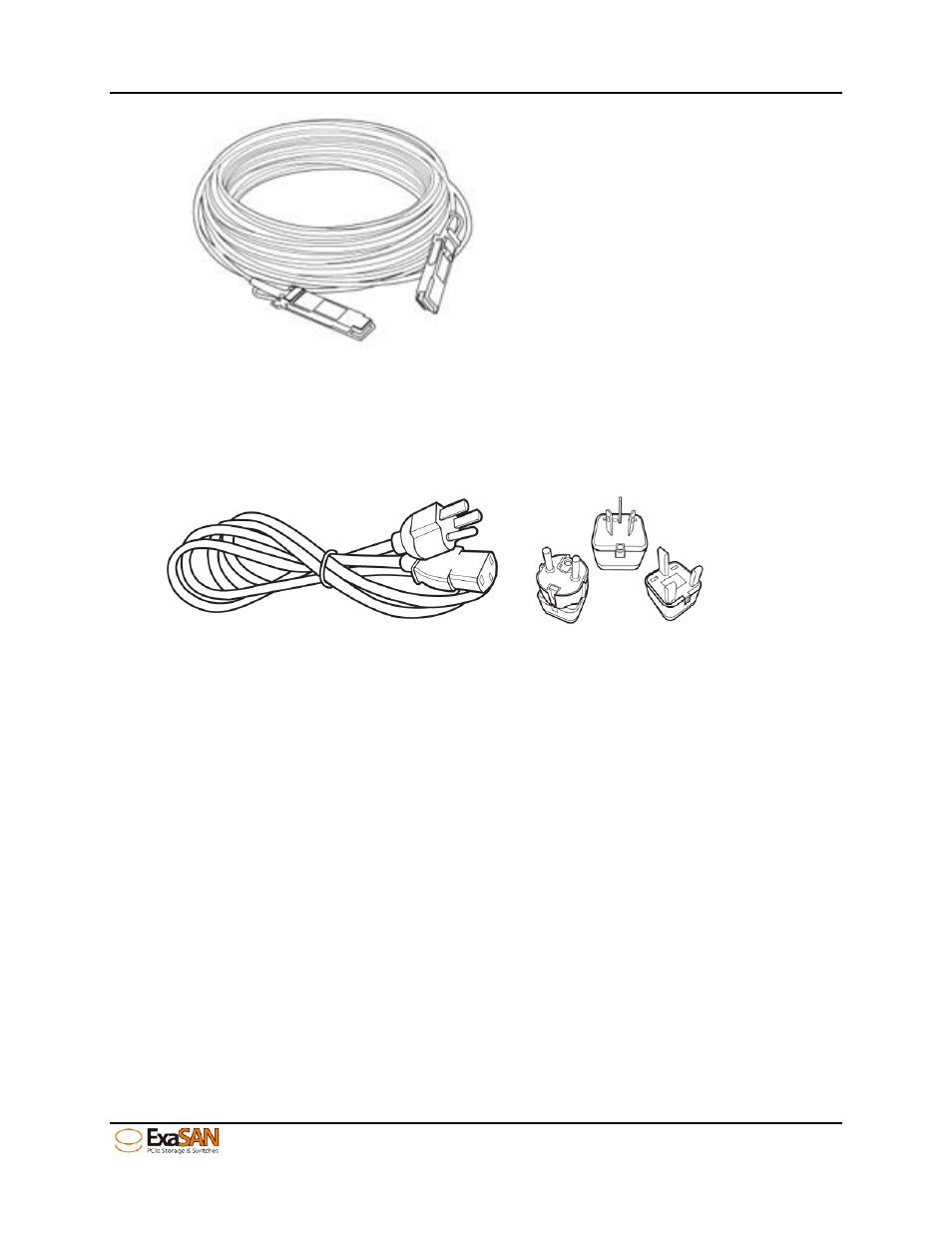

Figure 6: QSFP optical cable
1.1.3.5 Power Cord & Power convertors
Two AC Power Cords (Figure 7) are included in the SWF16 package. We also provide
three types of power convertors – EK, AU, EU, in addition to the US standard power cord.
Figure 7: Power cord & Power converters
1.1.4 Key Features of SW16
1. Host Interface
• PCIe2.0 5Gb/s x4 lanes, for transfers up to 20Gb/s. 12 ports
2. Storage Interface
• PCIe2.0 5GB/s x4 lanes. 4 ports
3. Supports most main-stream SAN management software
• Support cross-platform SAN management software to build up a MDC for PCIe
SAN environment
• Support most main-stream SAN management like SANit, MetaSAN, Xsan, Fibrejet
and etc…
4. Management
• Web-based GUI, cross-platform executable
• Monitor and control via Web GUI of enclosure components
• LED indicators for enclosure status
• Event log download from Web GUI
• Supports both in-band and out-band management
