Edimax Technology AR-7211B V2 User Manual
Page 7

7
Internet Green
ON
Internet connected in router mode
BLINK
Internet activity (transferring/receiving data) in
router mode
OFF
Device in bridged mode
Red
ON
Internet not connected in router mode
(Please refer to Note 2)
LAN
Green
ON
LAN port connected
BLINK
LAN activity (transferring/receiving data)
OFF
LAN port not connected
Note:
1) If the ADSL LED is off, please check your Internet connection. Refer to A .
Hardware Installation for more information about how to connect the router
correctly. If all connections are correct, please contact your ISP to check if there
is a problem with your Internet service.
2) If the Internet LED is red, please check your ADSL LED first. If your ADSL LED
is off, refer to Note 1. If the green ADSL LED is ON, please check your Internet
configuration. You may need to check with your ISP that your Internet is
configured correctly.

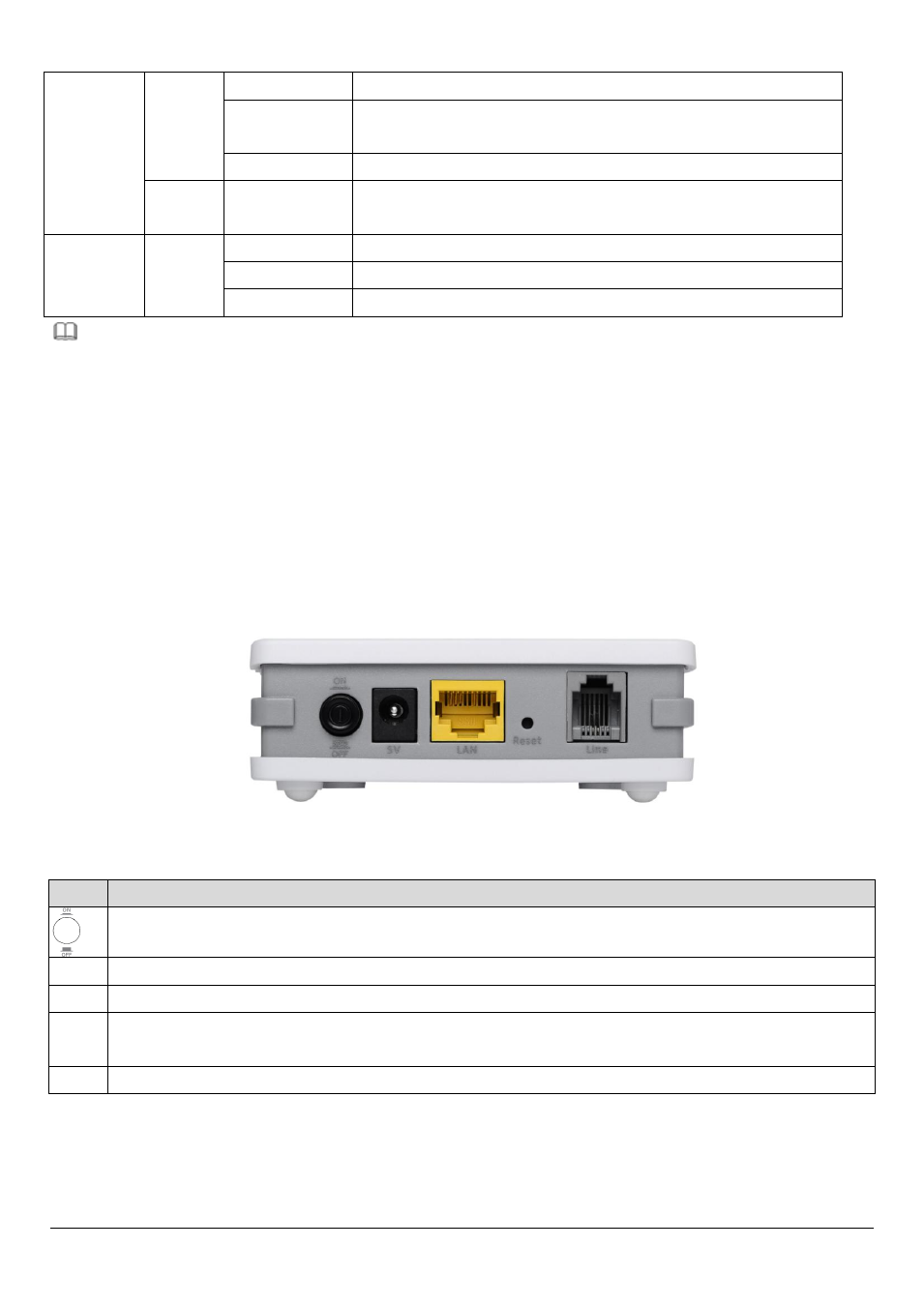

Rear Panel
Figure 2
Items
Description
Power ON/OFF
5V
Power connector
LAN Ethernet RJ-45 port
Reset
Resets device to factory defaults (to reset to factory defaults, push a paper clip into
the hole when the device is powered and hold for more than 10 seconds)
Line Line RJ-11 port
