Back panel – Edimax Technology BR-6204WLg User Manual
Page 12
11

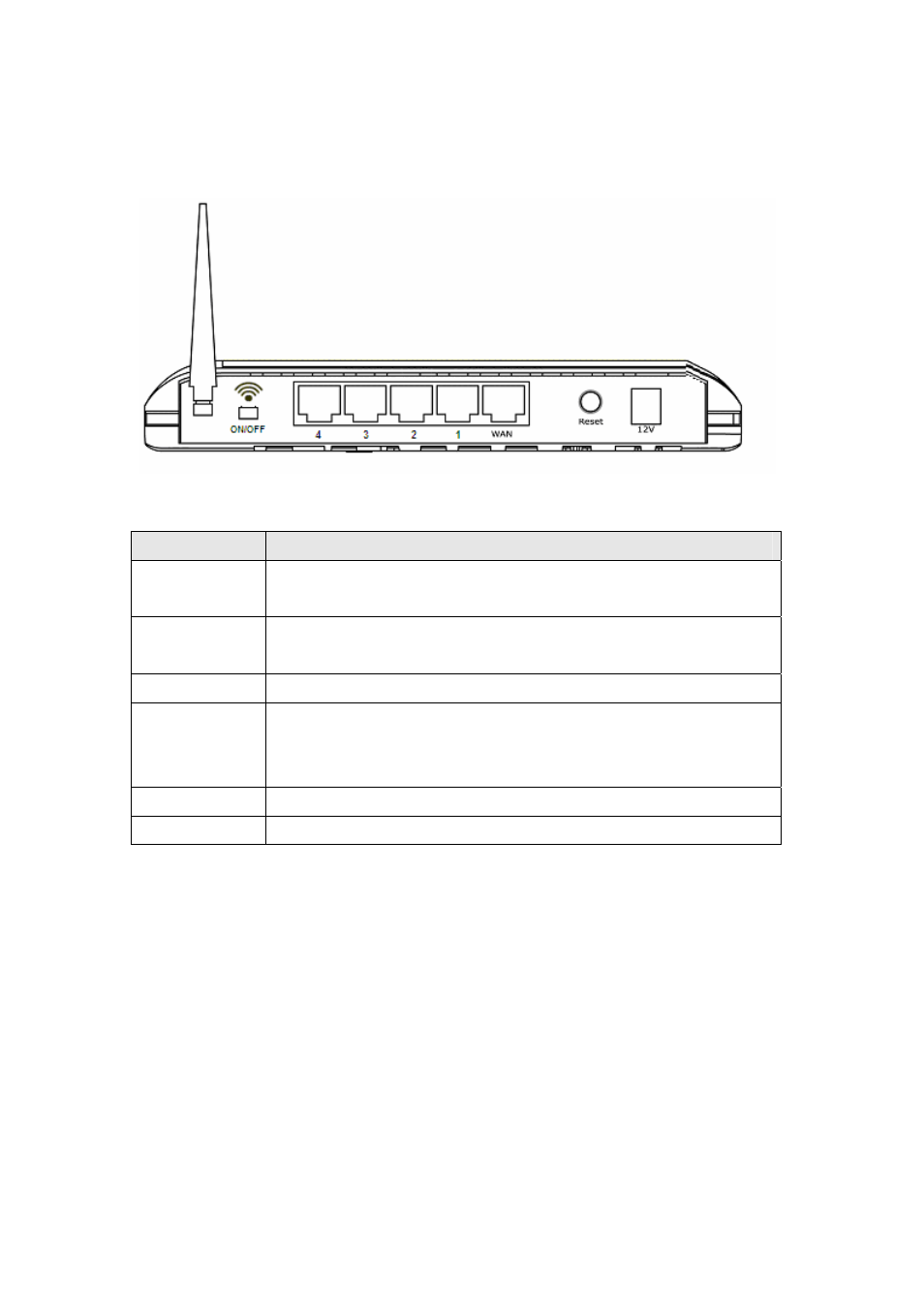

Back Panel
Item Name
Description
Antenna
Wireless antenna. Please keep antenna perpendicular to
the ground at all the time.
ON/OFF
Wireless switch, Set to ‘ON’ to switch wireless function
on; set to ‘OFF’ to switch wireless function off.
12V
Power connector, connects to power adapter
Reset
Reset the router to factory default settings (clear all
settings). Press this button and hold for 20 seconds to
clear all settings.
1 - 4
Local Area Network (LAN) ports 1 to 4
WAN
Wide Area Network (WAN / Internet) port
