Define Site Information 129

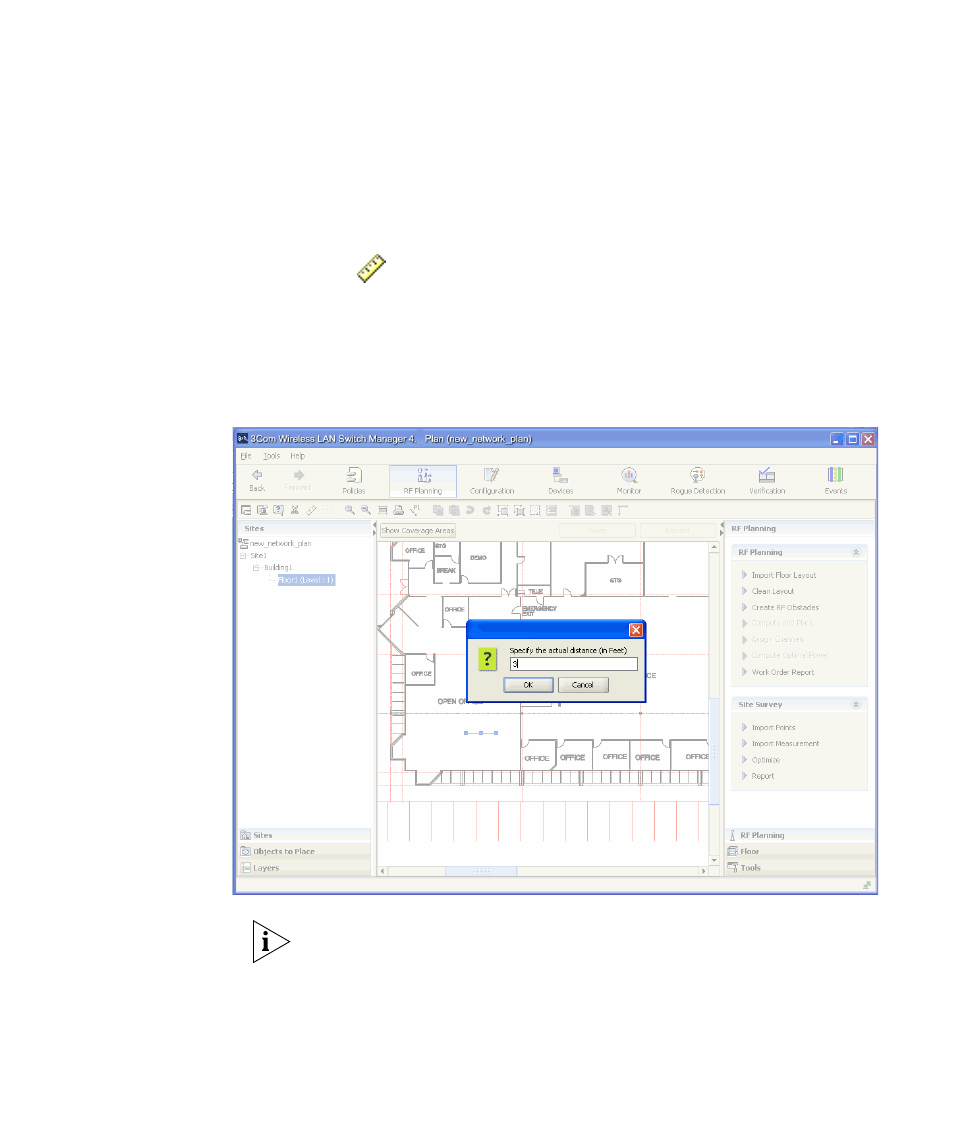

Set the Scale Set the scale on your floor plan to better define the distance between
objects in your network.
To set the scale
1 Display the floor plan in the Content panel.
2 Click on the toolbar.
a Draw a line on the floor plan over an object whose length you know;
for example, a 3-foot door.
b Enter the actual length of the object in the pop-up box.
c Click OK.
You may want to zoom in the object to be used to define the scale to
make this task easier.
