42 Removing and Replacing Parts zt1100/xz200 and xt1500 Series
Troubleshooting and Self-Repair Guide
Removing the Hard Disk Drive
Table 3. Hard Disk Drive Replacement Part Numbers
Description
Part Number Exchange Part
Number
Drive, hard disk (20,GB, 9.5mm, Toshiba FDB ATA100) 0950-4287 F3476-69002
Drive, hard disk (20 GB, 9.5mm, Hitachi ATA100) 0950-4310 F3428-69502
Drive, hard disk (20,GB, 9.5mm, IBM FDB ATA100) 0950-4318 F3257-69501
Drive, hard disk (30 GB, 9.5mm, Hitachi FDB ATA100) 0950-4312 F3428-69501
Drive, hard disk (30 GB, 9.5mm, IBM [Cascade] FDB ATA100) 0950-4319 F3414-69500
Drive, hard disk (30 GB, 9.5mm, Hitachi (Titan) ATA100) 0950-4360 F3414-69501
Drive, hard disk (40 GB, 9.5mm, Toshiba ATA100) 0950-4288 F3378-69102
Drive, hard disk (40 GB, 9.5mm, Hitachi ATA100) 0950-4313 F3378-69101
Drive, hard disk (40 GB, 9.5mm, IBM FDB ATA100) 0950-4320 F3428-69500
Required Equipment
• #0 Phillips screwdriver.
Removal Procedure
1. Unplug the AC adapter, if present, and remove the battery.
2. On the bottom of the unit, remove both hard drive retaining screws.

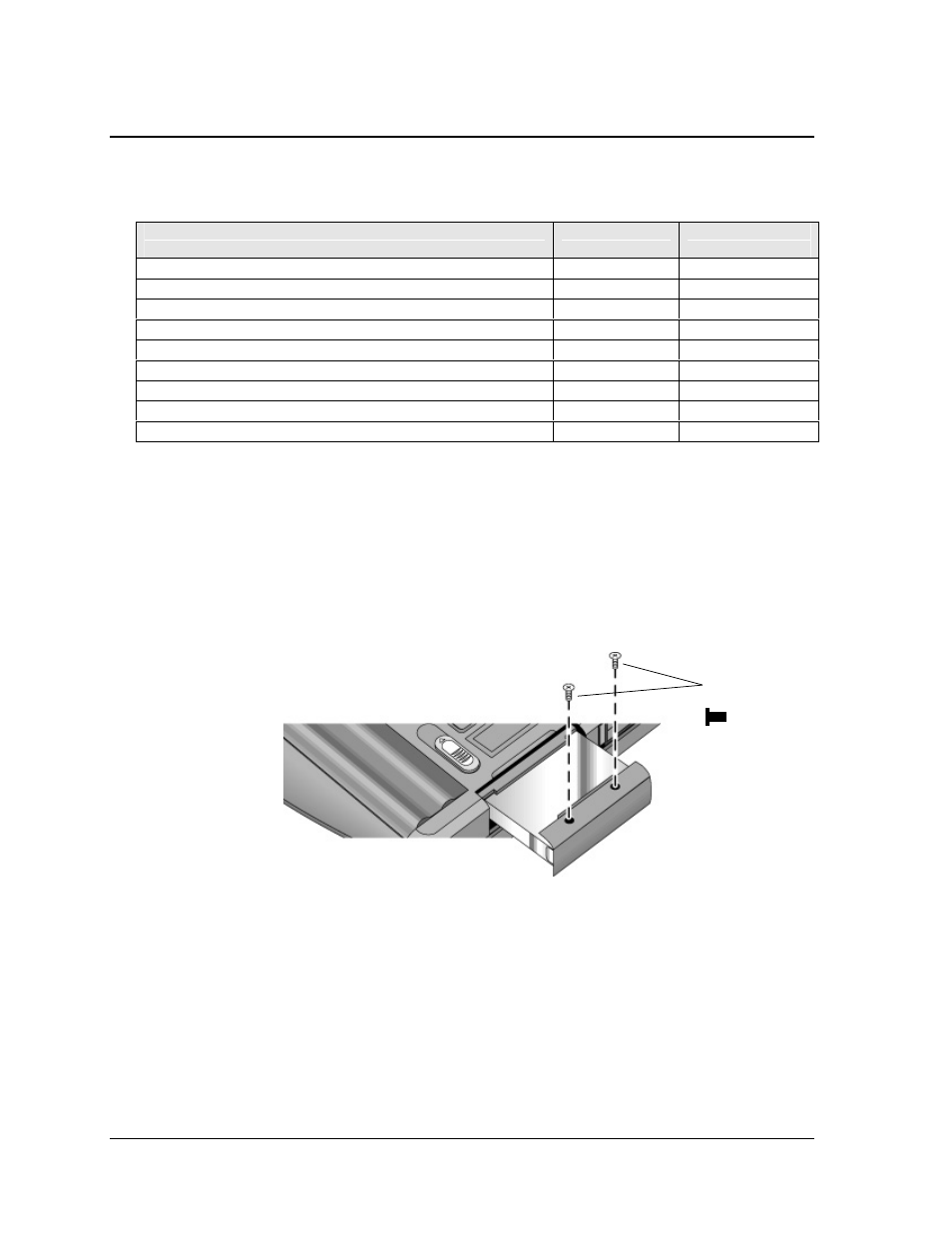

Figure 10. Removing the Hard Disk Drive
3. Carefully pull the hard drive out of the notebook.
4. Remove all four screws from the hard drive tray and drive case, then lift the drive out of the tray.
Screws,
M2.5×4mm
