zt1100/xz200 and xt1500 Series Product Information 11
Troubleshooting and Self-Repair Guide

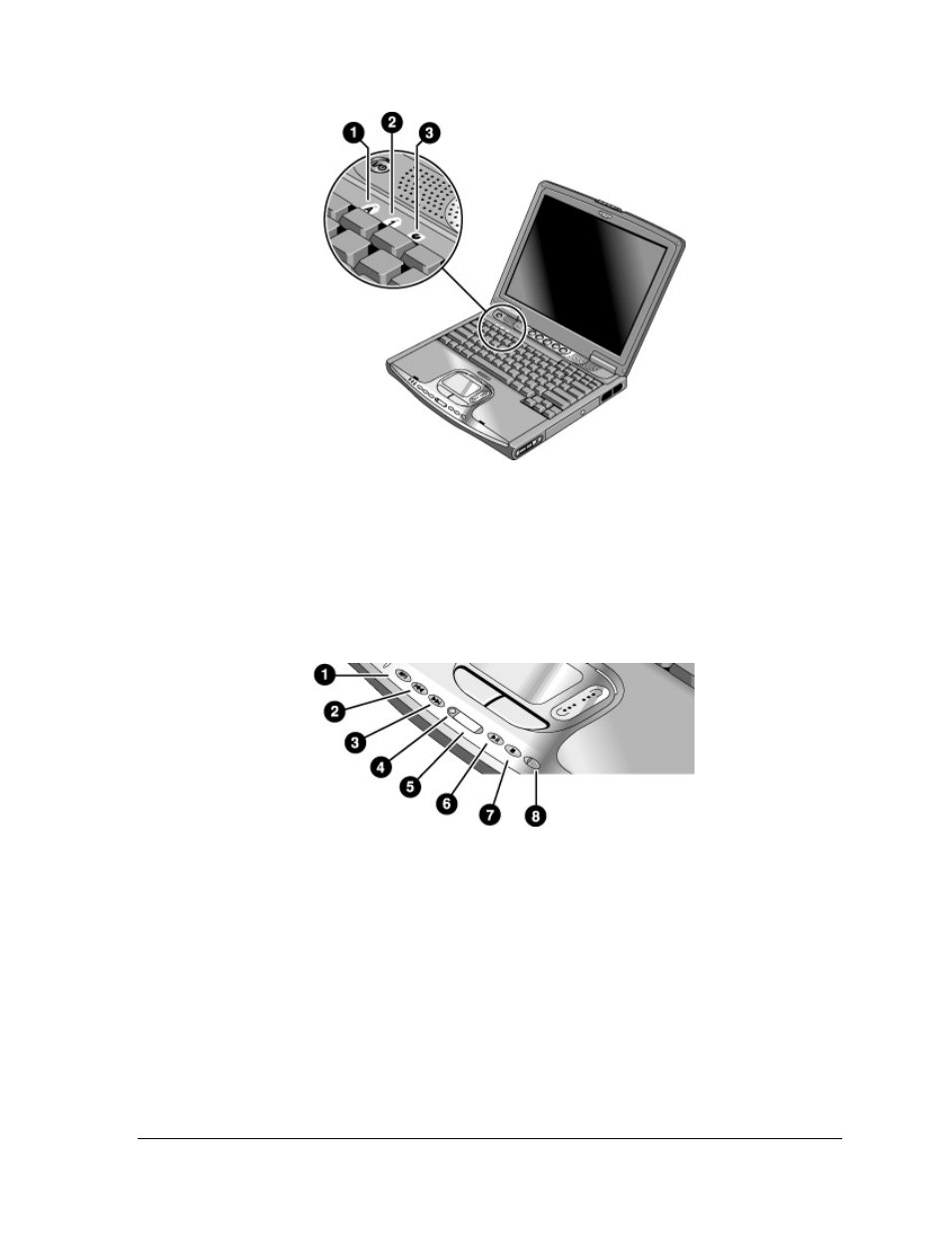

Figure 5. Keyboard Status Lights
1. Caps Lock. Caps Lock is active.
2. Num Lock. Num Lock is active. (The Keypad Lock must also be on to use the
embedded keypad.)
3. CD/DVD drive activity. The drive is active.
Figure 6. Multimedia Buttons and Status Panel (selected models)
1. MP3 player launch button.
2. Previous track button.
3. Next track button.
4. Status panel button.
5. Status panel.
6. Play/Pause button.
7. Stop button.
8. Multimedia power switch and
indicator light.
