Switch 3300 MM — Rear View Detail
15
Switch 3300 MM —
Rear View Detail

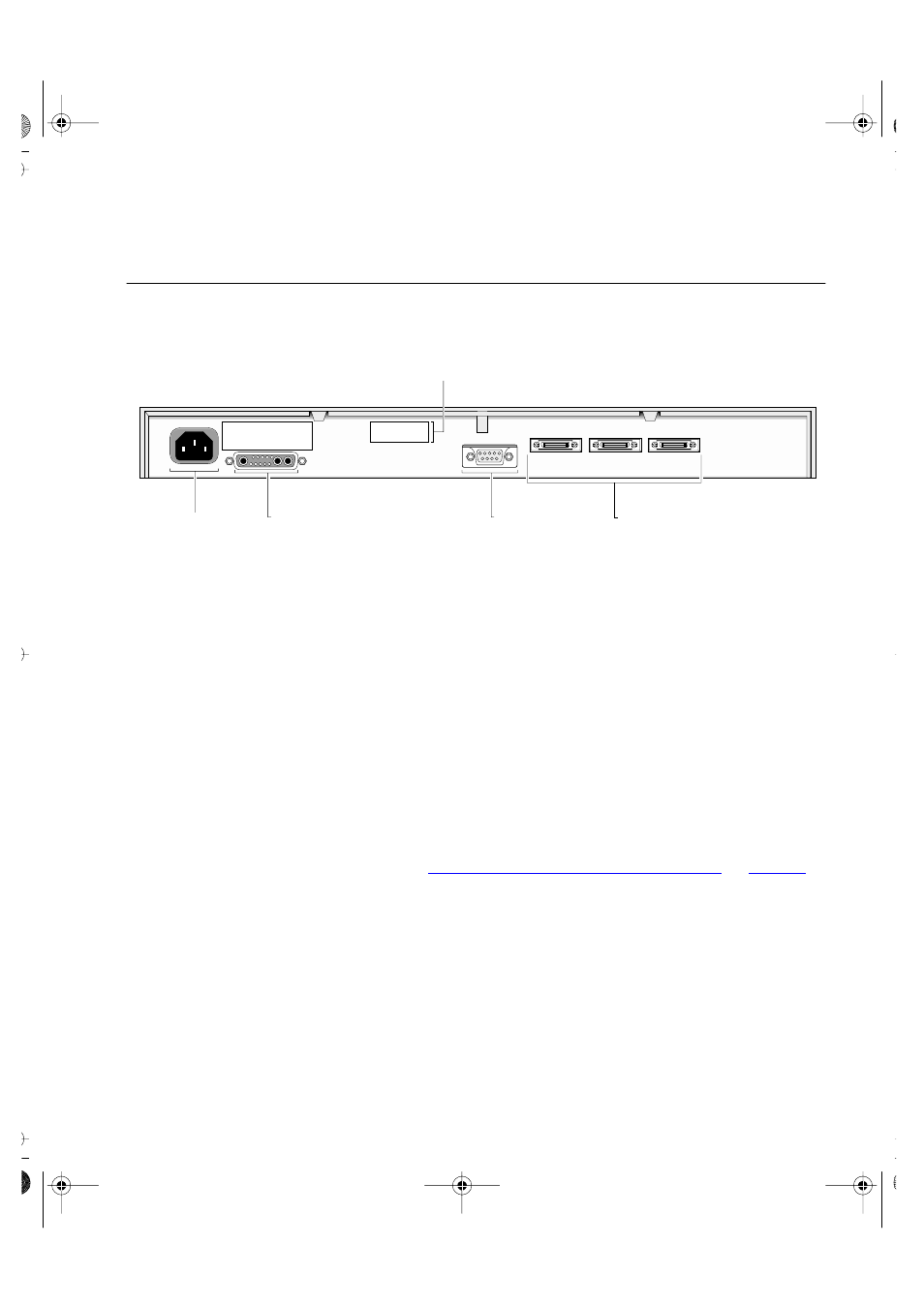

Figure 2 Switch 3300 MM — rear view
Unit Information
Label
This label shows the following:
■
The 3Com product name of the Switch
■
The 3Com 3C number of the Switch
■
The unique MAC address (Ethernet address) of the Switch
■
The serial number of the Switch
You may need this information for fault reporting purposes.
Power Socket
The Switch automatically adjusts its power setting to any supply voltage
in the range 90–240V A.C.
Redundant Power
System Socket
To protect against internal power supply failure, you can use this socket
to connect a SuperStack Advanced Redundant Power System (ARPS) to
the Switch. See
“Connecting a Redundant Power System”
.
Unit 3
Console
(max) 19200,8,1,N
Switch 3300 MM 24 Port
MAC Addr: XXXXXXXXXX
3C16988
Serial XXXXXXXXXXXX
Power Socket
Unit Information Label
Redundant Power System Socket
