9
YORK INTERNATIONAL
INSTALLATION
FORM 115.20-NOM3 (1006)

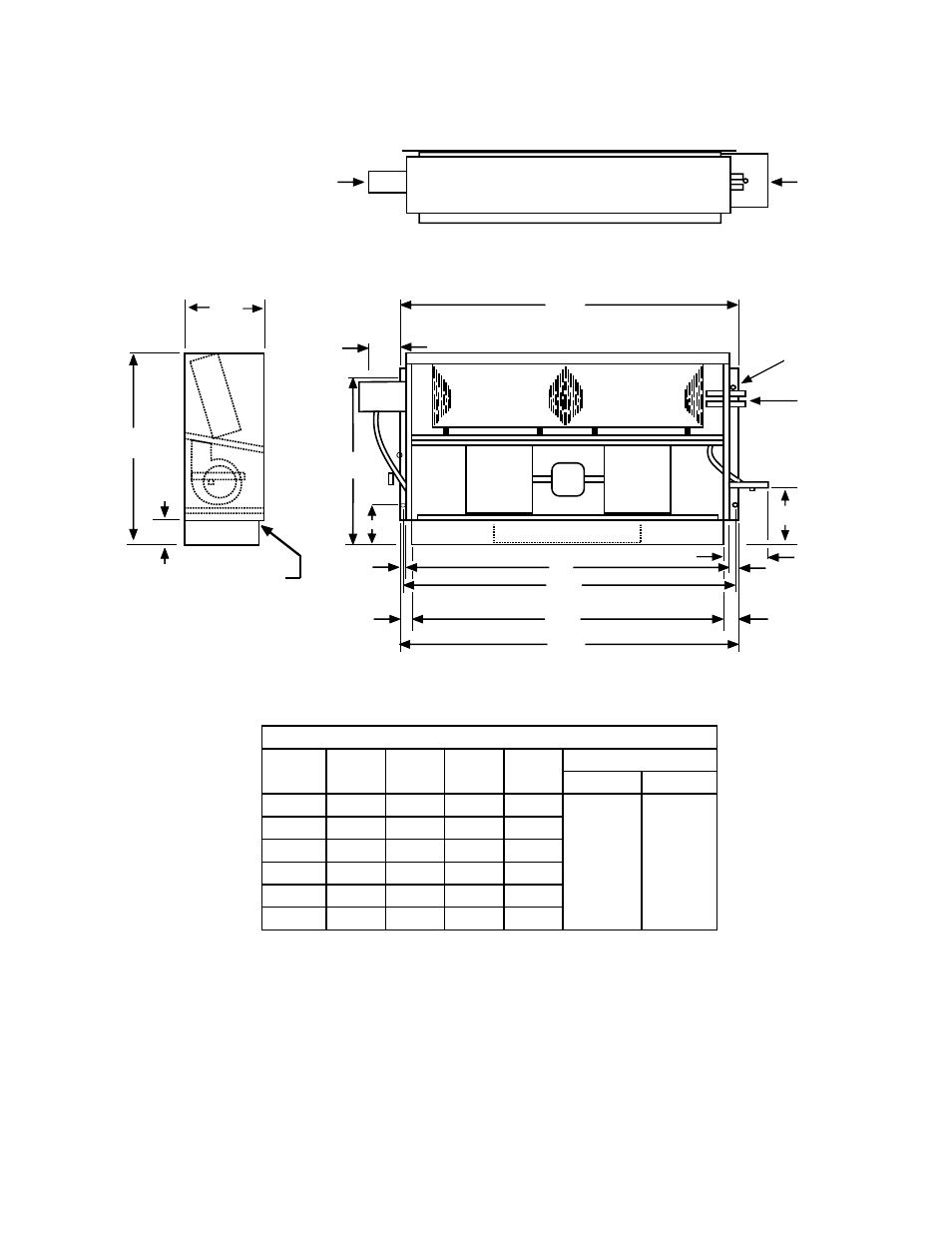

FIG. 9 - FAN COIL UNIT DIMENSIONS - DIRECT DRIVE, MODEL YWC
LDO10324
GENERAL DIMENSIONS IN INCHES
MODEL A C D E
COIL CONN SIZE
COOLING HEATING
3 YWC 27-1/2 25-1/2 26-1/2 22-3/4
5/8 O.D.
SWEAT
5/8 O.D.
SWEAT
4 YWC 35-1/2 33-1/2 34-1/2 31-3/4
6 YWC 43-1/2 41-1/2 42-1/2 39-3/4
8 YWC 51-1/2 49-1/2 50-1/2 47-3/4
10 YWC 59-1/2 57-1/2 58-1/2 55-3/4
12 YWC 67-1/2 65-1/2 66-1/2 63-3/4
22-3/8
*DIMENSIONS VARY FOR UNITS
WITH NON STANDARD VALVE
PACKAGES ALL DIMENSIONS ARE IN INCHES
SUPPLY &
RETURN
WATER
CONNECTIONS
1/2 DIA. MTG
HOLES
2 EACH SIDE
SECONDARY
PLASTIC DRAIN
PAN 0.84 O.D.
FOR 3/4" PVC
PIPE
CONTROL BOX
RETURN AIR OPENING
(MTG. HOLES)
1/2" PERMANENT FILTER
REMOVABLE THRU
RETURN AIR OPENING
TOP
FRONT
(RIGHT HAND UNIT SHOWN)
Hand of unit determined by
cooling coil connection when
facing the front of unit.
END
A
A
E
D
C
1-7/8 1-7/8
7/8 7/8
8
7-1/4*
5-1/8
6-5/8
5-1/4
24-1/2
3
