YORK INTERNATIONAL
INSTALLATION
FORM 115.20-NOM3 (1006)

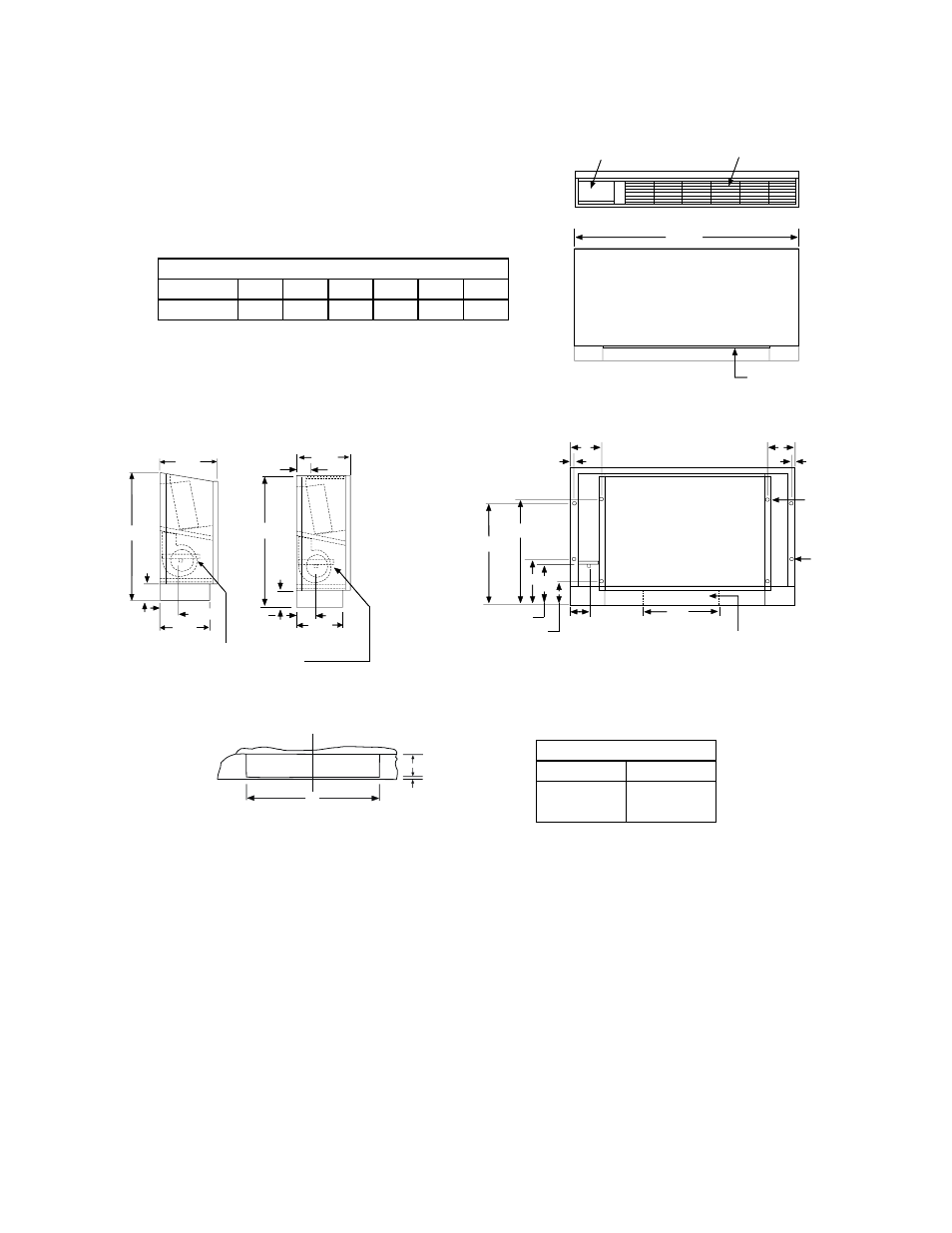

FIG. 7 - FAN COIL UNITS - DIRECT DRIVE, MODEL YVS & YVF
19
19-3/8
CONTROL ACCESS
DOOR
A
RETURN AIR OPENING
8-1/8
8-1/8
1/2
1/2
1/2 DIA. MTG.
HOLES
2 EACH SIDE
5/16 DIA. MTG.
HOLES
2 EACH SIDE
OPTIONAL BACK FRESH AIR INTAKE
DAMPER AND INSECT SCREEN
(SEE DETAIL)
*DIMENSIONS MAY VARY FOR
UNITS WITH NONSTANDARD
VALVE PACKAGES
9
5
16
SECONDARY PLASTIC
DRAIN PAN 0.84 O.D.
FOR 3/4" PVC PIPE
CL
UNIT SIZES 10 & 12
Have two openings 2" apart
centered on center line
16
2-1/2
1/2
YVS
YVF
BACK
TOP
FRONT
END
END
1/2" PERMANENT
FILTER REMOVABLE
THRU RETURN AIR
OPENING
PLASTIC DISCHARGE
GRILLE
LEFT HAND UNIT SHOWN
RH
LH
7-1/4*
5-1/8
9-1/4
2-3/8
25
3-3/4
4-1/2
7-7/8
9-1/4
3-3/4
27-5/8
4-1/2
7-7/8
GENERAL DIMENSIONS
SIZE MODEL
3
4
6
8
10
12
DIM "A"
43
51
59
67
75
83
COIL CONNECTION
COOLING
HEATING
5/8" O.D.
SWEAT
5/8" O.D.
SWEAT
