INSTALLATION
SUPPLY &
RETURN
WATER
CONNECTIONS
1/2 DIA. MTG
HOLES
2 EACH SIDE
WIDTH
HEIGHT
RETURN AIR OPENING
(RIGHT HAND UNIT SHOWN)
(RIGHT HAND UNIT SHOWN)
A
MODEL DRYWALL CUTOUT DIMENSIONS
MODEL
HEIGHT
WIDTH
MINIMUM HEIGHT
ABOVE FLOOR (A)
3YWC
28"
42"
6"
4YWC
28
50"
6"
6YWC
28
58"
6"
8YWC
28
68"
6"
10YWC
28
74"
6"
12YWC
28
82"
6"

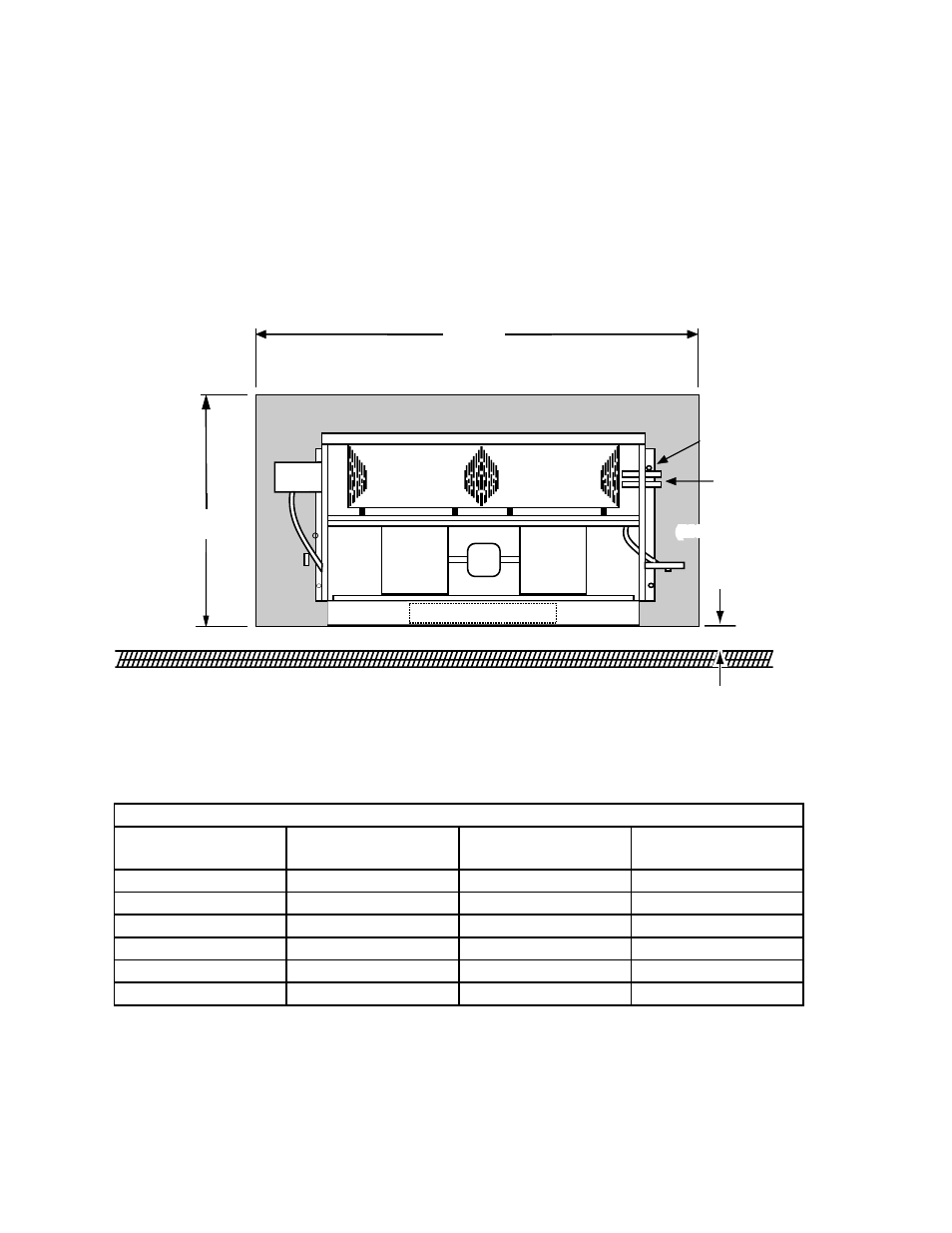

FIG. 10 - YWC FAN COIL INSTALLATION LOCATION DIMENSIONS
