SETUP AND ADJUSTMENTS
Motion Control Linkage Adjustment
Adjustment must be made with the rear wheels
rotating. Raise the rear of the machine and block it
up so the wheels are free to rotate.
Tilt seat forward and remove the seat rod so 1.
the seat rotates forward onto the frame.
Place a 2x4 board between the foot plate 2.
and the center of the seat to engage the seat
safety switch.
Loosen the nuts directly behind each ball 3.
joint on both rods that connect the pump arm
to the motion control assemblies.
Start the engine. The park brake must be 4.
engaged and the motion control levers in
the neutral slots to start the engine. Run the
engine approximately half throttle.
Release park brake to allow the wheels to 5.
rotate.
Begin with either side and put the motion 6.
control lever into the neutral position.
Adjust the motion control linkage by rotating 7.
the double nuts in the proper direction until
the wheel stops rotating.
Move the motion control lever forward and 8.
into the neutral position and into the neutral
slot. The wheel must be stopped completely
at this point.
Do the same in reverse and release the 9.
lever. The lever should return to neutral on
its own.
Run engine full throttle to make sure wheels 10.
do not rotate. Readjust if any rotation occurs.
Repeat the whole process for the opposite 11.
side and tighten the nuts against the ball
joints.
Turn machine off. 12.
Reinstall the seat rod and check the wiring 13.
harness to the seat safety switch for a good
connection and return the seat to the normal
position.
park Brake Adjustment
See your authorized Yazoo/Kees dealer for any park
brake adjustment.

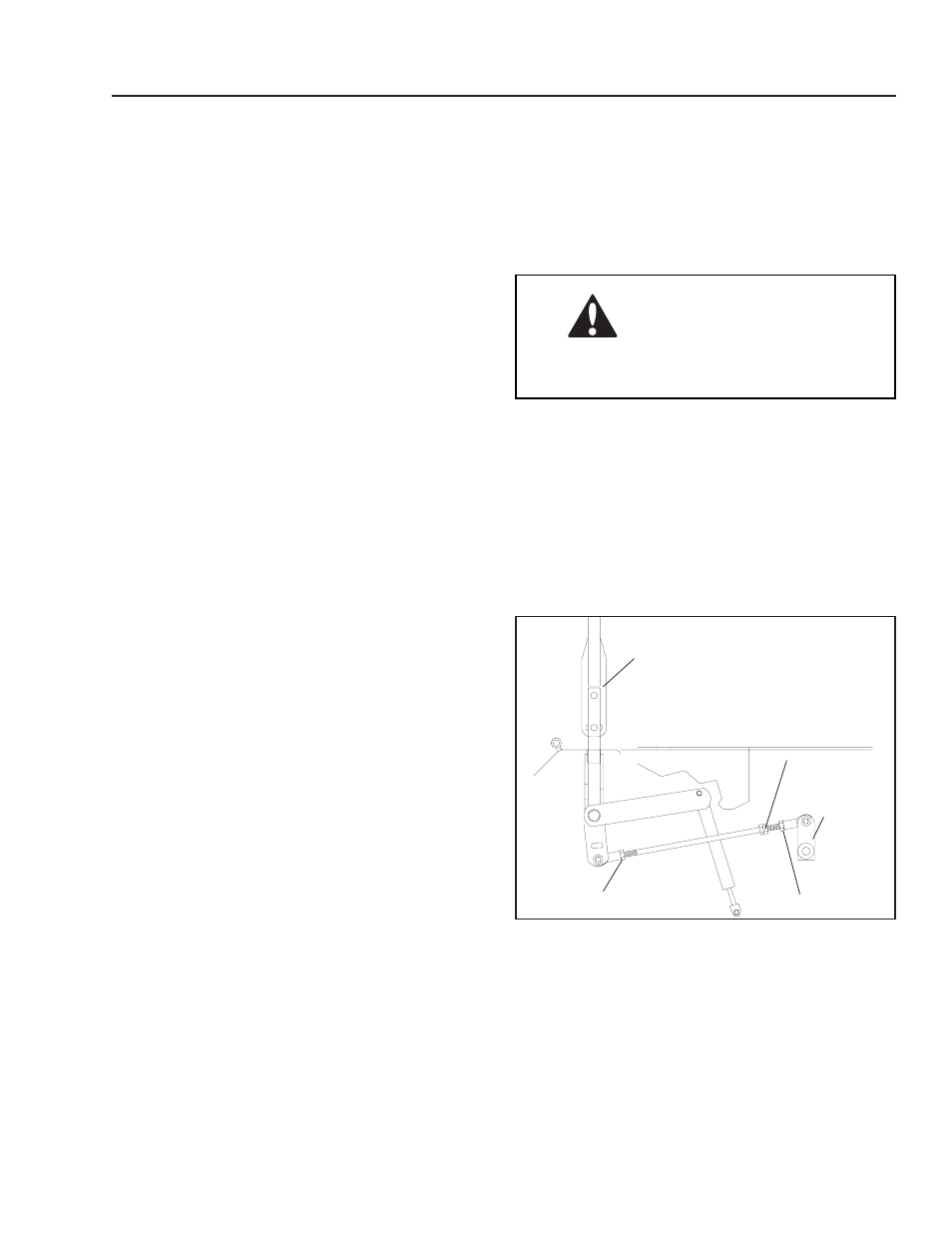

Turn Here
To Adjust
Loosen Here
Loosen Here
(Left Hand Thread)
Motion Control
Lever
Pump Arm
CAUTION!
Keep hands, feet and clothing away from
rotating tires.
