Typical field power & control wiring, Typical power wiring typical control wiring, Cooling only (24 volt thermostat) – York DY 036 User Manual

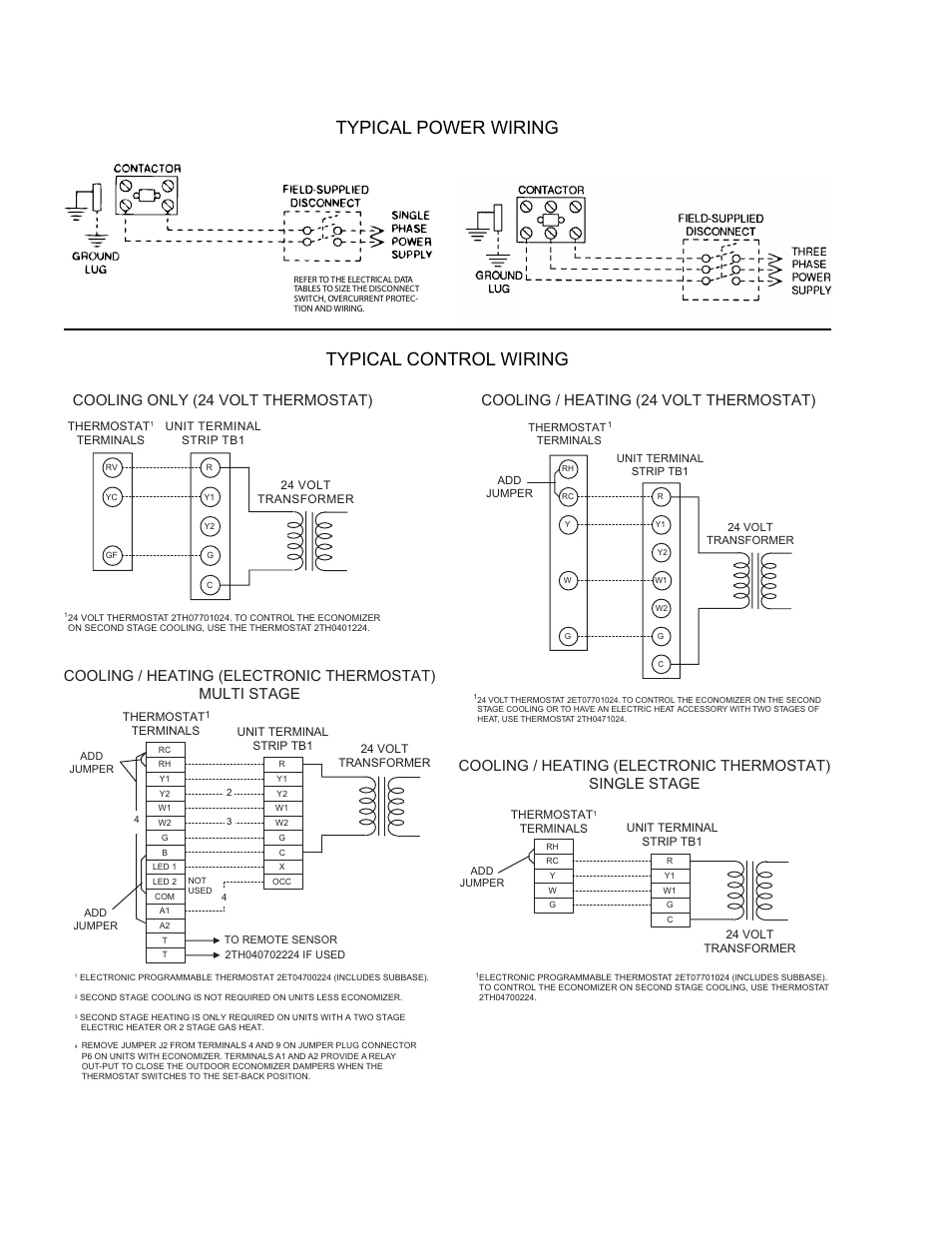

Page 24: Cooling / heating (24 volt thermostat), Figure 2 - typical field power & control wiring
