2.2 The Front Panel LEDs

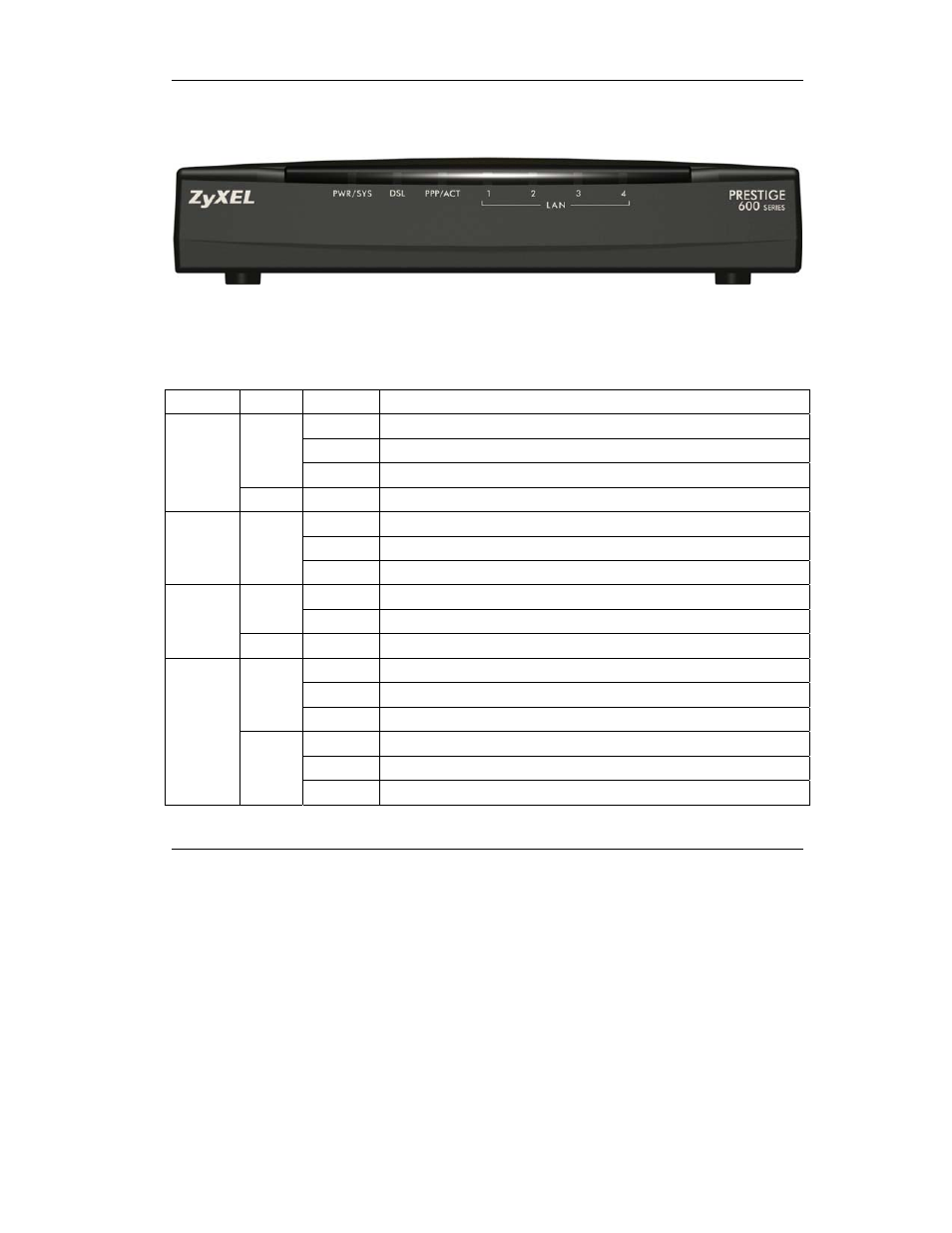

Figure 2 Prestige Front Panel
Refer to the following table for more detailed LED descriptions.
Table 2 Front Panel LED Description
LED COLOR STATUS DESCRIPTION
On The Prestige is receiving power and functioning properly.
Blinking The Prestige is rebooting.
Green
Off The system is not ready or has malfunctioned.
PWR/SYS
Red On Power to the Prestige is too low.
On The Prestige is linked successfully to a DSLAM.
Blinking The Prestige is initializing the DSL line.
DSL Green
Off The DSL link is down.
Blinking The Prestige is sending/receiving data. Green
Off The system is ready, but is not sending/receiving data.
PPP/ACT
Amber On The connection to the PPPoE server is up.
On The Prestige has a successful 10Mb Ethernet connection.
Blinking The Prestige is sending/receiving data.
Green
Off The Prestige does not have 10Mb Ethernet connection.
On The Prestige has a successful 100Mb Ethernet connection.
Blinking The Prestige is sending/receiving data.
LAN 1-4
Amber
Off The Prestige does not have 100Mb Ethernet connection.
