2 Hardware
2.1 Rear Panel Connections

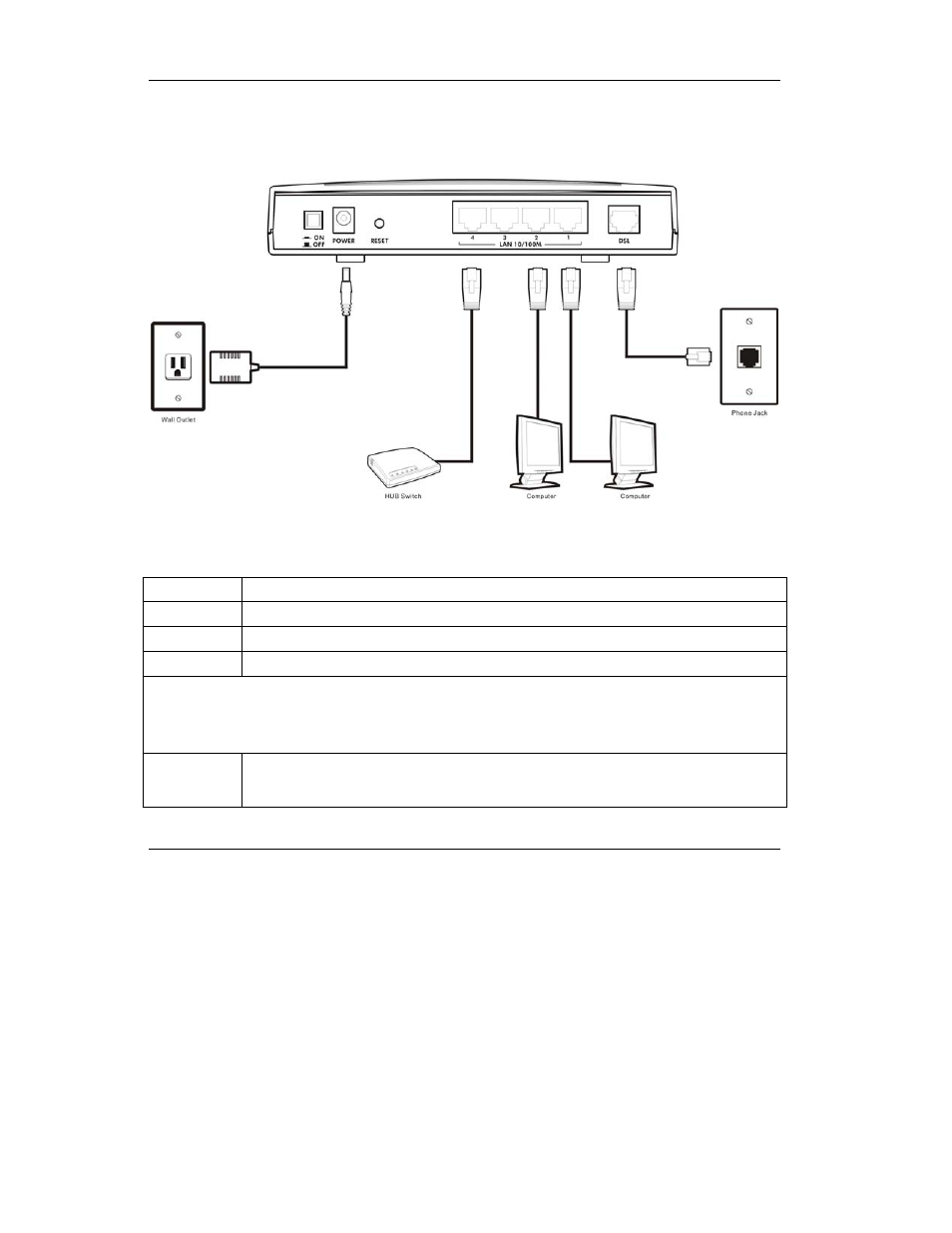

Figure 1 Prestige Hardware Connections
Table 1 Prestige Rear Panel Description
LABEL DESCRIPTION
1. DSL Connect to a telephone jack using the included phone wire.
2. LAN 1..4 Connect to a computer/external hub using an Ethernet cable.
3. POWER Connect to a power source using the power adapter for your region (see your User’s Guide).
After you’ve made the connections, connect the power cable to a power supply and push in the power button to
turn on the Prestige.
The PWR LED turns on. The SYS LED blinks while performing system testing and then turns steady on if the
testing is successful. A LAN LED turns on if a LAN port is properly connected.
RESET You only need to use this button if you’ve forgotten the Prestige’s password. It returns the
Prestige to the factory defaults (password is 1234, LAN IP address 192.168.1.1 etc.; see your
User’s Guide for details).
