Prestige 650H-E
14

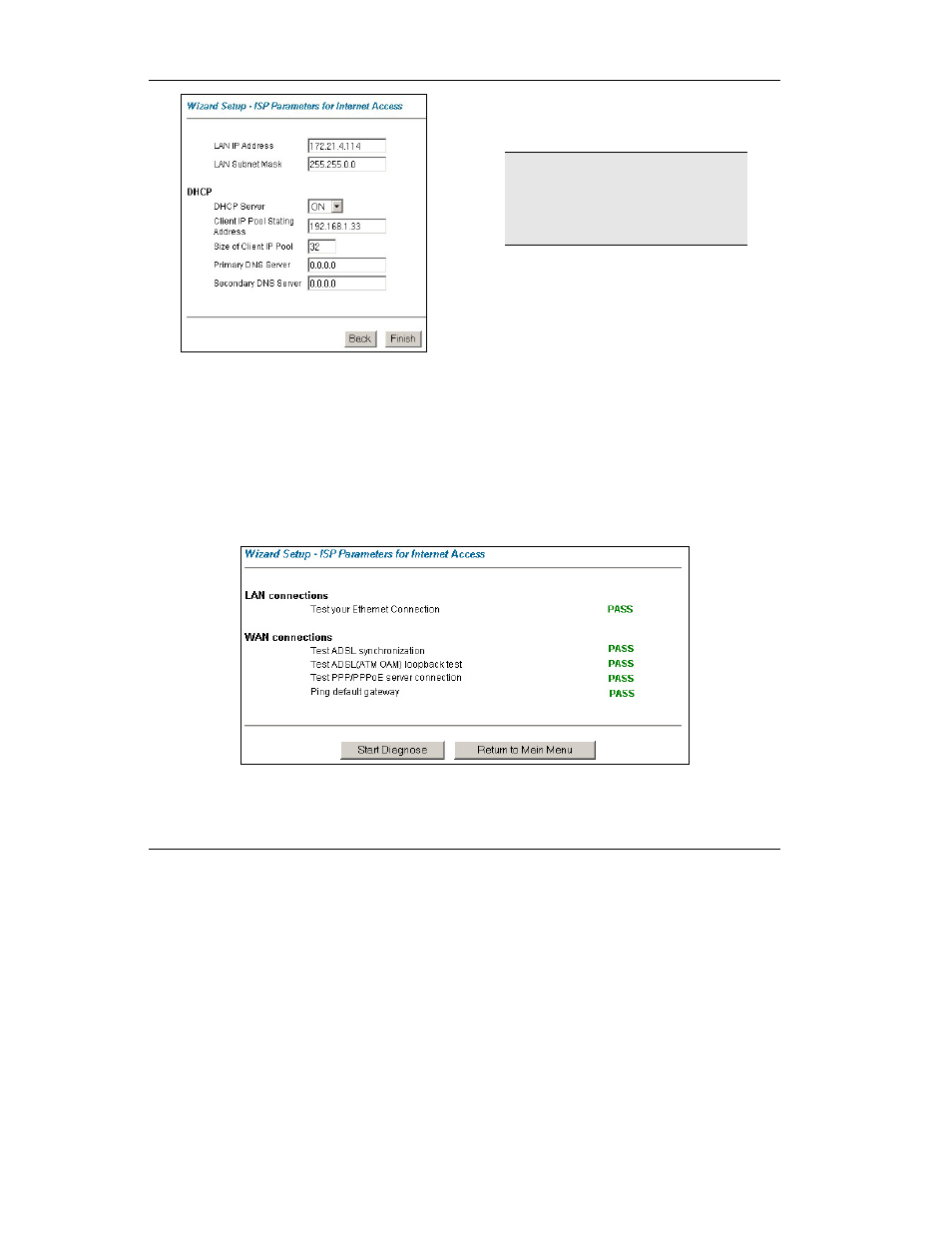

Figure 12 Wizard: LAN Configuration
Enter the IP address of your Prestige in dotted decimal
notation in the LAN IP Address field. For example,
192.168.1.1 (factory default).
If you change the Prestige’s
LAN IP address, you must use
the new IP address if you want
to access the web configurator
again.
Enter a subnet mask in dotted decimal notation in the
LAN Subnet Mask field.
From the DHCP Server drop-down list box, select On
to allow your Prestige to assign IP addresses, an IP
default gateway and DNS servers to computer systems
that support the DHCP client. Select Off to disable
DHCP server.
When DHCP server is used, set the following items:
Specify the first of the contiguous addresses in the IP address pool in the Client IP Pool Starting Address field.
Specify the size or count of the IP address pool in the Size of Client IP Pool field.
Enter the IP address(es) of the DNS server(s) in the Primary DNS Server and/or Secondary DNS Server fields.
Step 2.
The Prestige automatically tests the connection to the computer(s) connected to the LAN
ports. To test the connection from the Prestige to the ISP, click Start Diagnose.
Otherwise click Return to Main Menu to go back to the Site Map screen.
Figure 13 Wizard Screen 4
