TABLE 17: DIMENSIONAL DATA - CU 5, 8, AND 10 TON VERTICAL MODELS

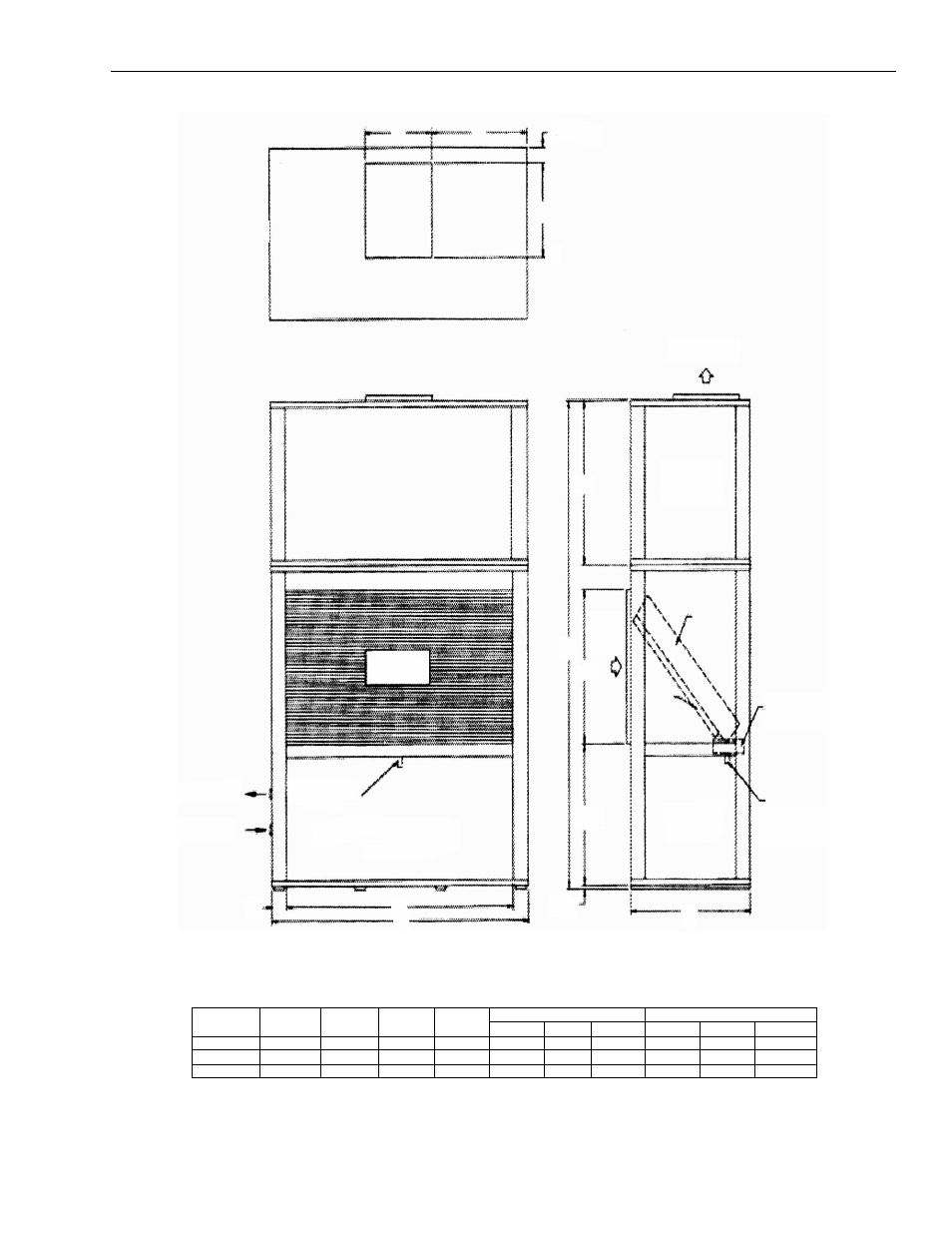

FIGURE 4 - DIMENSIONAL DATA - CU 5, 8, AND 10 TON VERTICAL MODELS
WATER OUT
WATER IN
CONDENSATE
DRAIN
COMPRESSOR/CONDENSER
ACCESS
G
C
F
0.63"
A
B
E
ELECTRICAL
PANEL
FAN MOTOR
ACCESS
FILTER ACCESS
COIL
FILTER
DRAIN
PAN
CONDENSATE
DRAIN
24.00"
D
SUPPLY
AIR
K
H I
J
2.63"
OPTIONAL R/A
GRILLE
A B C D
RETURN AIR SUPPLY AIR
E F G H J K
CU060 26.00 72.00 42.00 23.00 20.00 4.00 34.00 12.25 14.88 13.50
CU096 29.00 82.00 64.00 27.00 25.00 4.00 56.00 14.75 24.63 15.88
CU120 29.00 82.00 64.00 27.00 25.00 4.00 56.00 14.75 24.63 15.88
