Chapter 5 AP Mode
NWD-270N User’s Guide
68
5.3 The Link Info Screen
When you enter AP Mode, the Link Info screen displays, showing the current configuration
and connection status of your NWD-270N access point.

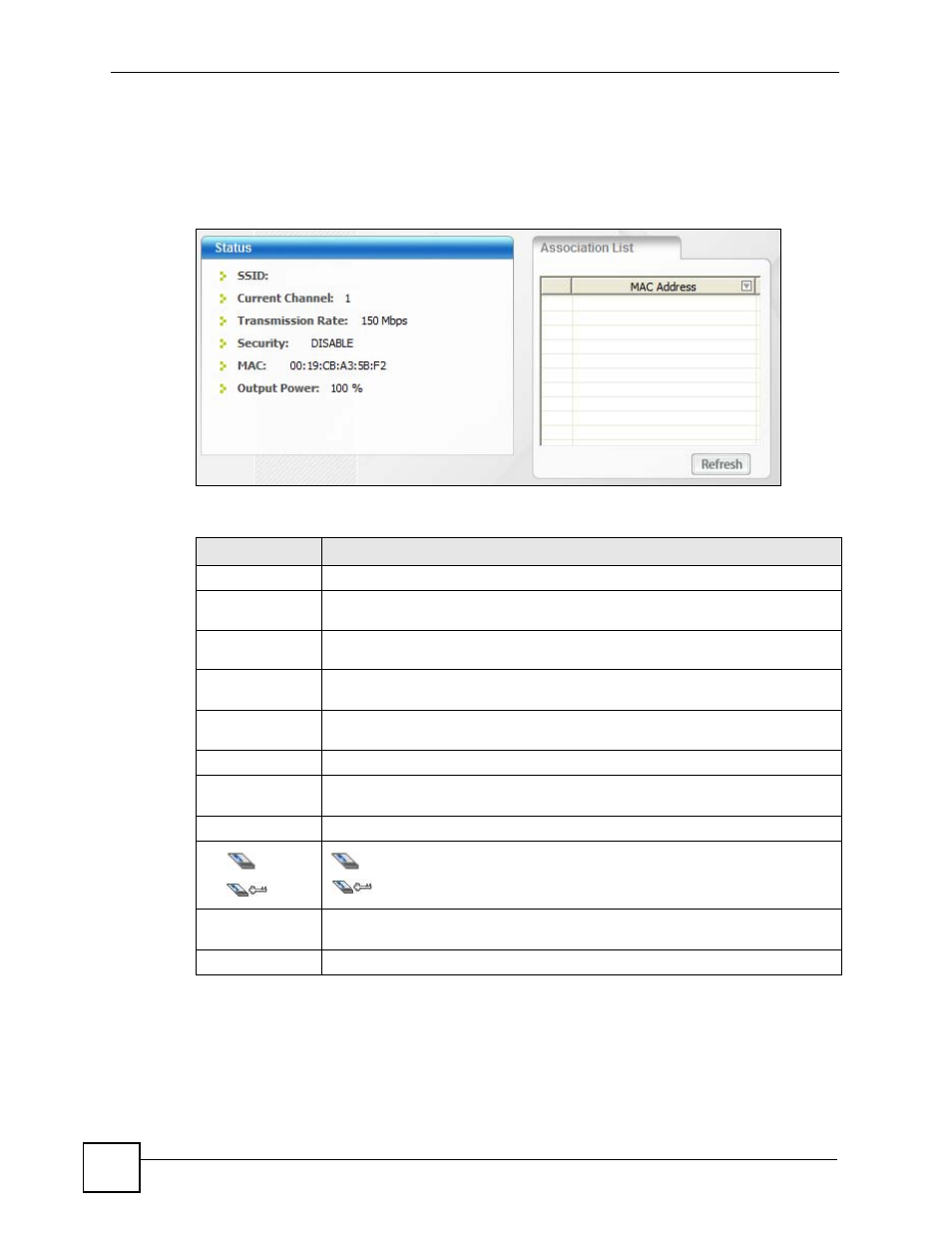

Figure 56 Link Info
The following table describes the labels in this screen.
Table 21 Link Info
LABEL DESCRIPTION
Status
SSID This field displays the name that identifies your NWD-270N in the wireless LAN
network.
Current Chan-
nel This field displays the radio channel the NWD-270N is currently using.
Transmission
Rate This field displays the current transmission rate of the NWD-270N in megabits per
second (Mbps).
Security This field shows whether data encryption is activated (WEP, WPA/WPA2, or WPA-
PSK/WPA2-PSK) or inactive (DISABLE).
MAC This field displays the MAC address of the NWD-270N.
Output Power This field shows the strength of the NWD-270N’s antenna gain or transmission
power.
Association List This table lists the wireless clients that are currently connected to the NWD-270N.
denotes a wireless client without wireless security.
denotes a wireless client with wireless security enabled.
MAC Address This field displays the MAC addresses of a wireless client that is currently con-
nected to the NWD-270N.
Refresh Click Refresh to update this screen.
