Chapter 4 Station Mode
NWD-270N User’s Guide
62
4.7.1 Using PEAP in Vista
Take the following steps to set up WPA, WPA2 or 802.1x security using PEAP in Windows
Vista.
1 Either select the AP to which you want to connect in the Site Survey screen (see
), or configure a profile in the normal way (see
2 In the WPA, WPA2 or 802.1x security screen (see
Section 4.4.1.4 on page 50
and
Section 4.4.1.5 on page 51
), select PEAP as the EAP Type. Note that the Login Name
and Password fields are greyed-out (not available).
3 Click Next.
4 In the Summary screen that appears, click Save.
5 A message similar to the following appears in the bottom-right of your screen. Click the
message.

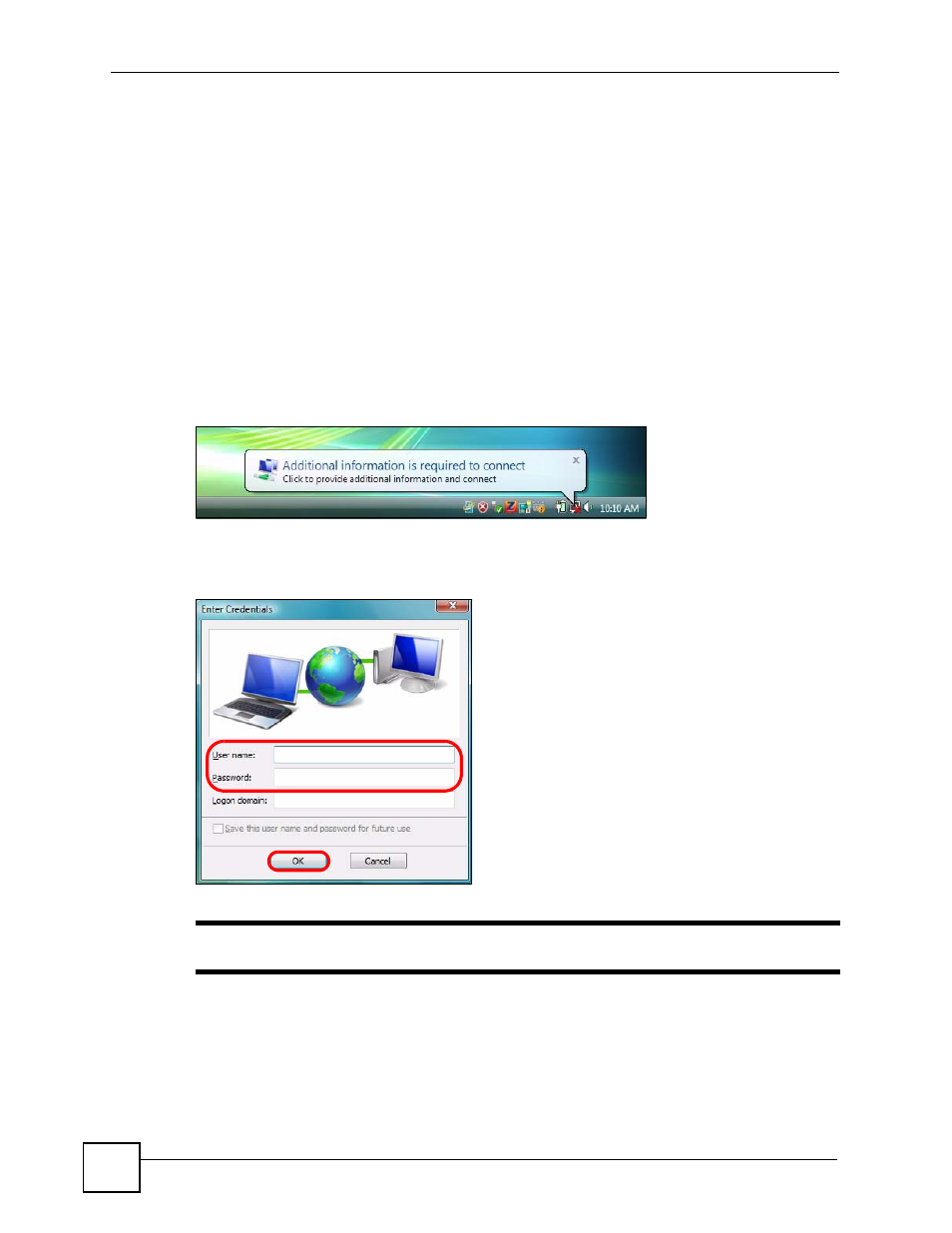

Figure 49 Vista Security: Additional Information Required
6 The Enter Credentials screen displays. Enter your User name and Password for the
network to which you want to connect.
Figure 50 Vista Security: Enter Credentials
"
If you are not sure what to enter, contact your network administrator.
7 Click OK. The Enter Credentials screen disappears and the NWD-270N tries to
connect to the network. The ZyXEL utility’s Link Info screen displays, showing the
connection status (see
). If the Link Info screen displays an active
connection, you have successfully completed the procedure.
