Chapter 1 Getting Started
NWD-270N User’s Guide
16
1.2 About Your NWD-270N
Your NWD-270N is an IEEE 802.11n draft 2.0 compliant wireless LAN adapter. It can also
connect to IEEE 802.11b/g wireless networks. The NWD-270N is WPS (Wi-Fi Protected
Setup) compliant. WPS allows you to easily connect to another WPS-enabled device.
The NWD-270N is a USB adapter which connects to an empty USB port on your computer.
See your NWD-270N’s Quick Start Guide for installation instructions, and see the section on
product specifications in this User’s Guide for detailed information.
1.2.1 Hardware
This section describes the NWD-270N’s physical appearance.

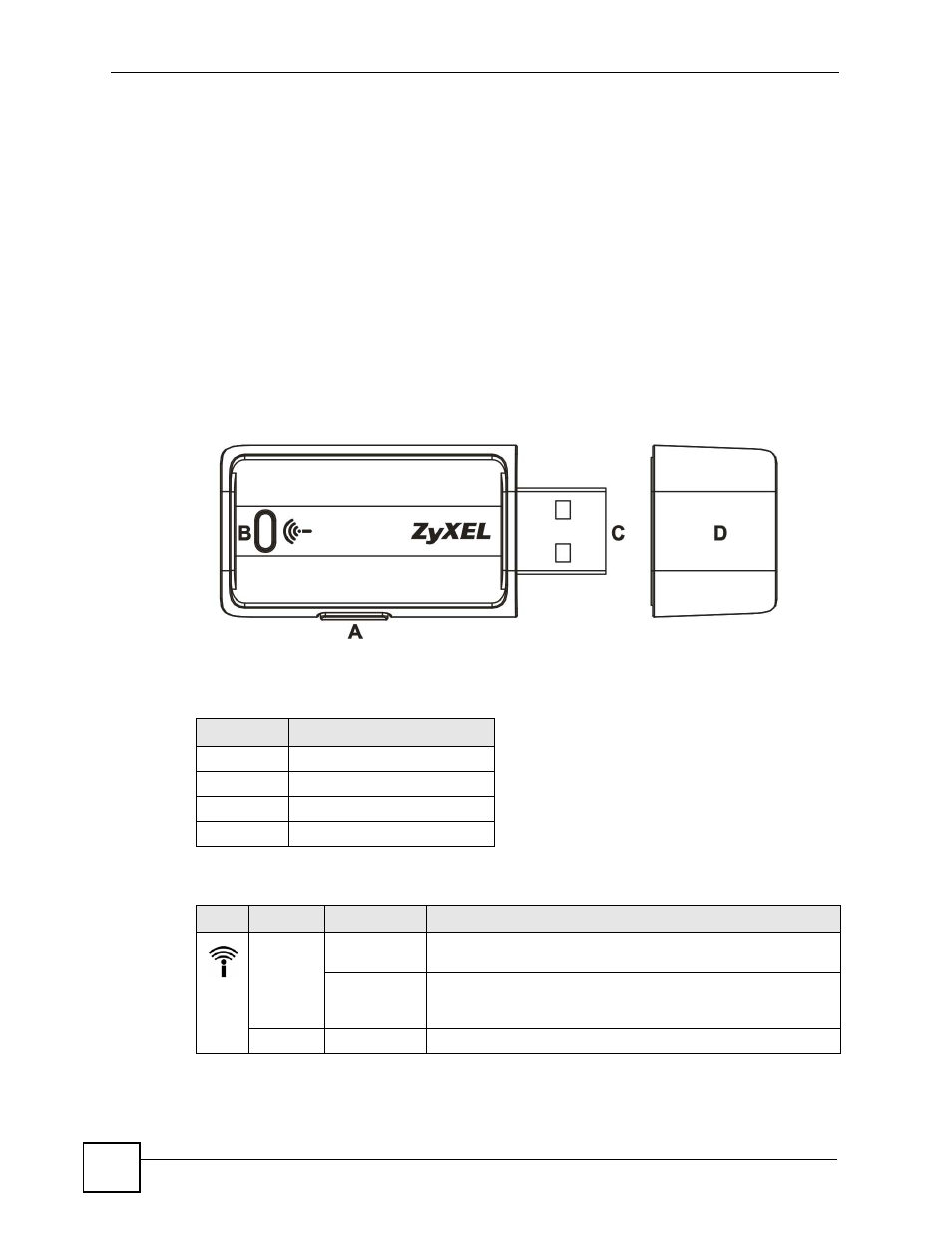

Figure 1 The NWD-270N
The following table describes the NWD-270N.
The following table describes the operation of the NWD-270N’s LEDs.
Table 1 NWD-270N External View
LABEL DESCRIPTION
A WPS button
B LED
C USB connector
D USB connector cap
Table 2 NWD-270N LEDs
LED COLOR STATUS DESCRIPTION
Green Slow Blinking The NWD-270N is turned on, connected to an AP, and is not
transmitting or receiving data.
Rapid Blinking The NWD-270N is turned on, connected to an AP, and is
transmitting or receiving data. It also blinks when the WPS
feature is being used or a WPS connection is being initiated.
Off The NWD-270N is turned off.
