4.3 The Link Info Screen
When the ZyXEL utility starts, the Link Info screen displays, showing the current
configuration and connection status of your NWD-270N.

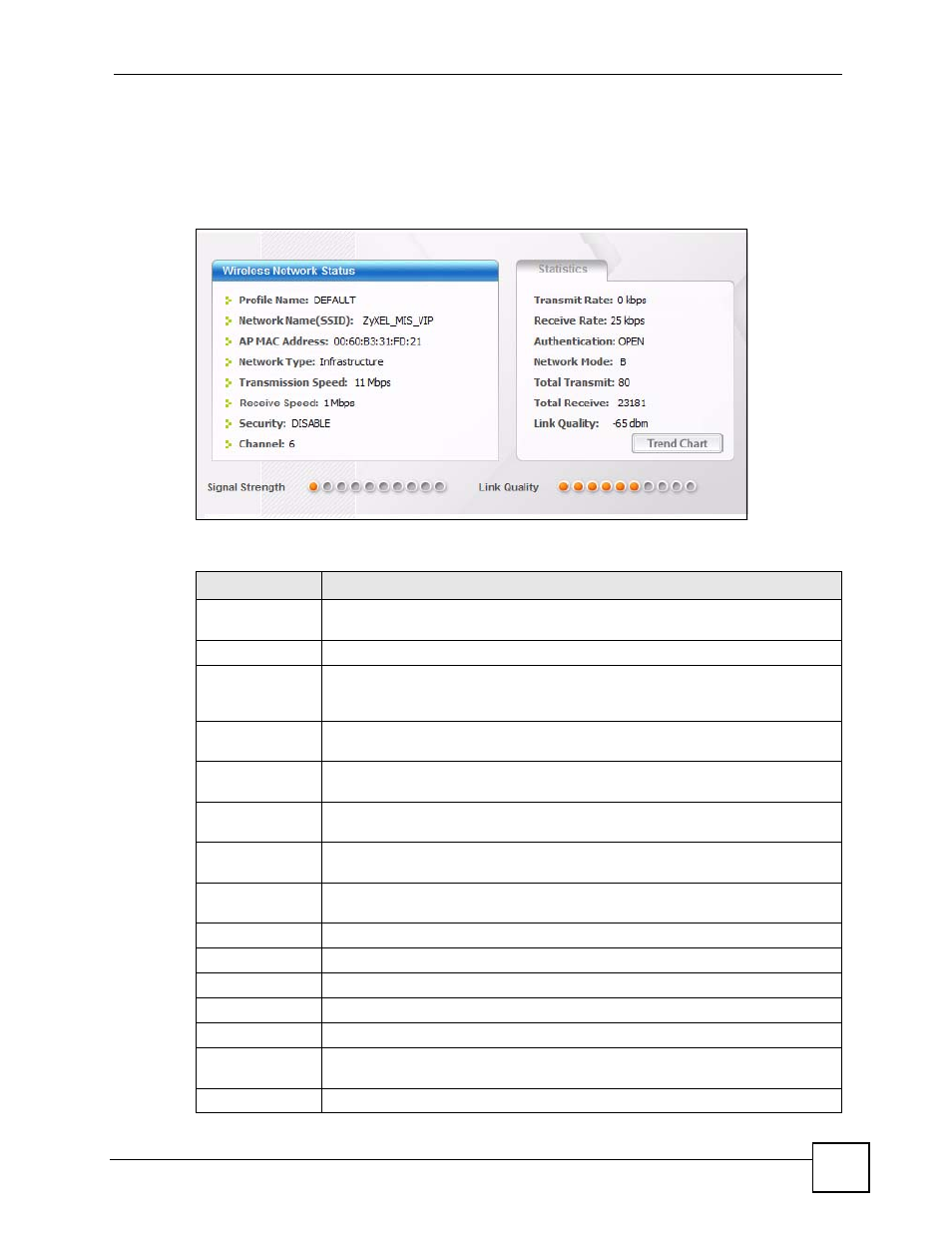

Figure 29 Link Info
The following table describes the labels in this screen.
Table 5 Link Info
LABEL DESCRIPTION
Wireless Network
Status
Profile Name This is the name of the profile you are currently using.
Network
Name (SSID) The SSID identifies the wireless network to which a wireless station is associated.
This field displays the name of the wireless device to which the NWD-270N is
associated.
AP MAC
Address This field displays the MAC address of the AP or peer computer to which the
NWD-270N is associated.
Network Type This field displays the network type (Infrastructure or Ad-Hoc) of the wireless
network.
Transmission
Speed This field displays the current transmission speed of the NWD-270N in megabits
per second (Mbps).
Receive
Speed This field displays the current receive speed of the NWD-270N in megabits per
second (Mbps).
Security This field displays whether data encryption is activated (WEP / 802.1x / WPA /
WPA-PSK / WPA2 / WPA2-PSK) or inactive (DISABLE).
Channel This field displays the radio channel the NWD-270N is currently using.
Statistics
Transmit Rate This field displays the current data transmission rate in kilobits per second (Kbps).
Receive Rate This field displays the current data receiving rate in kilobits per second (Kbps).
Authentication This field displays the authentication method of the NWD-270N.
Network Mode This field displays the wireless standard used by the selected wireless device. It
shows B for 802.11b, G for 802.11g or N for 802.11n.
Total Transmit This field displays the total number of data frames transmitted.
