Chapter 4 Station Mode
NWD-270N User’s Guide
46
4.3.1 Trend Chart
Click Trend Chart in the Link Info screen to display a screen as shown below. Use this
screen to view real-time data traffic statistics.

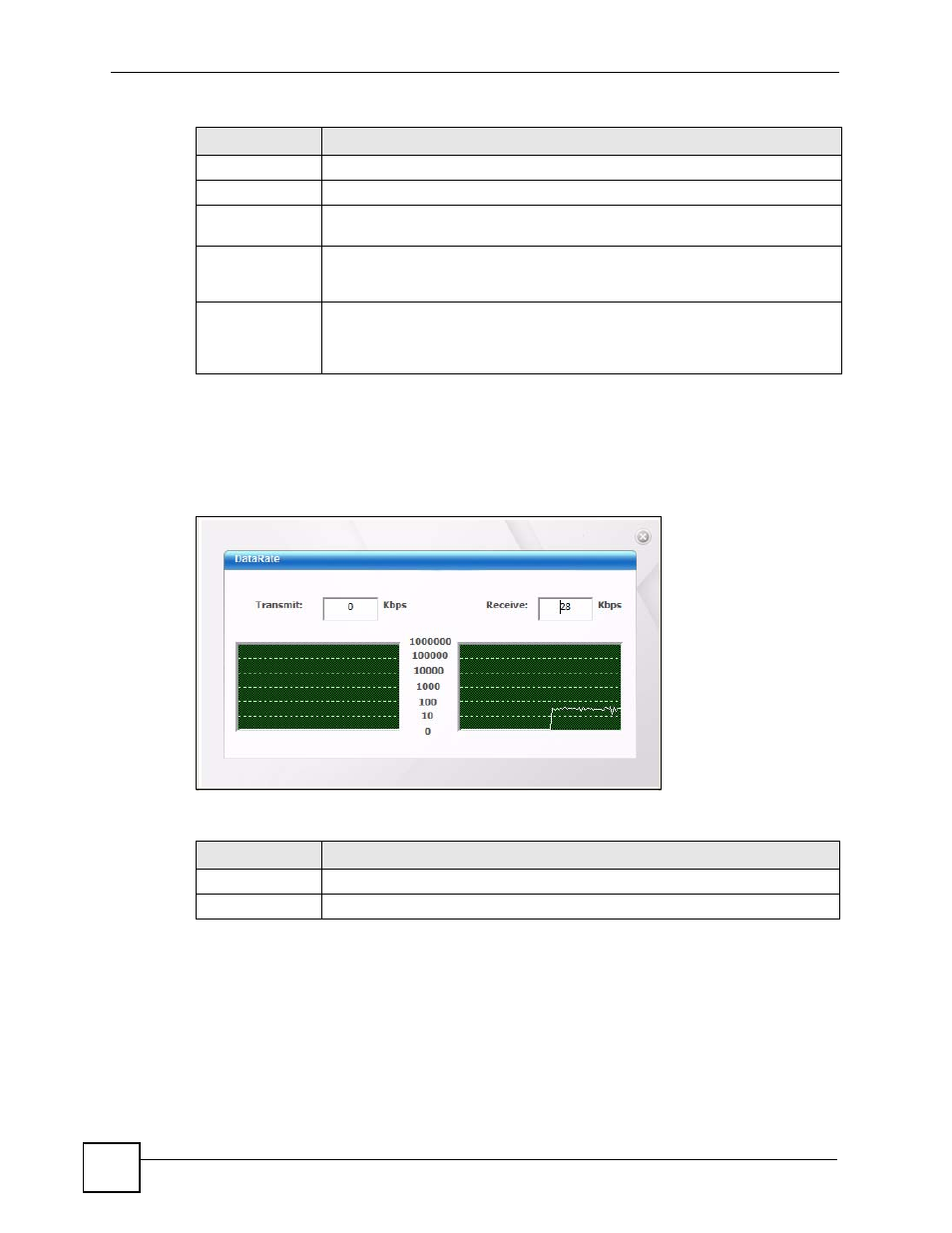

Figure 30 Link Info: Trend Chart
The following table describes the labels in this screen.
Total Receive This field displays the total number of data frames received.
Link Quality This field displays the signal strength of the NWD-270N.
Trend Chart Click this button to display the real-time statistics of the data rate in kilobits per
second (Kbps).
Signal Strength The status bar shows the strength of the signal. The signal strength mainly
depends on the antenna output power and the distance between your NWD-270N
and the AP or peer computer.
Link Quality The status bar shows the quality of wireless connection. This refers to the
percentage of packets transmitted successfully. If there are too many wireless
stations in a wireless network, collisions may occur which could result in a loss of
messages even though you have high signal strength.
Table 5 Link Info (continued)
LABEL DESCRIPTION
Table 6 Link Info: Trend Chart
LABEL DESCRIPTION
Transmit This field displays the current data transmission rate in kilobits per second (Kbps).
Receive This field displays the current data reception rate in kilobits per second (Kbps).
