Chapter 4 Station Mode
NWD-270N User’s Guide
63
4.7.2 Using TLS in Vista
Take the following steps to set up WPA, WPA2 or 802.1x security using TLS in Windows
Vista.
1 Either select the AP to which you want to connect in the Site Survey screen (see
), or configure a profile (see
) in the normal way.
2 In the WPA, WPA2 or 802.1x security screen, select TLS as the EAP Type. Note that
the Login Name, Certificate and Validate Server Certificate fields are greyed-out (not
available).
3 Click Next.
4 In the Summary screen, click Save.
5 A message similar to the following appears in the bottom-right of your screen. Click the
message.

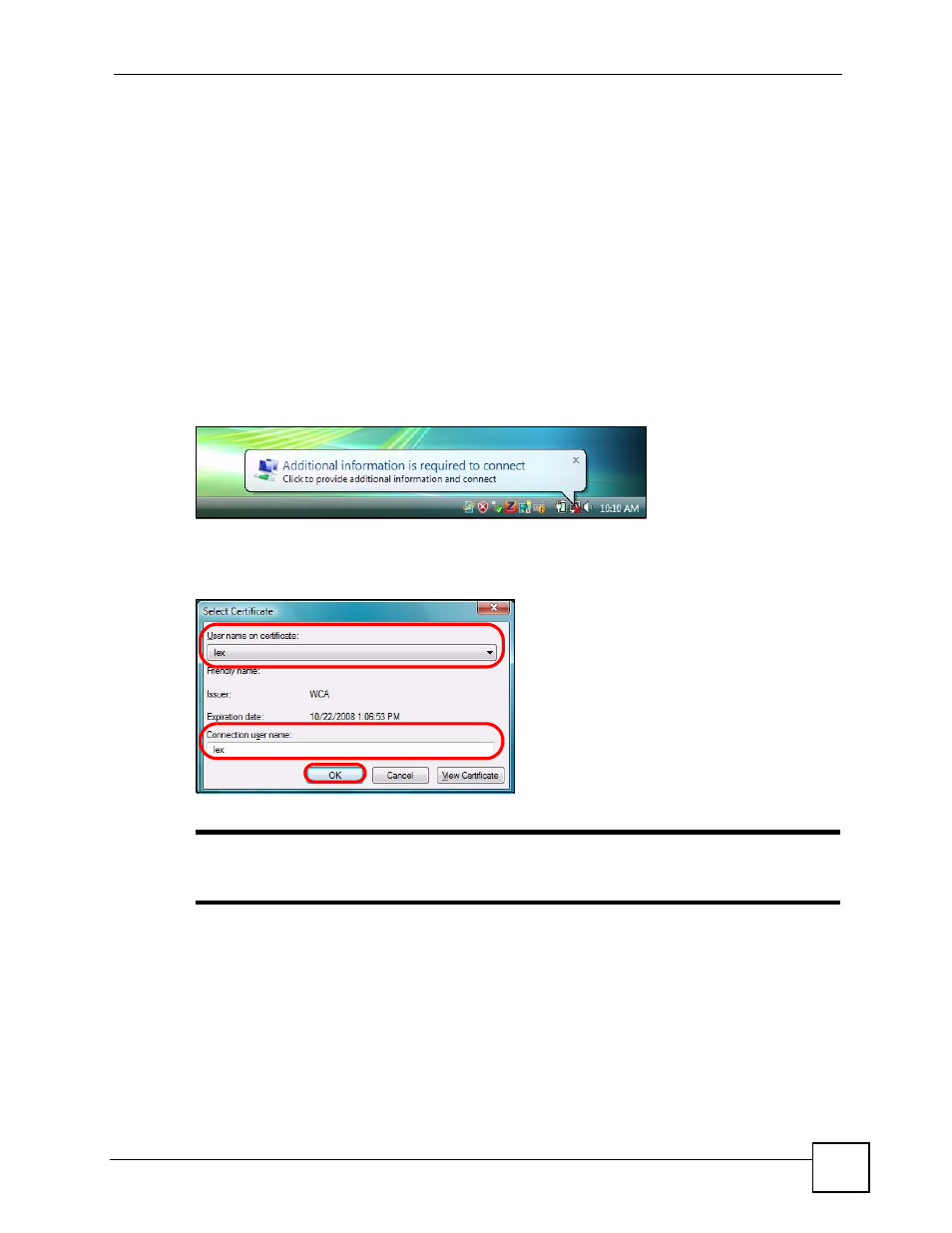

Figure 51 Vista Security: Additional Information Required
6 The Select Certificate screen displays. Select the certificate you want to use in order to
authenticate with the server, and enter your username.
Figure 52 Vista Security: Select Certificate
"
If you do not have the right certificate, or are not sure which certificate you
should use, contact your network administrator.
7 Click OK. The Select Certificate screen disappears and the NWD-270N tries to connect
to the network. The ZyXEL utility’s Link Info screen displays, showing the connection
status (see
). If the Link Info screen displays an active
connection, you have successfully completed the procedure.
