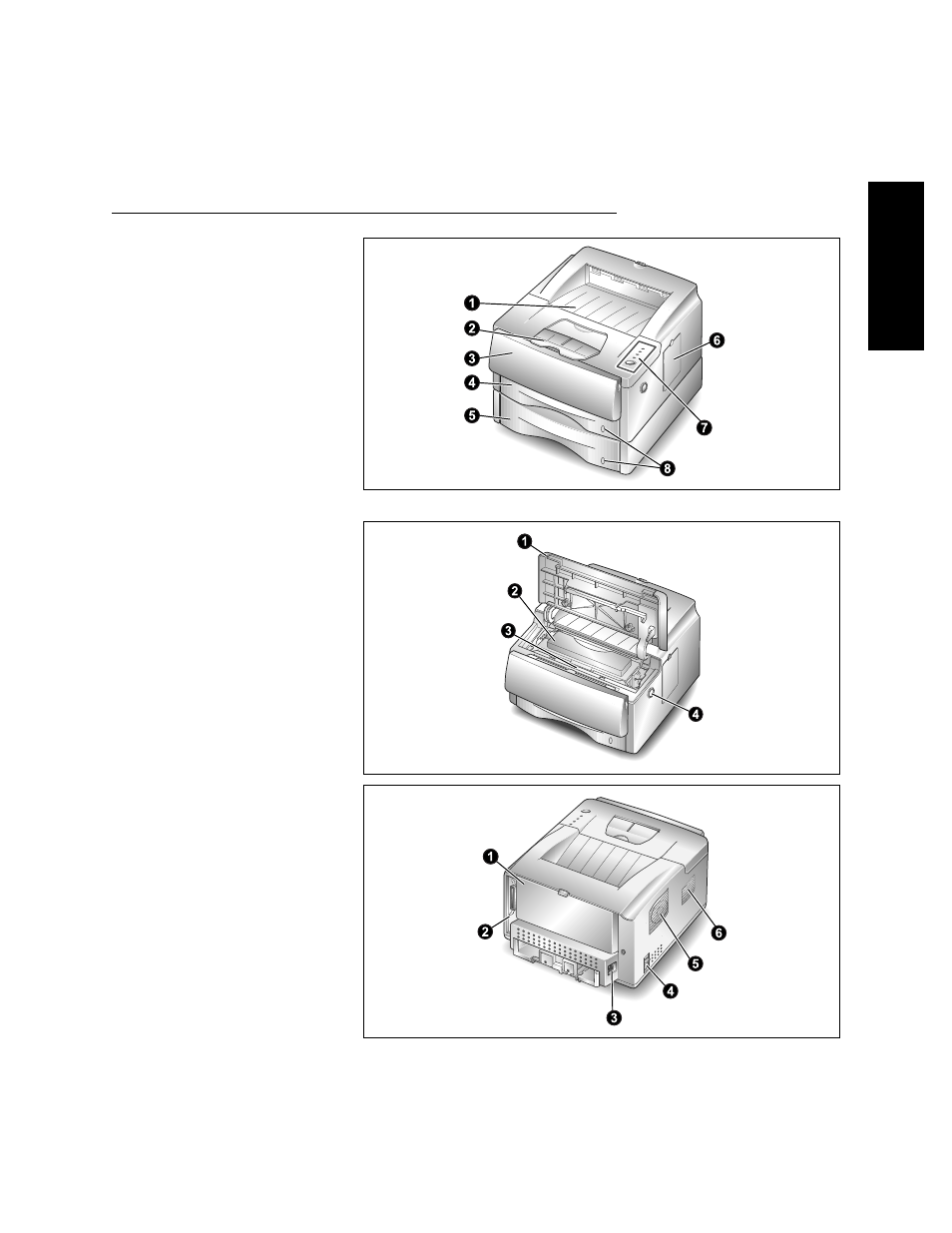

Printer Components
Front View
➊ Face down output stacker
➋ Paper support
➌ Multi-Purpose Tray (MP Tray)
➍ Tray 1 (250 sheet)
➎ Tray 2 (250 sheet, optional)
➏ Control board cover
(provides access to SIMM slots for
adding/removing additional
memory)
➐ Control panel
➑ Paper level indicators
Inside Front View
➊ Top cover
➋ Laser print cartridge
➌ Serial number
➍ Top cover release button
Rear View
➊ Rear cover (with face-up output
stacker inside)
➋ Printer cable connectors
➌ Power cord connector
➍ Power switch
➎ Exhaust fan
➏ Cooling vent
