Load Media in Cutter Mode
6/30/06
105SL User Guide
11342L-001 Rev. A
Load Media in Cutter Mode
Refer to
. The following instructions pertain to printers with the cutter option only.

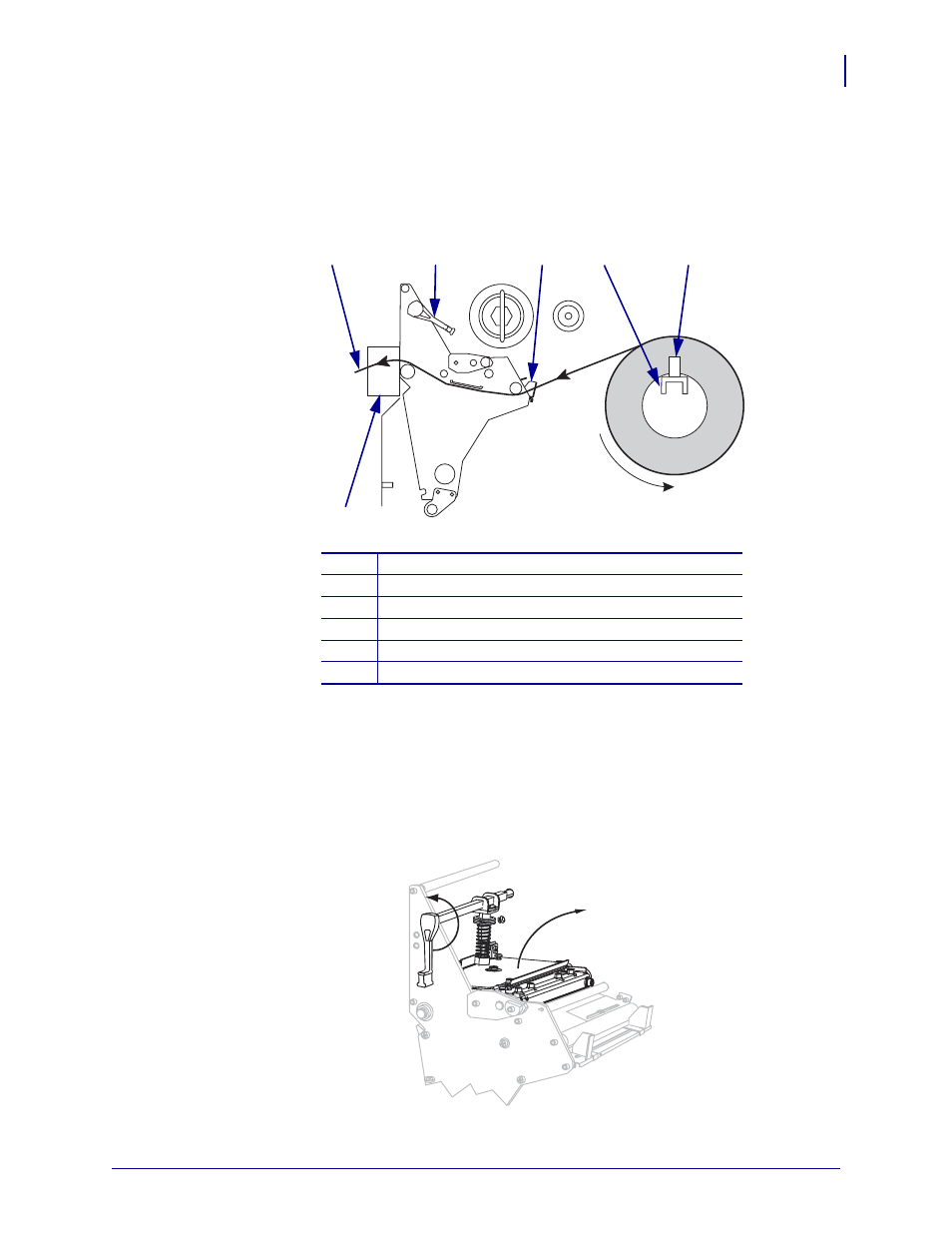

Figure 20 • Cutter Mode
To load media in Cutter mode, complete these steps:
1.
Set the printer to Cutter mode. See
for instructions.
2.
Insert media into the printer. See
Insert Media into the Printer on page 31
for instructions.
3.
Open the printhead assembly by rotating the printhead-open lever counterclockwise.
1
Printed label
2
Printhead-open lever
3
Outer media guide
4
Media supply hanger
5
Media supply guide
6
Cutter
1
2
3
4
5
6
