Operations
Load Media in Rewind Mode
50
11342L-001 Rev. A
105SL User Guide
6/30/06
To load media in Rewind mode, complete these steps:
1.
Is the rewind plate installed as shown in
?
2.
Set the printer to Rewind mode. See
for instructions.
3.
Insert media into the printer. See
Insert Media into the Printer on page 31
for instructions.
If…
Then…
Yes
Continue with the next step
No
a.
Remove the rewind plate from its storage location in front of the print
mechanism inside the media compartment.
b.
Invert the rewind plate so that the top lip (
1
) and the adjustable hook
plate (
2
) point down.
c.

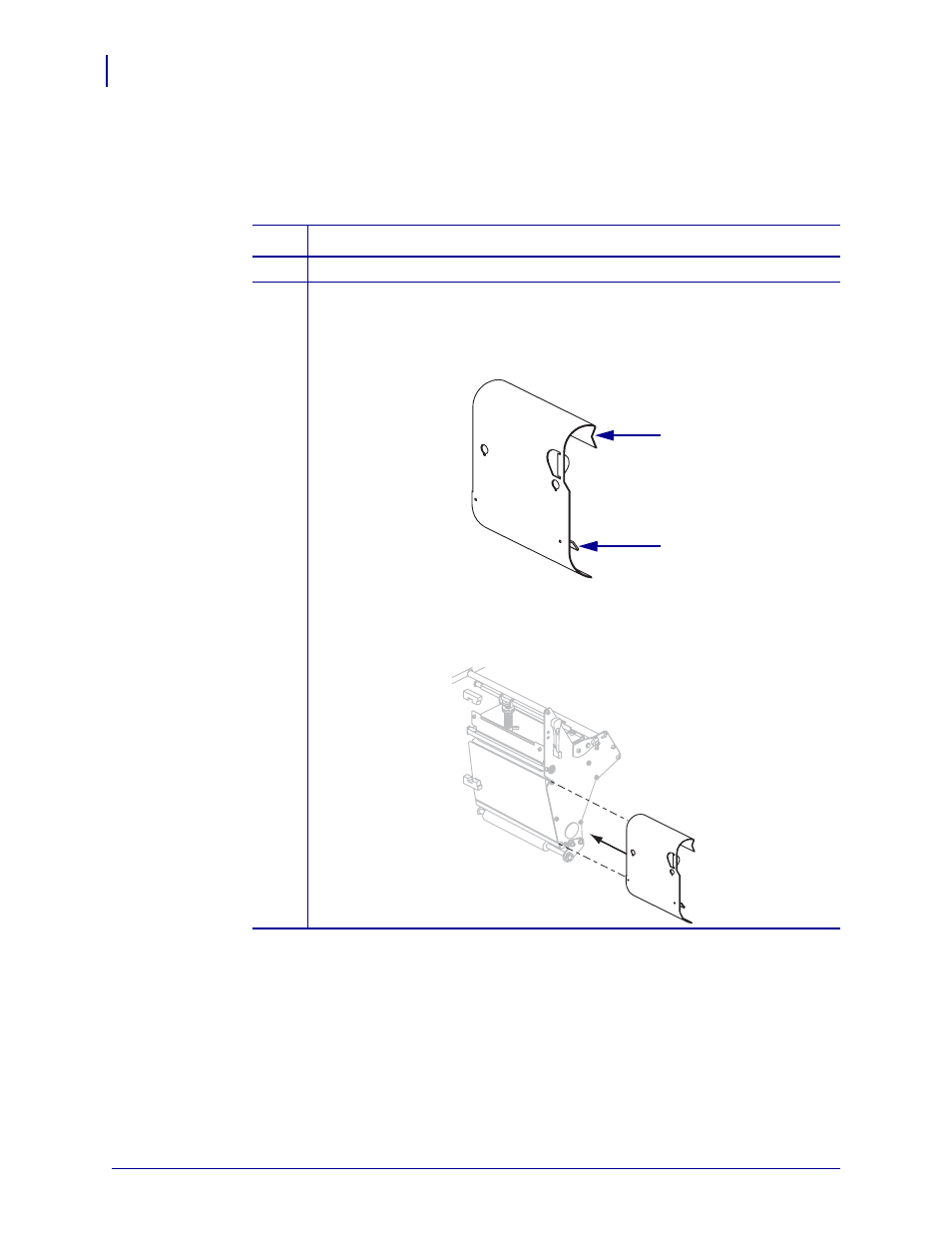

Engage the top lip and the adjustable hook plate into the two mounting
slots on the side plate of the print mechanism. Slide in the rewind plate as
far as it will go.
1
2
