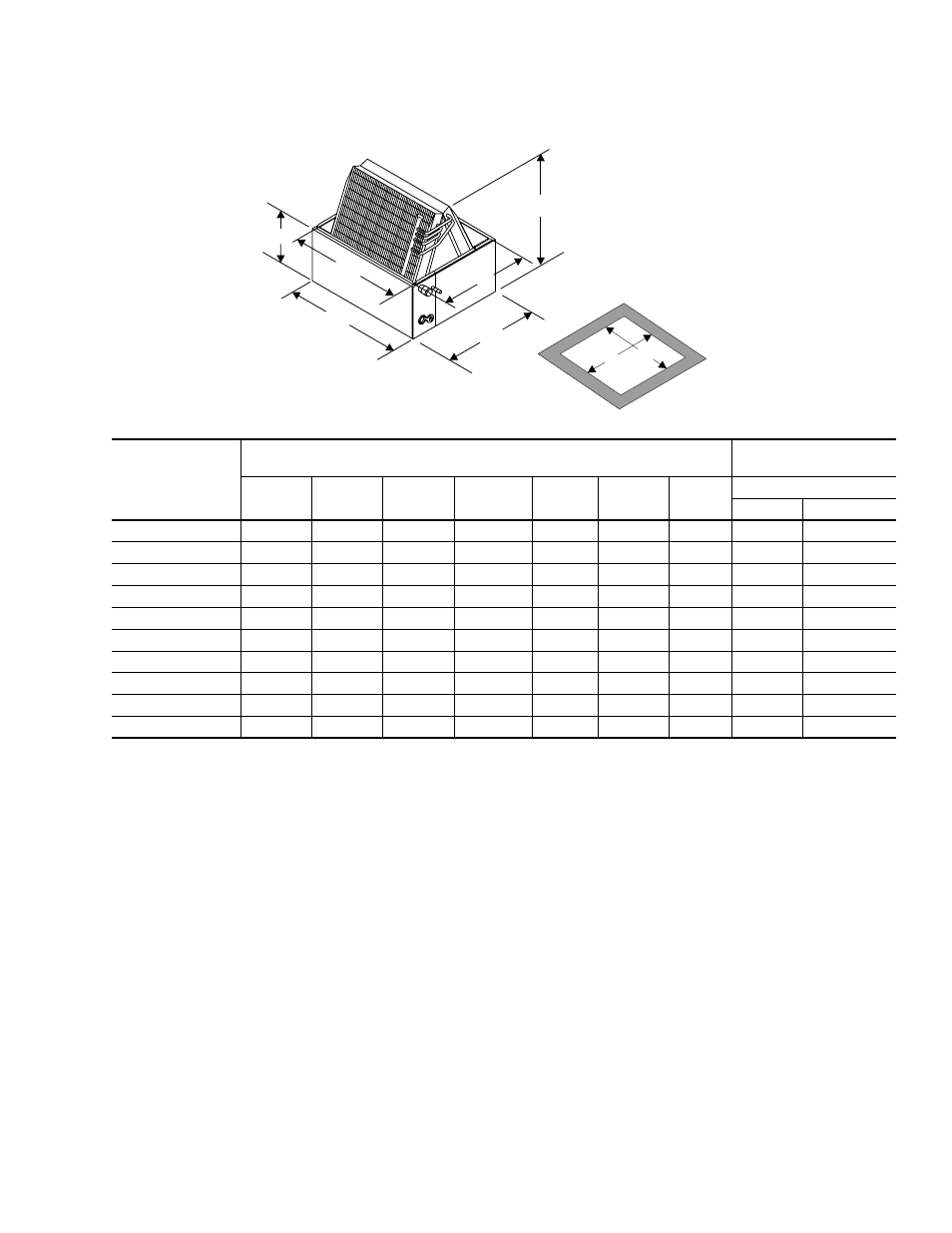

G1UA UPFLOW CASED COIL
D
20-3/16
22
A
10
C
20-7/8
B
MODEL
DIMENSIONS — INCHES
REFRIGERANT
CONNECTIONS
A B C D E F G
LINE SIZE
LIQUID VAPOR
G1UA024S14 14-1/2 14-1/2 13-3/8 13-1/2 - - - 3/8 5/8
G1UA024S17 17-1/2 14 16-3/8 16-1/2 - - - 3/8 5/8
G1UA030S14 14-1/2 16-5/8 13-3/8 13-1/2 - - - 3/8 3/4
G1UA036S14 14-1/2 19-7/8 13-3/8 13-1/2 - - - 3/8 3/4
G1UA036S17 17-1/2 18-3/8 16-3/8 16-1/2 - - - 3/8 3/4
G1UA036S21 21 17-7/8 19-7/8 20 - - - 3/8 3/4
G1UA048S17 17-1/2 25-5/8 16-3/8 16-1/2 - - - 3/8 7/8
G1UA048S21 21 22-5/8 19-7/8 20 - - - 3/8 7/8
G1UA060S21 21 26-3/8 19-7/8 20 - - - 3/8 7/8
G1UA060S24 24-1/2 26-1/8 23-3/8 23-1/2 - - - 3/8 7/8
