Subject to change without notice. Printed in U.S.A. 036-21145-003 Rev. A (0403)
Copyright © by York International Corp. 2003. All rights reserved. Supersedes: 036-21145-002 Rev. a (0203)
Unitary 5005 Norman
Products York OK
Group Drive 73069

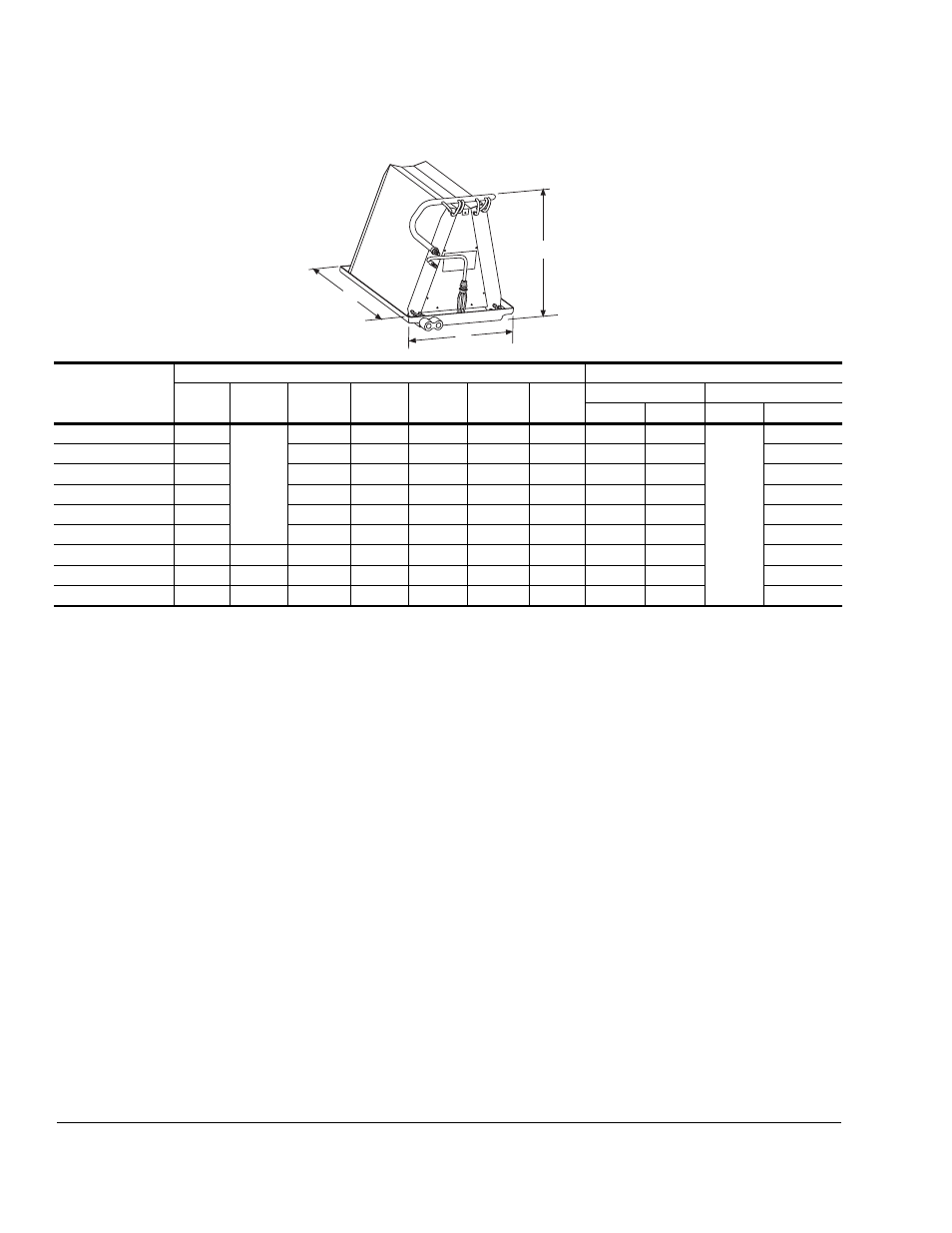

G1NA COIL
MODELS
DIMENSIONS — INCHES REFRIGERANT CONNECTIONS
A B C D E F G
QUICK-CONNECT LINE SIZE
LIQUID VAPOR LIQUID VAPOR
G1NA024S17G 16-1/4
19-7/8
14-5/8 — — — — — —
3/8
3/4
G1NA030S17H 16-1/4 15-3/4 — — — — — — 3/4
G1NA030S17K 16-1/4 17-7/8 — — — — — — 3/4
G1NA036S17J 16-1/4 19-5/8 — — — — — — 3/4
G1NA036S17L 16-1/4 19-7/8 — — — — — — 7/8
G1NA036S21C 19-3/8 19-1/8 — — — — — — 3/4
G1NA042S24W 21-3/8 20-3/8 23-7/8 — — — — — — 7/8
G1NA048S21D 19-3/8 19-7/8 19-3/8 — — — — — — 7/8
G1NA060S24T 21-3/8 20-3/8 24-5/8 — — — — — — 7/8
C
A
B
