127878-YIM-B-0606
10 Unitary Products Group

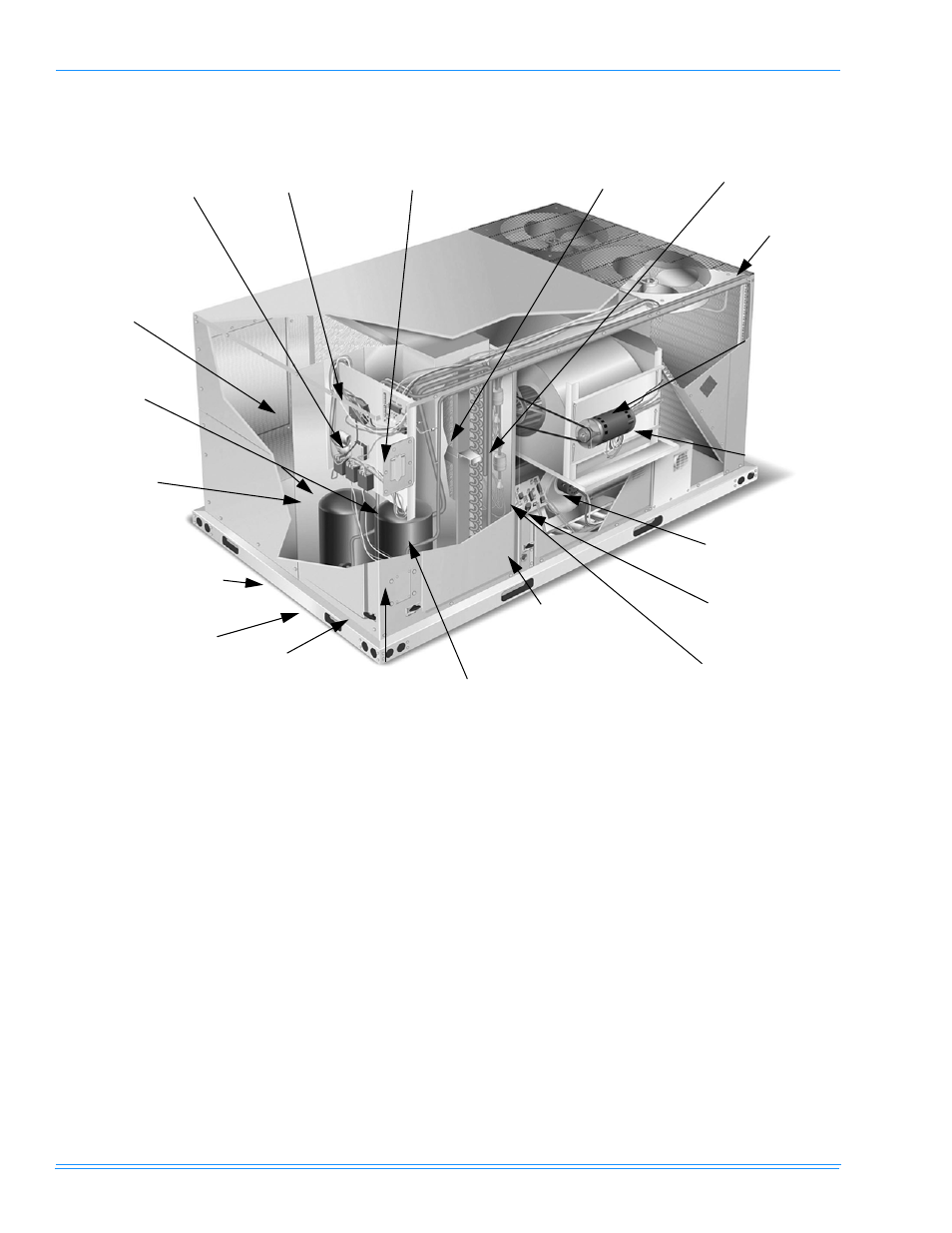

FIGURE 4 - PREDATOR MagnaDRY™ DR090 & 120 COMPONENT LOCATION
Slide-Out Drain
Pan w/ Steel 3/4”
NPT, Female
Connection
Power Ventor Motor
Compressor #1 Access (High-Eff
Compressor w/ crankcase heater)
Belt-Drive
Blower Motor
Terminal Block
for Hi-Voltage
Connection
“Simplicity”™ Control Board
w/ Screw Connector for T-stat
Wiring and Network
Connection
Disconnect Location
(Optional Disconnect Switch) Filter Access
(2” Filters)
Filter-Drier (Solid Core)
Condenser
Section
Two-stage gas heat-
ing to maintain
warm, comfortable
temperature
Intelligent control board for
safe and efficient operation Side entry power
and control wiring
knockouts
Tool-less
door latch
Base Rails w/ Forklift Slots (3
Sides) & Lifting Holes
Second model
nameplate inside
hinged access
panel
Compressor
#2 Access
(High-Eff
Compressor
w/ crankcase
heater)
Roof curbs in eight- and
fourteen-inch heights.
Roof curbs for transition-
ing fromSunline footprint
to the DM/DH/DR Series
footprint are also avail-
able (field-installed
accessory)
Dual stage
cooling for
maximum
comfort
Slide-out
motor and
blower
assembly for
ease of
adjustment
and service
