ENGLISH
OUTDOOR UNITS
• Keep this unit away from direct radiation of the sun or other heaters.
• If unavoidable, please cover it with a shelter.
• In places near coast or with a high attitude where the wind is violent, please install the outdoor unit against the wall
to ensure normal performance.
Use a baffle when necessary.
• In the case of extremely strong wind, please prevent the air from flowing backwards into the outdoor unit.
(Refer to chart 1)
• Locate the outdoor unit as close to the indoor unit as possible.
• The minimum distance between the outdoor unit and obstacles described in the installation chart does not mean
that the same is applicable to the situation of an airtight. Leave open two of three directions A, B, C.
CAUTIONS

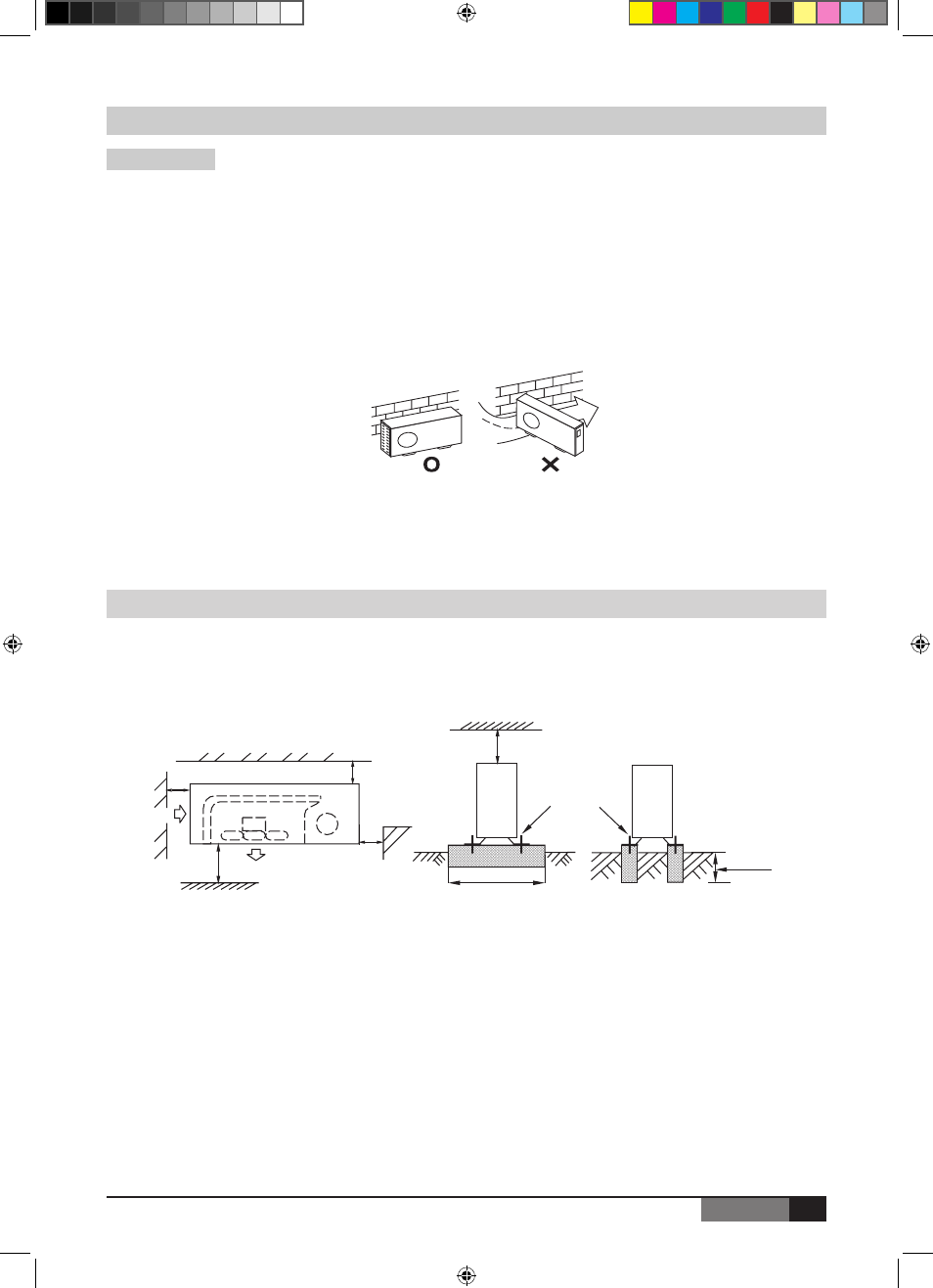

Chart 1
NECESSARY ROOM FOR INSTALLATION AND MAINTENANCE
(Refer to chart 2, chart 3)
Remove the obstacles nearby to prevent the performance from being impeded by too little of air circulation.
The minimum distance between the outdoor unit and obstacles described in the installation chart does not mean that
the same is applicable to the situation of an airtight room. Leave open two of the three directions (A, B, C).
Chart 2 Chart 3
(Wall or obstacle)
Air inlet
>30 cm.
Air inlet
>30 cm.
Maintain channel
>60 cm.
Air outlet
Necessary width
Fix with bolt
>60 cm.
Deep foundation
>200 cm.
Strong wind
