IPR Card Configuration Screens and Settings
IPR Card
5.6.9
Frame Relay Port LMI Screen
The Frame Relay Port LMI screen Figure 5-17, shown below displays the information relating
to the DCE and DTE statistics for port C1-C3 depending on which port is chosen. By pressing
the “C”(Clear) key all information displayed on the current screen will be cleared (erased).

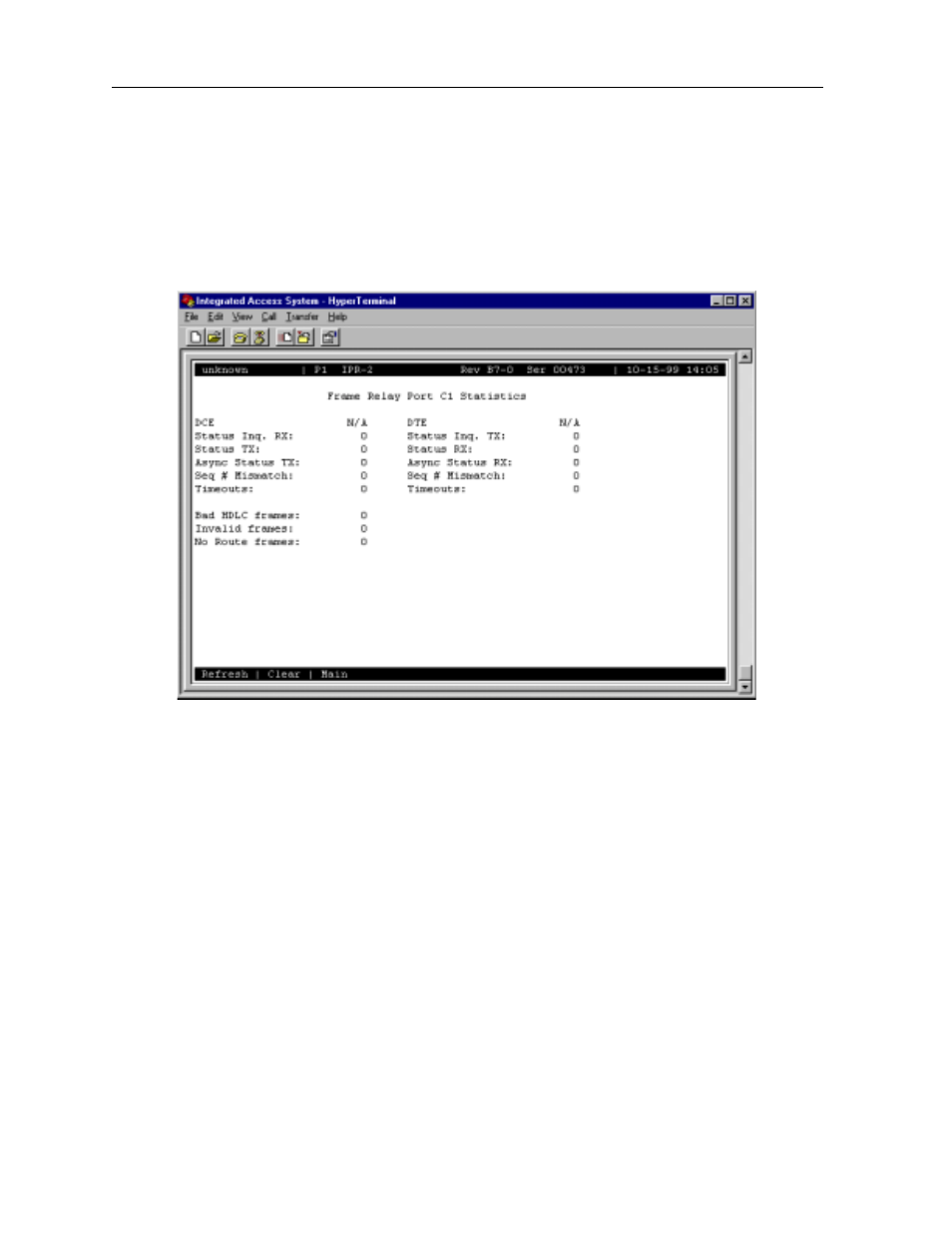

Figure 5-17. IPR 10B2 and 10BT Frame Relay Port LMI Screen
