Zhone Technologies 800 - Manual (Page 117)

Server Cards IMACS System Release 5.1.6 5-11
IPR Card IPR Card Configuration Screens and Settings
5.6 IPR Card Configuration Screens and Settings
5.6.1 IPR 10B2 (883060) and 10BT (883160) Cards Main Screen
IP Interface Menu is the main screen of IPR 10B2 and IPR 10BT cards. It describes all the
directly connected logical IP networks that can be associated with any of the physical
interfaces (Ethernet and/or Frame Relay PVCs). Figure 5-9 shows a typical IP interface screen
for the IPR 10B2 and IPR 10BT cards.

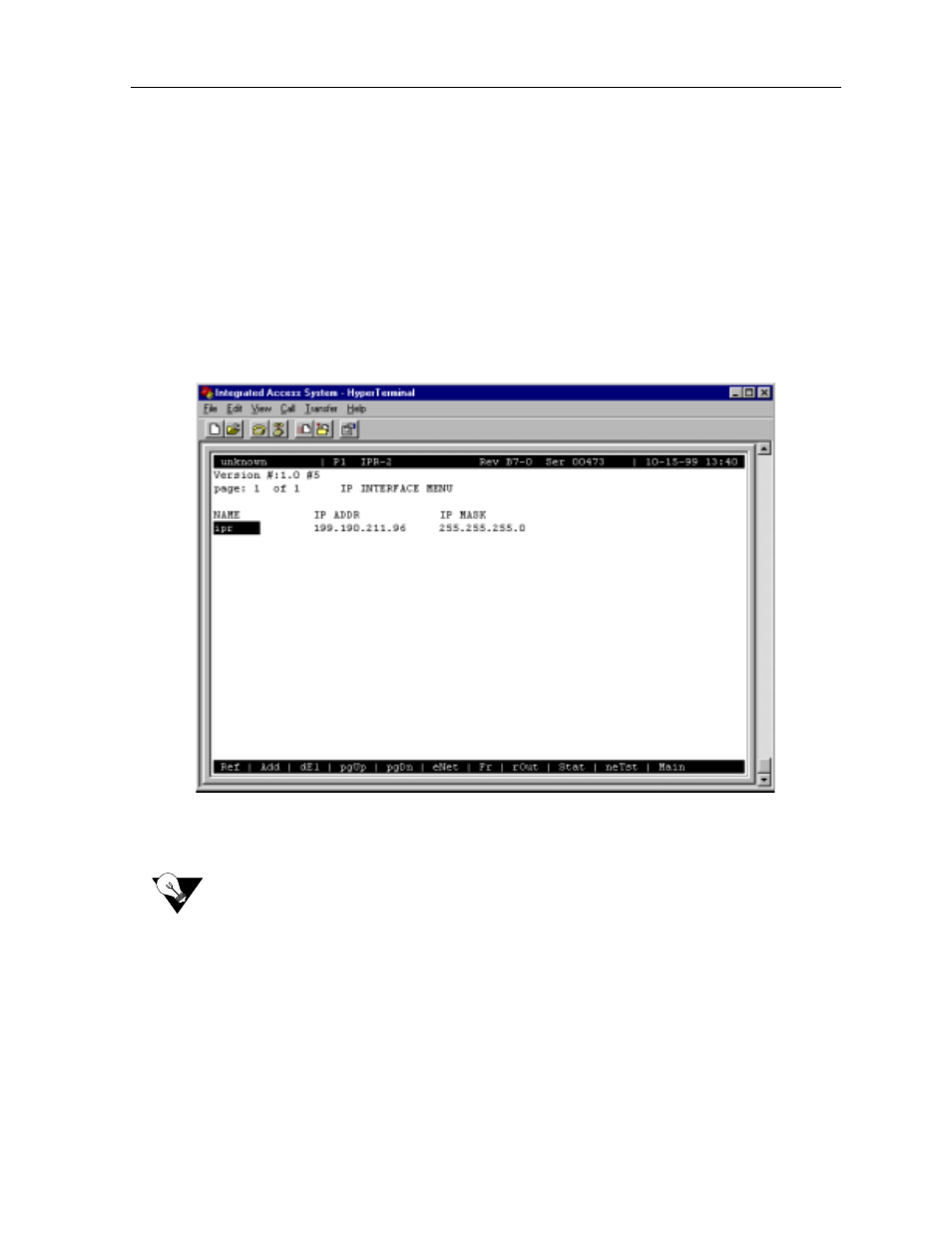

Figure 5-9. IPR 10B2 and 10BT Card Interface Main Screen
Note: All screens shown from this point forward will display the IPR-2 card at the top of the
screen. The IPR-T screens are exactly identical.
