P-660H/HW-T Series User’ Guide

47

Chapter 1 Getting To Know Your Prestige

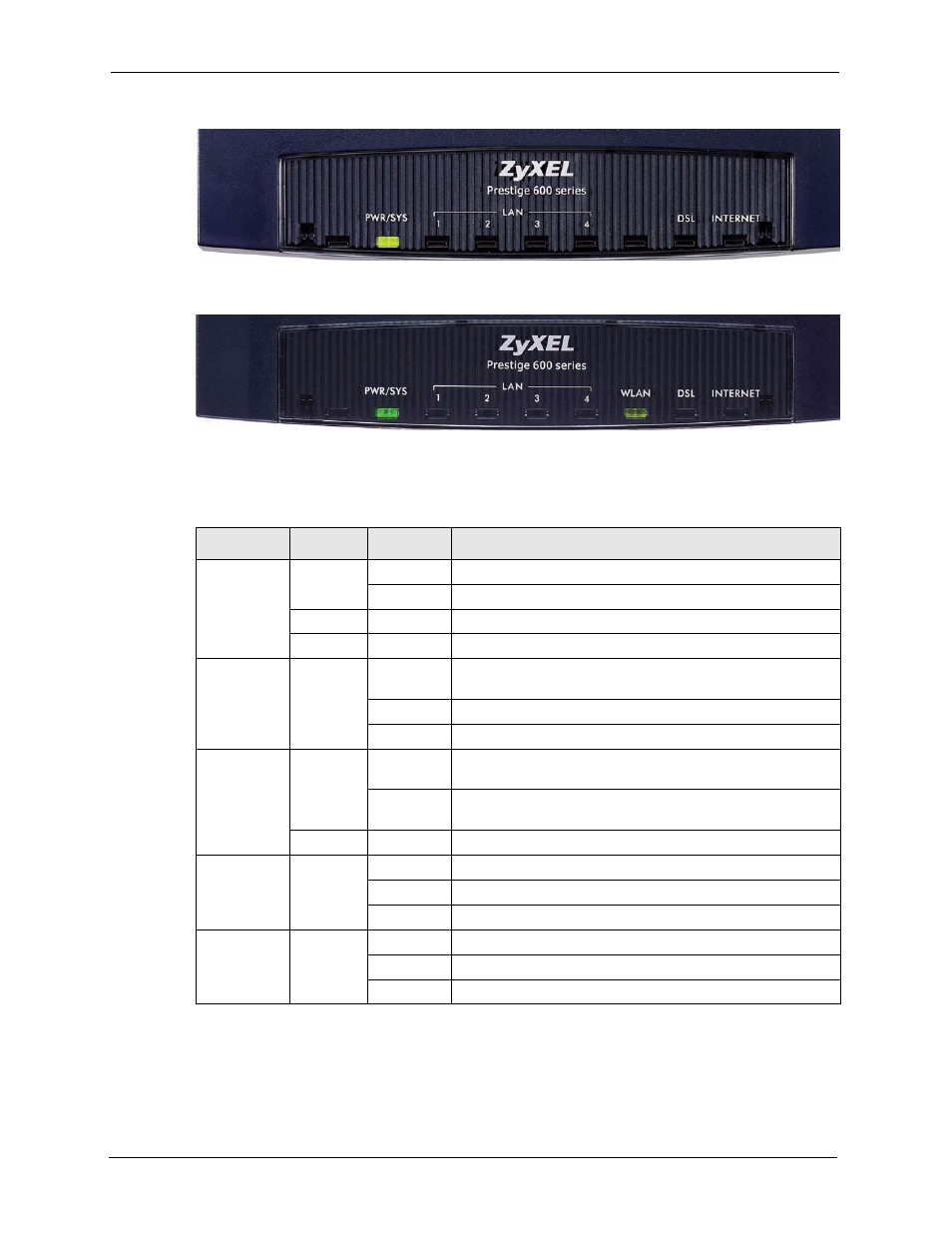

Figure 3 P-660H-T FrontPanel LEDs

P-660HW-T FrontPanel LEDs

The following table describes the LEDs.

1.5 Hardware Connection

Refer to the Quick Start Guide for information on hardware connection.

Table 2 Front Panel LEDs

LED

COLOR

STATUS

DESCRIPTION

PWR/SYS

Green

On

The Prestige is receiving power and functioning properly.

Blinking

The Prestige is rebooting or performing diagnostics.

Red

On

Power to the Prestige is too low.

Off

The system is not ready or has malfunctioned.

LAN

Green

On

The Prestige has a successful 10/100Mb Ethernet

connection.

Blinking

The Prestige is sending/receiving data.

Off

The LAN is not connected.

WLAN (P-

660HW only)

Green

On

The Prestige is ready, but is not sending/receiving data

through the wireless LAN.

Blinking

The Prestige is sending/receiving data through the wireless

LAN.

Off

The wireless LAN is not ready or has failed.

DSL

Green

On

The DSL line is up.

Blinking

The Prestige is initializing the DSL line.

Off

The DSL line is down.

INTERNET

Green

On

The Internet connection is up.

Blinking

The Prestige is sending/receiving data.

Off

The Internet connection is down.
