Page 105
P-660H/HW-T Series User’ Guide
Chapter 7 Network Address Translation (NAT) Screens
104

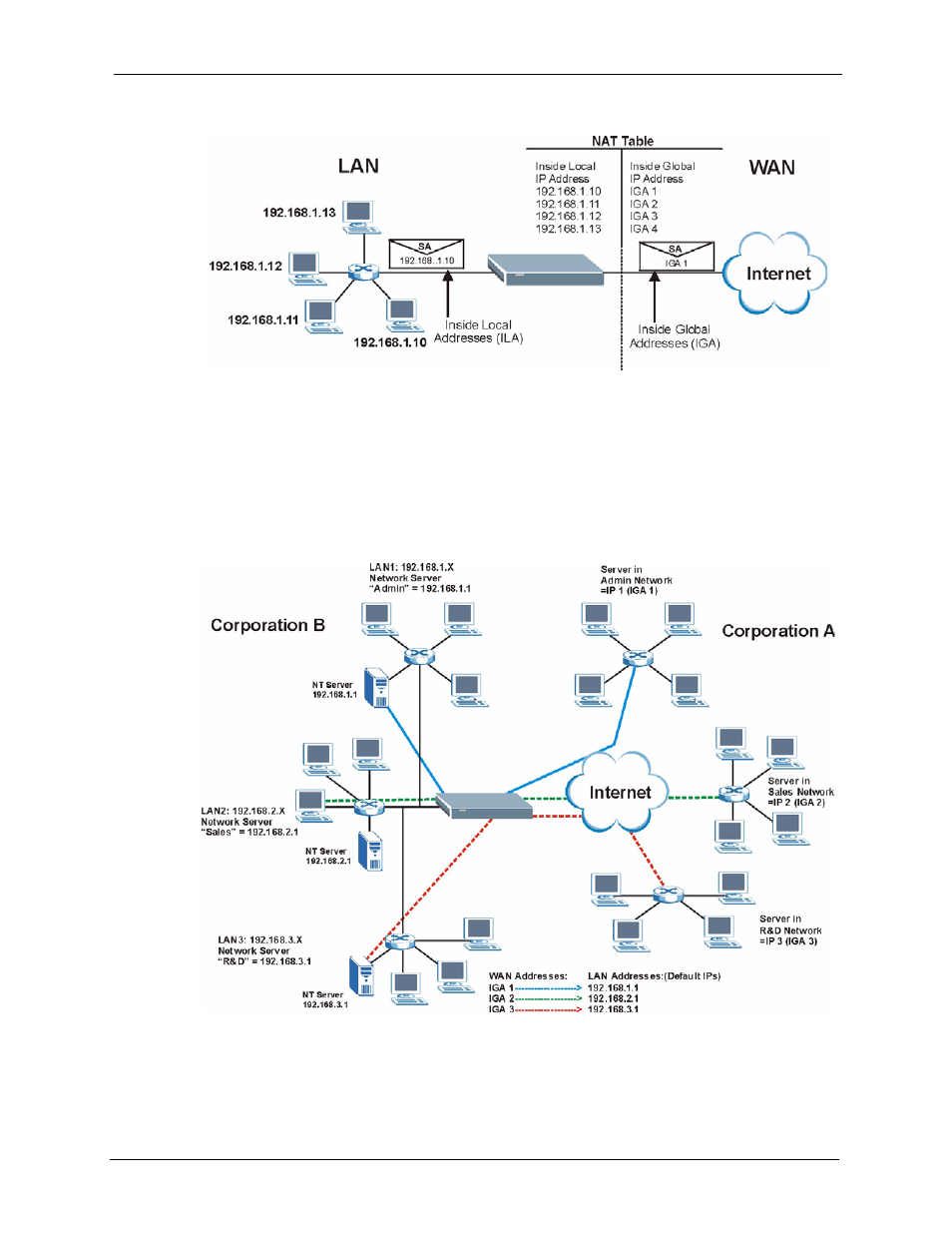

Figure 38 How NAT Works
7.1.4 NAT Application
The following figure illustrates a possible NAT application, where three inside LANs (logical
LANs using IP Alias) behind the Prestige can communicate with three distinct WAN
networks. More examples follow at the end of this chapter.
Figure 39 NAT Application With IP Alias
