Controles y conectores del panel

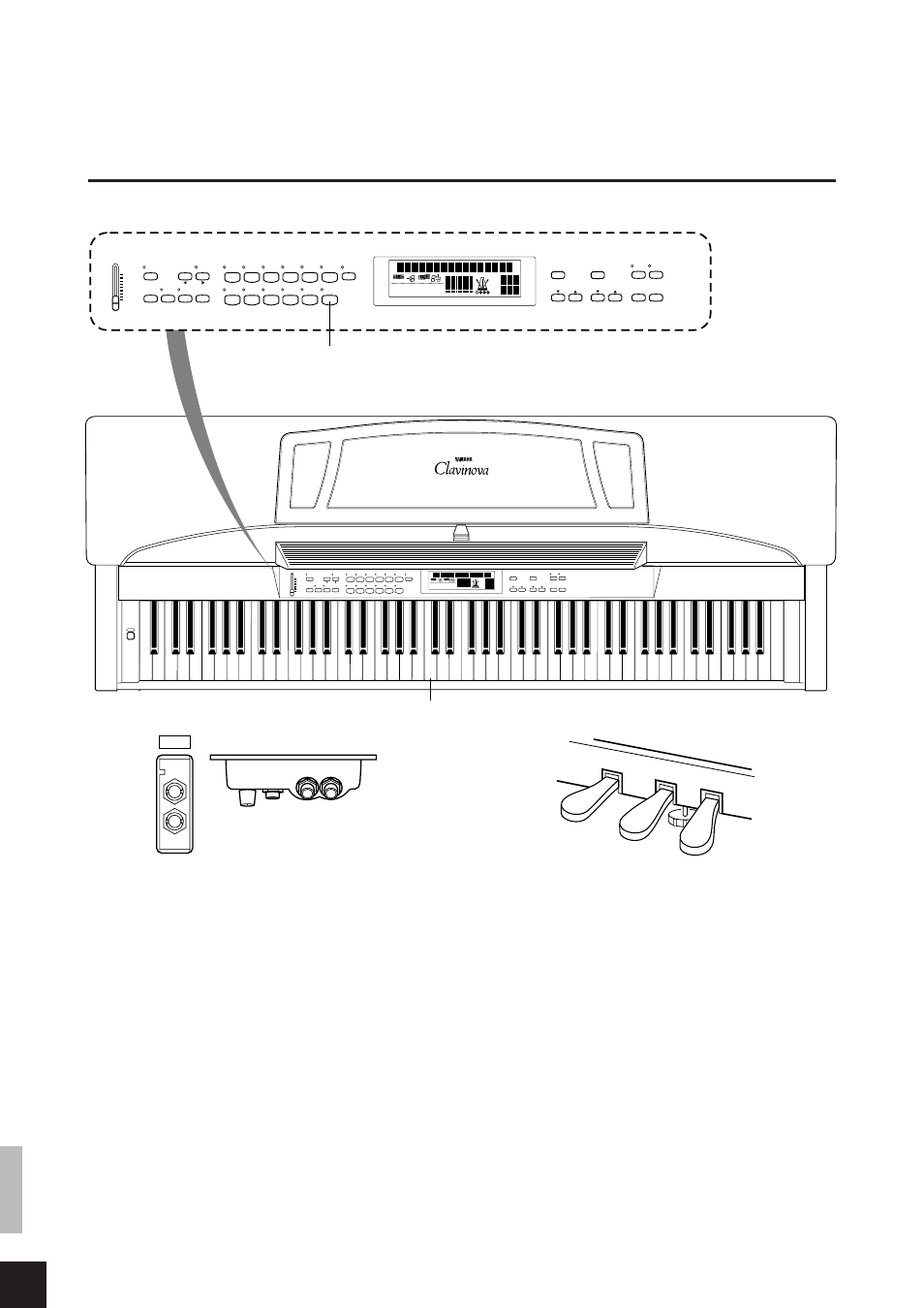

Panel frontal
CLP-811/611 Controles y conectores del panel
POWER
MASTER VOLUME
FUNCTION TRANSPOSE SPLIT VARIATION PIANO 1 PIANO 2 CLAVI.TONE E.PIANO 1 E.PIANO 2
VIBES STRINGS CHOIR
HARPSI-
CHORD
PIPE ORGAN ORGAN COMBINATION BASS BRILLIANCE REVERB EFFECT TOUCH
MAX
MIN
METRONOME
TEMPO
– / NO + / YES
SONG SELECT START/ STOP REC
CLP-811 STEREO SAMPLING
RECORDER
1 2 DEMO/ PIANO SONG
TRANSPOSE
BRILLIANCE REVERB EFFECT TOUCH
MELLOW NORMAL BRIGHT ROOM HALL 1 HALL 2 STAGE
CHORUS SYMPHONIC TREMOLO ECHO
SONG MEASURE
TEMPO
SPLIT HARD MEDIUM SOFT FIXED
MASTER VOLUME
FUNCTION TRANSPOSE SPLIT VARIATION PIANO 1 PIANO 2 CLAVI.TONE E.PIANO 1 E.PIANO 2
VIBES STRINGS CHOIR
HARPSI- CHORD
PIPE ORGAN ORGAN COMBINATION BASS BRILLIANCE REVERB EFFECT TOUCH
MAX
MIN
METRONOME
TEMPO
– / NO + / YES
SONG
SELECT
START/
STOP REC
RECORDER
1 2 DEMO/
PIANO SONG
TRANSPOSE
BRILLIANCE REVERB EFFECT TOUCH
MELLOW NORMAL BRIGHT
ROOM HALL 1 HALL 2 STAGE
CHORUS SYMPHONIC TREMOLO ECHO
SONG MEASURE
TEMPO
SPLIT
HARD MEDIUM SOFT FIXED
1
A-1 B-1 C0 D0 E0 F0 G0 A0 B0 C1 D1 E1 F1 G1 A1 B1 F2 G2 A2 B2 C3 D3 E3 F3 G3 A3 B3 C4 D4 E4 F4 G4 A4 B4 C5 D5 E5 F5 G5 A5 B5 C6 D6 E6 F6 G6 A6 B6 C7 C2 E2 D2
6
2
3 45 0 A C E
G B
789 D F HI
(CLP-811)
This button exists on the CLP-811 but not on the CLP-611.
All other panel buttons are common to both models.
Middle C
1 [POWER] ................................... página 3
2 [MASTER VOLUME] .......................... 3
3 [FUNCTION] ...................................... 24
4 [TRANSPOSE] / [t
t t t t] .......................... 17
5 [SPLIT] / [s s s s s]........................................ 18
6 [BRILLIANCE] .................................... 15
7 [REVERB]............................................. 15
8 [EFFECT] .............................................. 15
9 [TOUCH] .............................................. 16
0 Selectores de voz ................................ 13
A [VARIATION] ..................................... 14
B Pantalla (LCD) ...................................... 6
C [METRONOME]................................. 19
D Tempo [▲] [▼] [-/NO] [+/YES]
........................................................ 6,19,26
E [DEMO/PIANO SONG] ..................... 8
F Selección de canción [▲] [▼] ........... 26
G GRABADORA [1] [2]......................... 20
J
K
L
Este botón existe en el modelo CLP-811, no así en el CLP-611.
El resto de botones del panel son comunes a ambos modelos.
DO central
PHONES MIC. MIC. VOL.
MIN MAX
M N
O
O
PHONES
CLP-811 CLP-611
