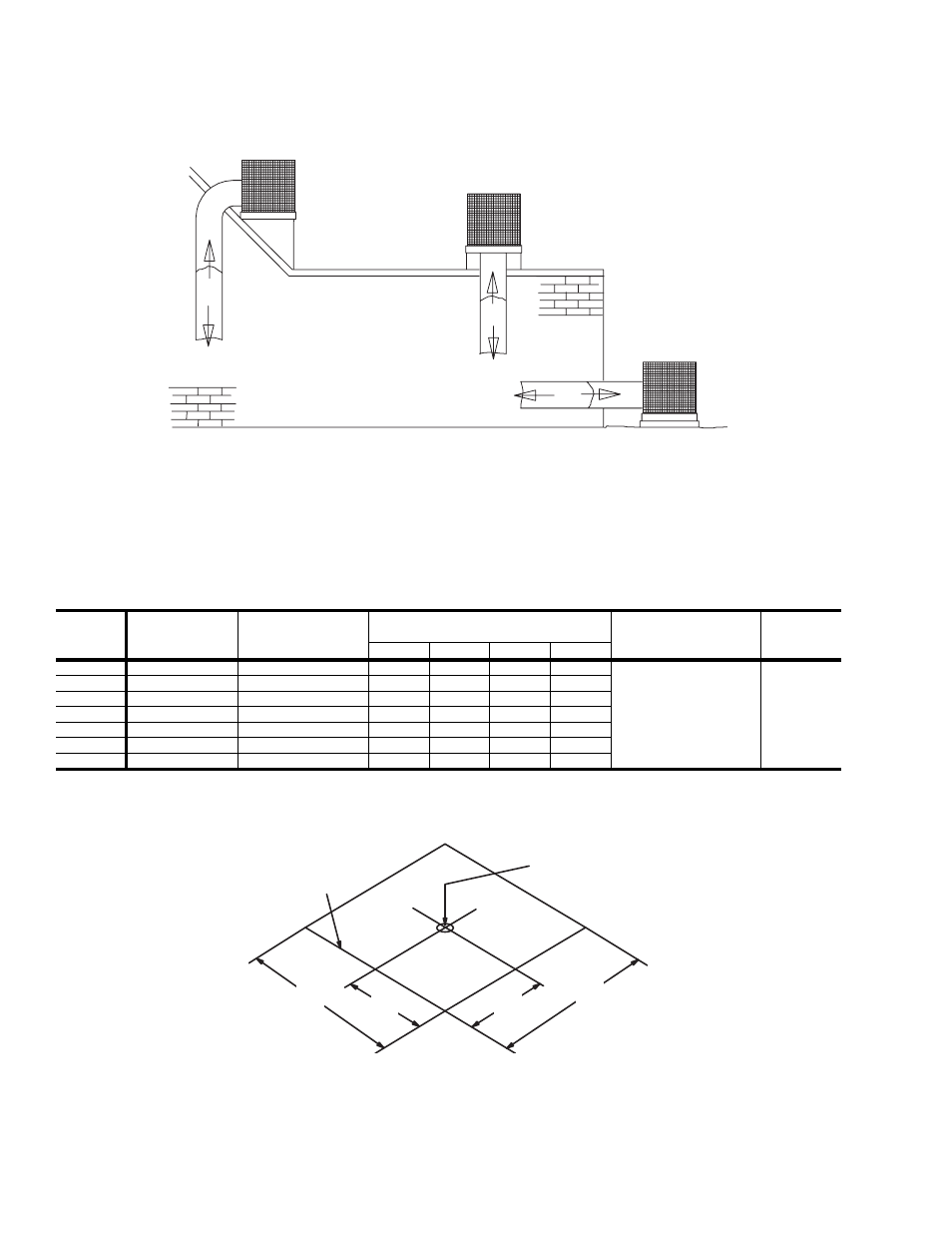

FIGURE 10 - TYPICAL DUCT APPLICATIONS
FIGURE 11 - UNIT CENTER OF GRAVITY
R O O F C U R B
I N S T A L L A T I O N
R E A R D U C T
R O O F C U R B
I N S T A L L A T I O N
B O T T O M D U C T
S L A B O N G R O U N D
I N S T A L L A T I O N
TABLE 17: UNIT WEIGHTS AND CENTER OF GRAVITY
UNIT
SIZE
SHIPPING
WEIGHT
(lbs.)
OPERATING
WEIGHT
(lbs.)
CORNER WEIGHTS
(location, lbs.)
ECONOMIZER
(lbs.)
ROOF
CURB
(lbs.) “A” “B” “C” “D”
018 365 360 91 88 89 92
40
8” - 70
14” - 75
024 365 360 91 88 89 92
030 395 390 98 95 96 99
036 400 395 100 96 98 101
042 415 410 104 100 101 105
048 475 470 119 115 116 120
060 480 475 120 116 117 122
"A"
"B"
"C"
"D"
49-1/8
25 25
47-1/4
FRONT
OF
UNIT
CENTER OF
GRAVITY
